SNAP FEMALE INSET SCREW | size S | magnetic fastener

Article No.: 73071

€3.90/piece

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

SNAP FEMALE INSET SCREW | size S | magnetic fastener

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP series includes the most versatile fasteners from Fidlock and ranges from small, inconspicuous fasteners in size S to extra-sturdy workhorses in size L. There are models for riveting, screwing on and off, sewing on, with strap attachments or with tube clamps. All SNAP fasteners consist of a MALE part and a FEMALE counterpart in sizes S, M or L. Depending on the intended use, parts of one size can be combined with each other. Each part must be ordered separately.

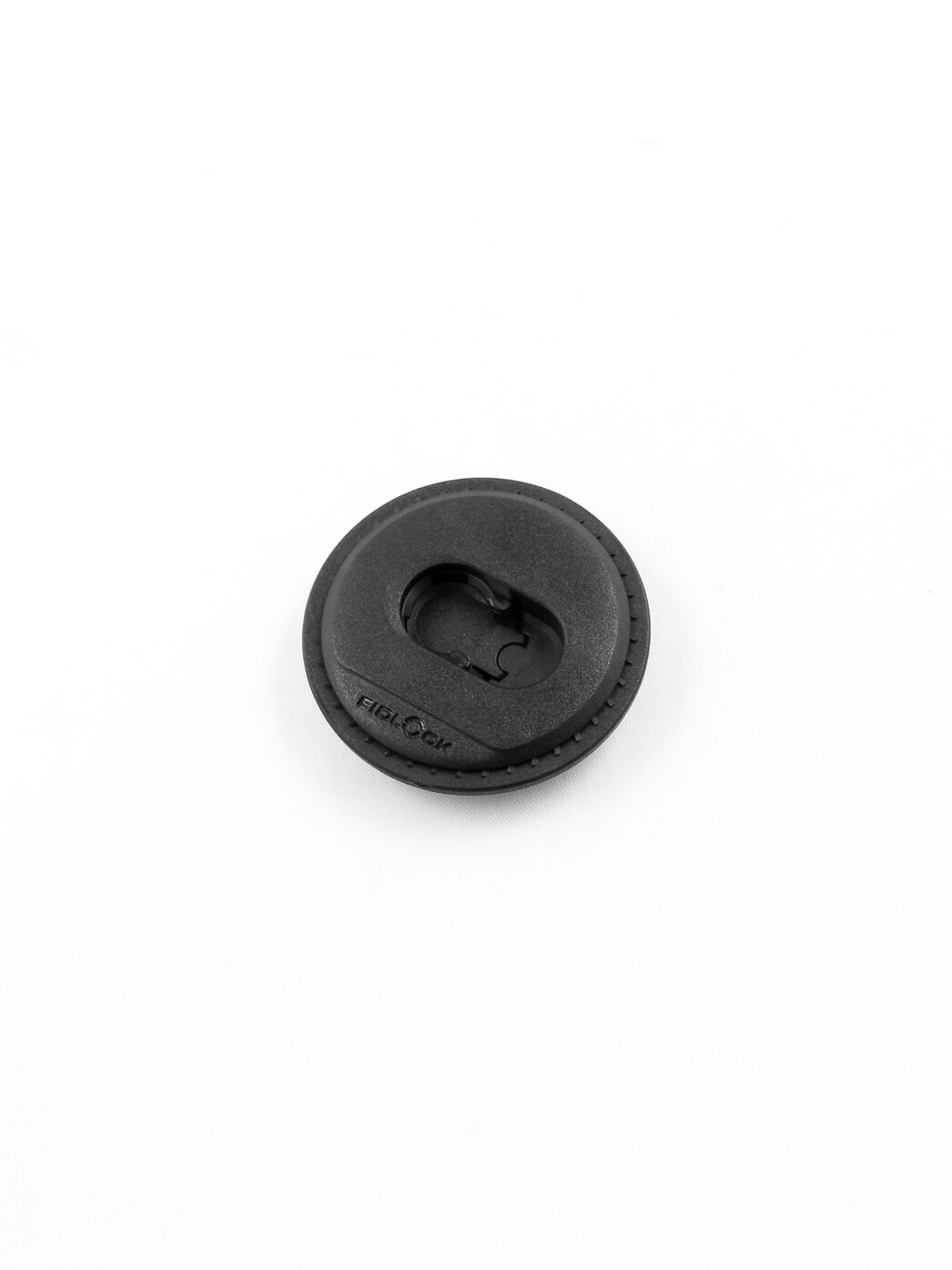

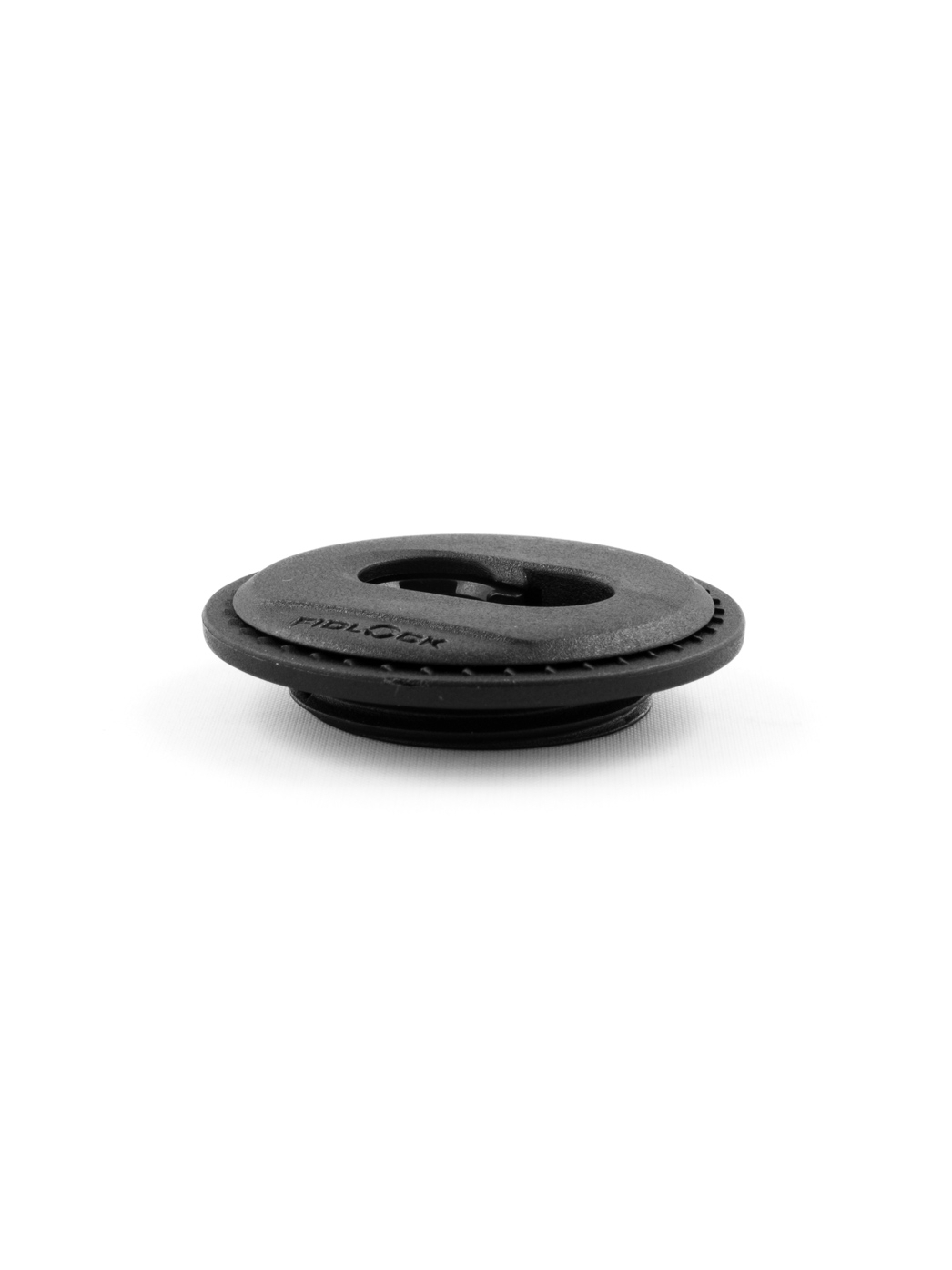

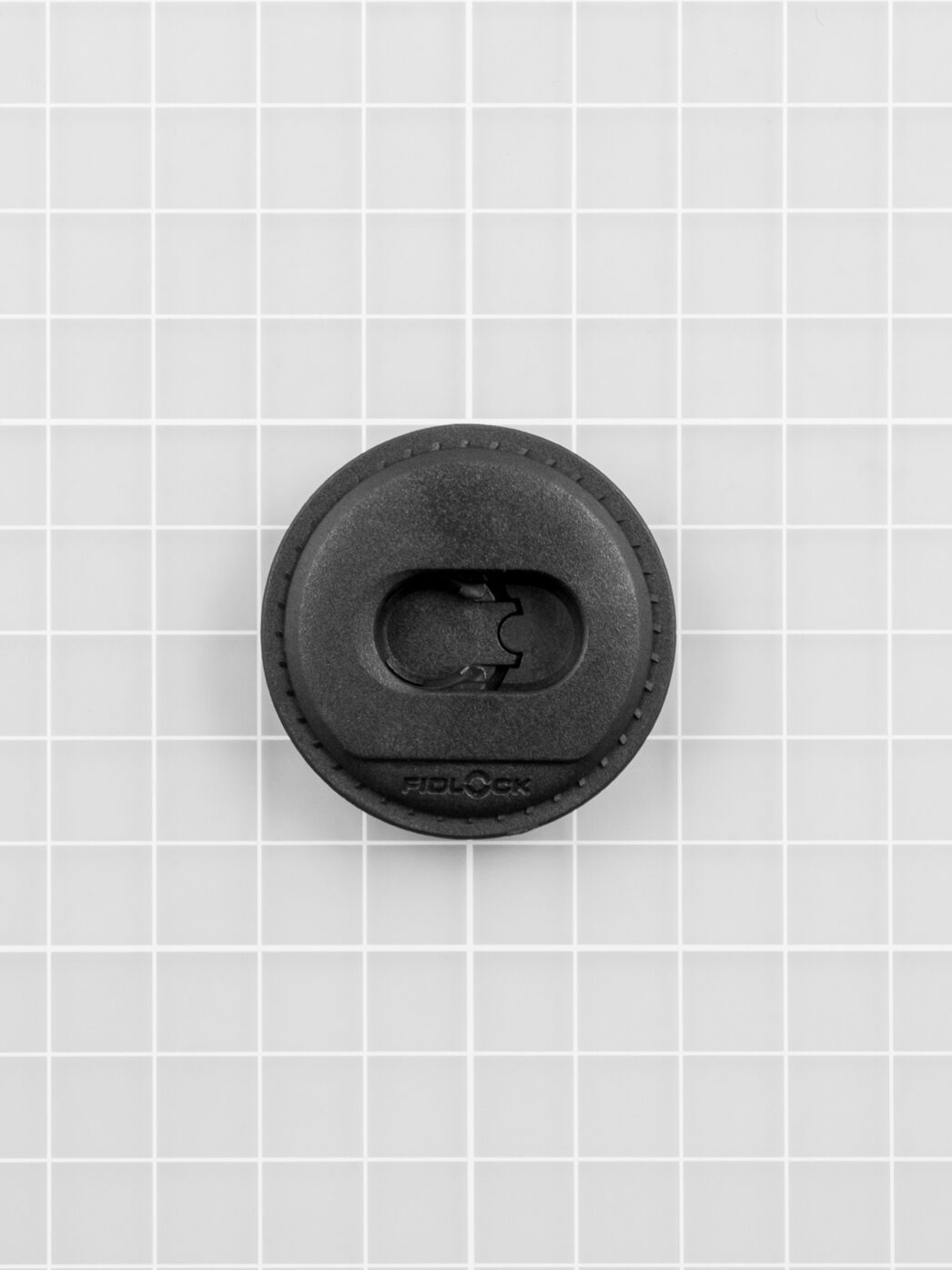

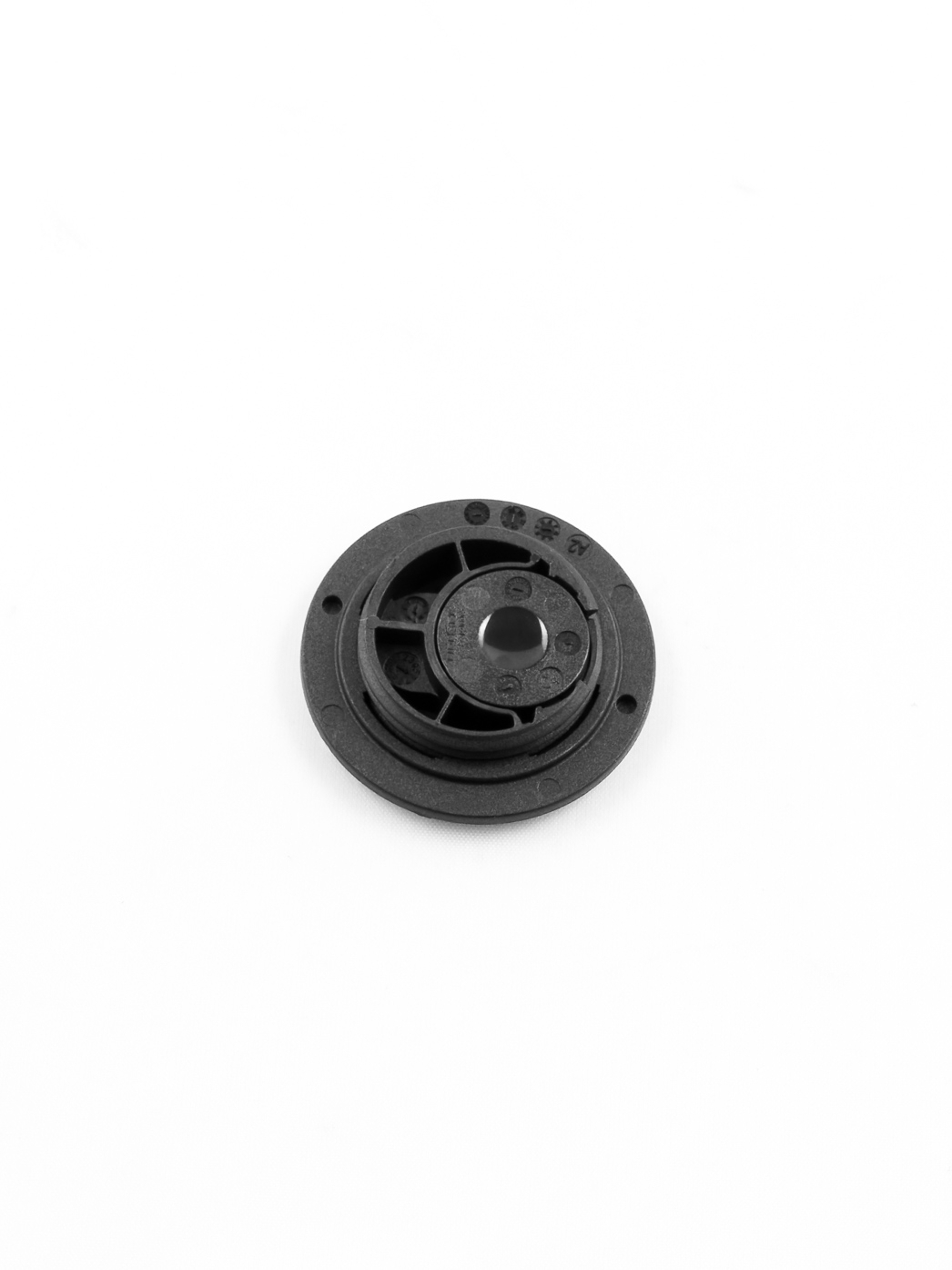

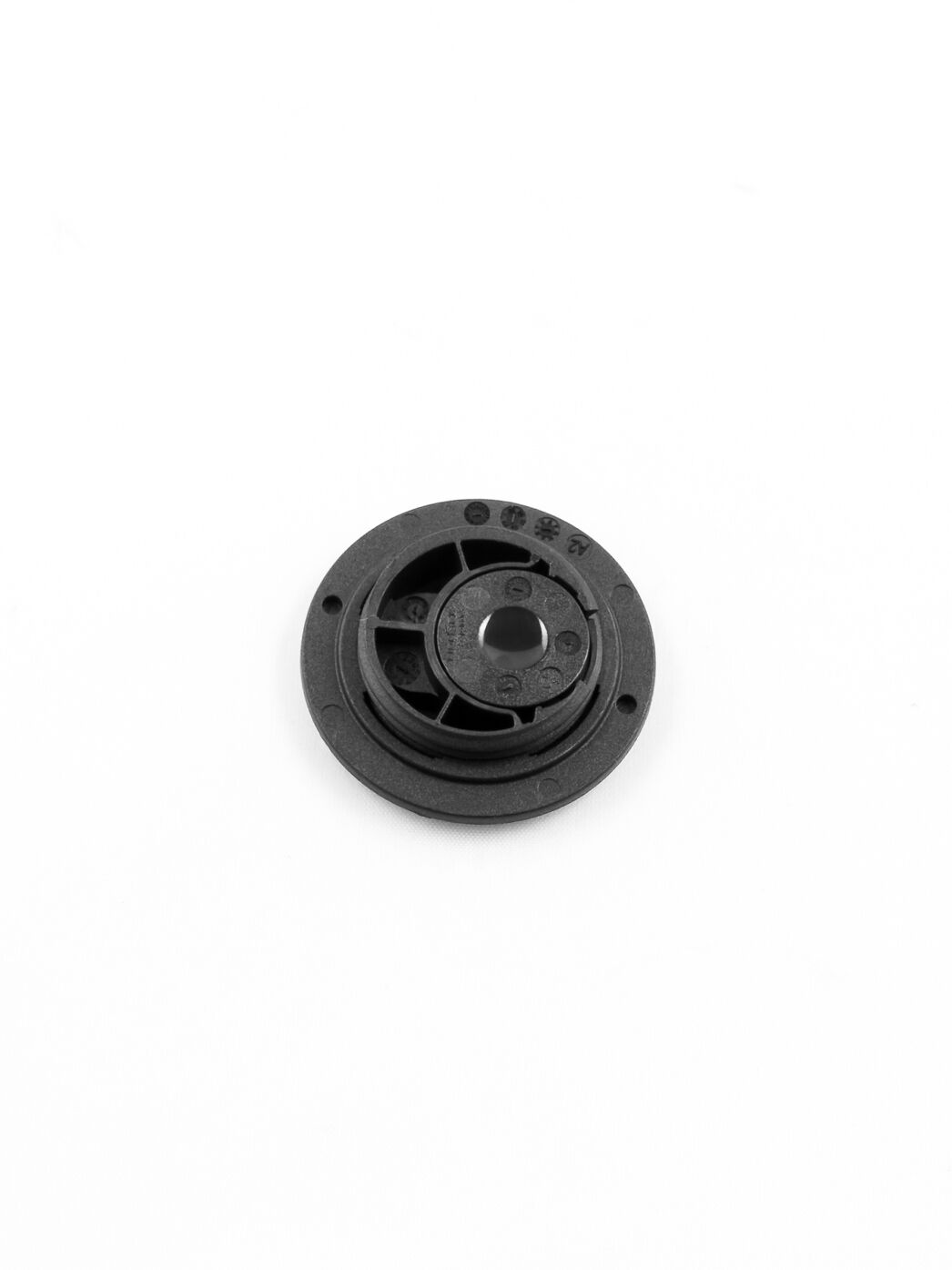

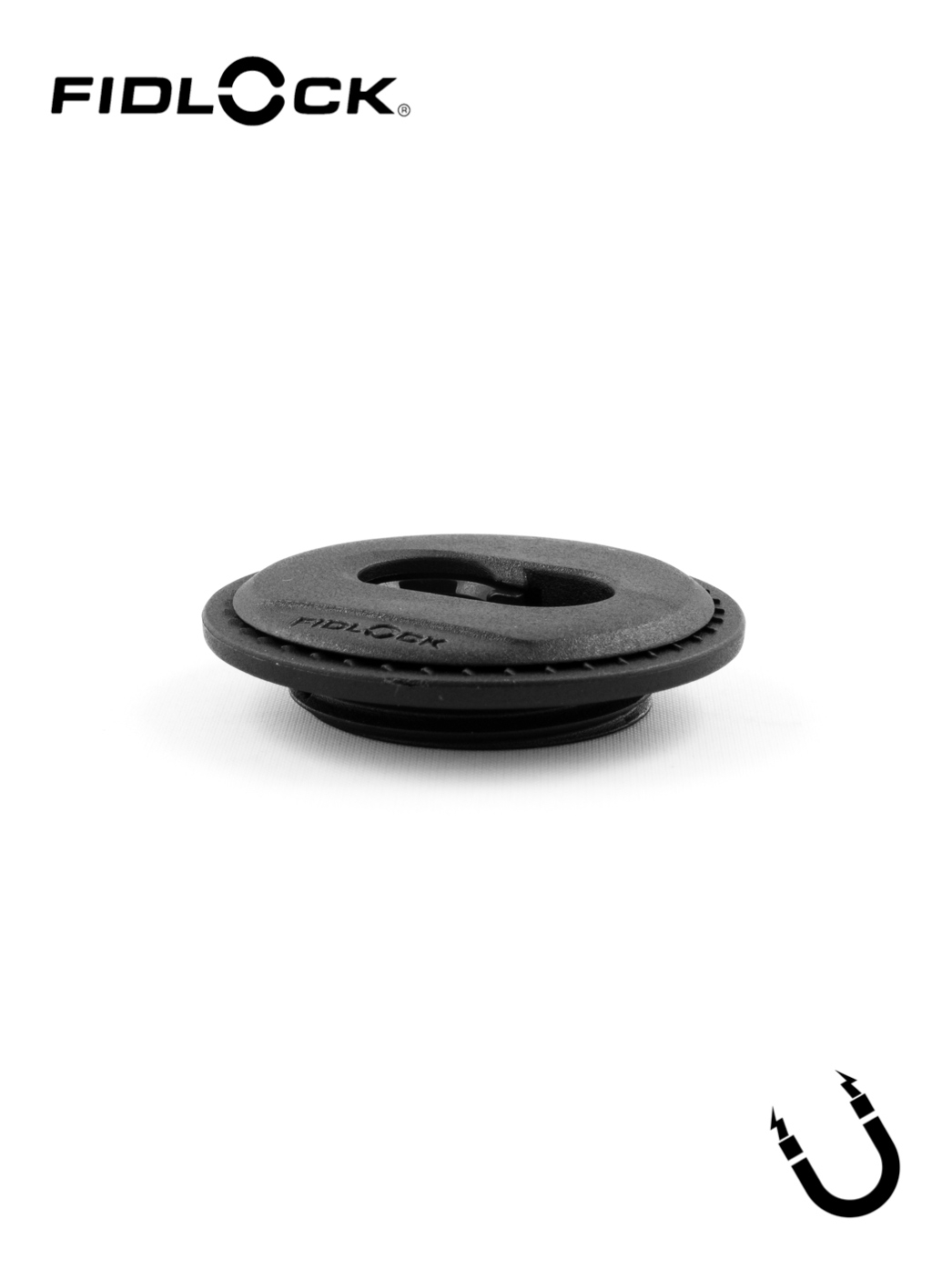

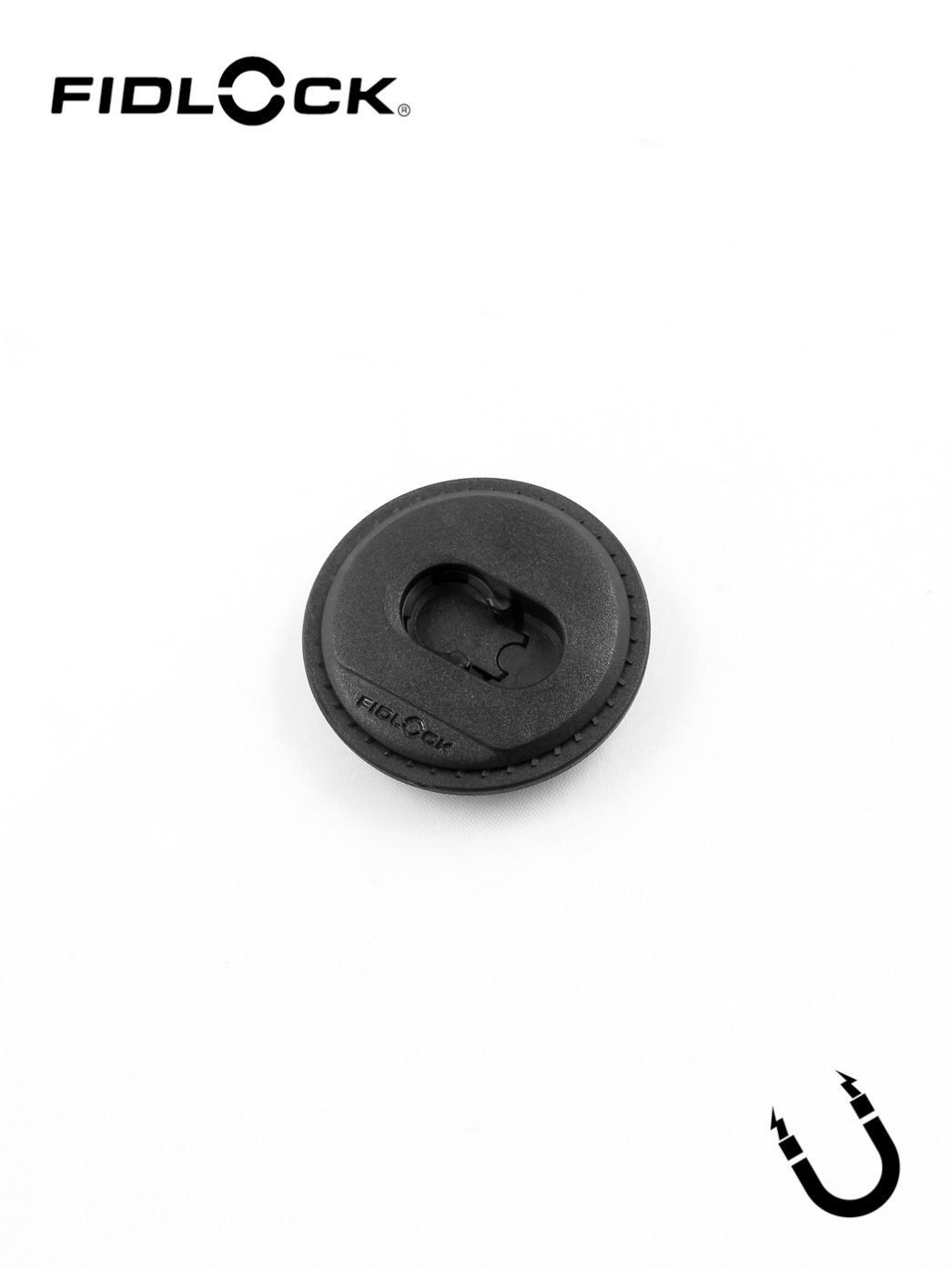

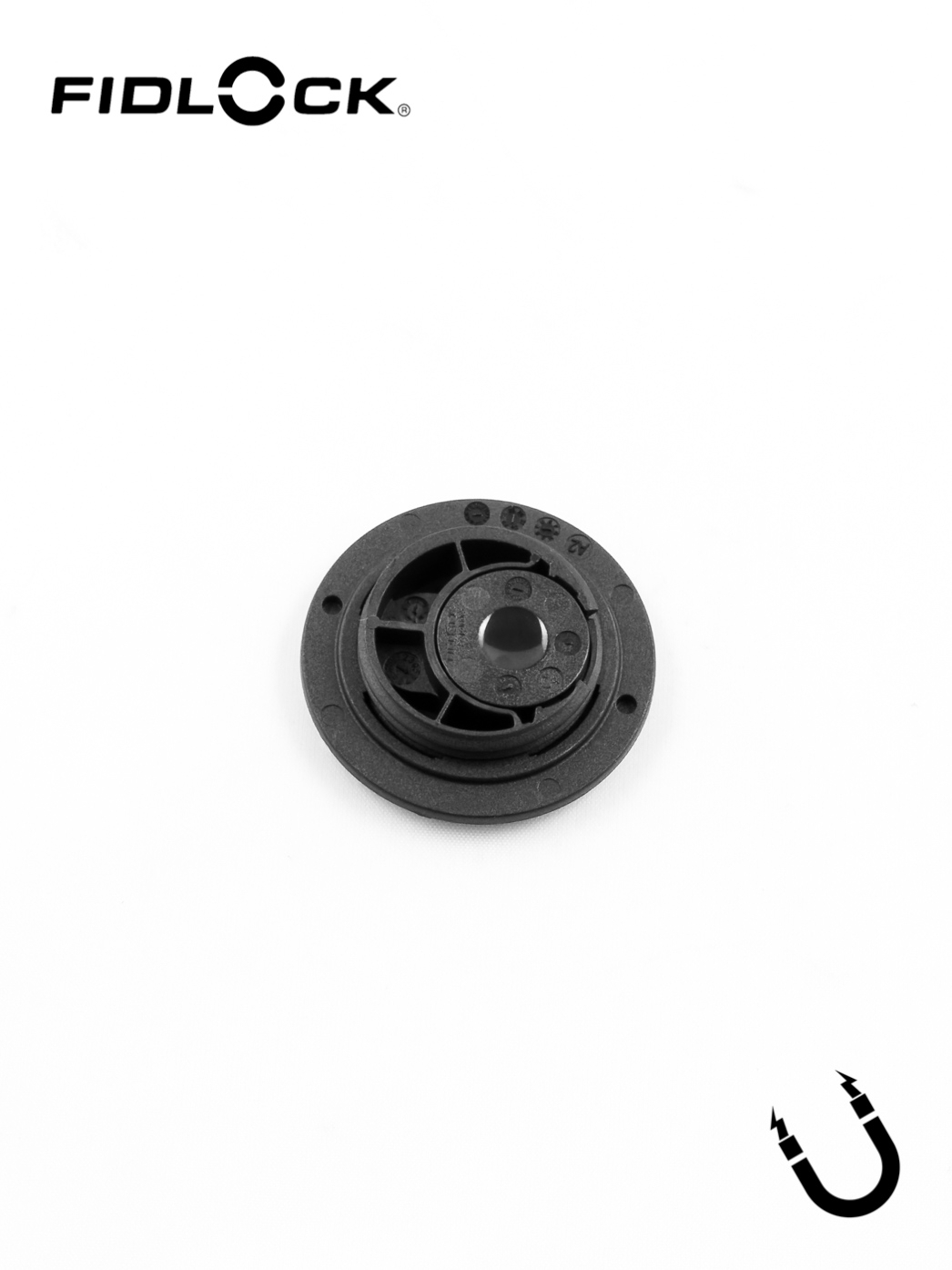

The SNAP FEMALE INSET SCREW in size S is a female counterpart to the SNAP fasteners in size S from Fidlock. The SNAP FEMALE INSET SCREW consists of two parts and is fixed by screwing the counterplate with an internal thread. This version is suitable for materials such as fabrics, straps, tarpaulins, or sheet material with a total thickness of up to approx. 4.5 mm. Unlike the normal FEMALE SCREW, the INSET version is completely recessed, resulting in a flush and smooth finish from the outside. To achieve this, it is built higher on the inside. All counterparts that you can combine with the SNAP FEMALE INSET SCREW, size S, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Installation
SNAP fasteners can be easily installed without any additional tools. For easier tightening of the base plate, we offer the “TOOL 3”, which makes it easier to screw the parts together. To screw the parts together, a hole with a diameter of 26 mm must be cut or punched into the base material.
Attention magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on very sensitive devices or people.
Please note
The MALE and FEMALE parts of the SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Weight (g/pcs)
6,5g/pcs
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodymium magnets
Components Material
Nylon, Magnet
Size
S
Base body diameter
35 mm
Screw ring diameter
39 mm
Total height
9 mm
Punch hole diameter
26 mm
Max. material thickness
4.5 mm
Application
Connectors
