SNAP MALE RETRACTABLE ANCHOR | size S | magnetic fastener

Article No.: 73070

€6.20/piece

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

SNAP MALE RETRACTABLE ANCHOR | size S | magnetic fastener

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP series includes the most versatile fasteners from Fidlock and ranges from small, inconspicuous fasteners in size S to extra-sturdy workhorses in size L. There are models for riveting, screwing on and off, sewing on, with strap attachments or with tube clamps. All SNAP fasteners consist of a MALE part and a FEMALE counterpart in sizes S, M or L. Depending on the intended use, parts of one size can be combined with each other. Each part must be ordered separately.

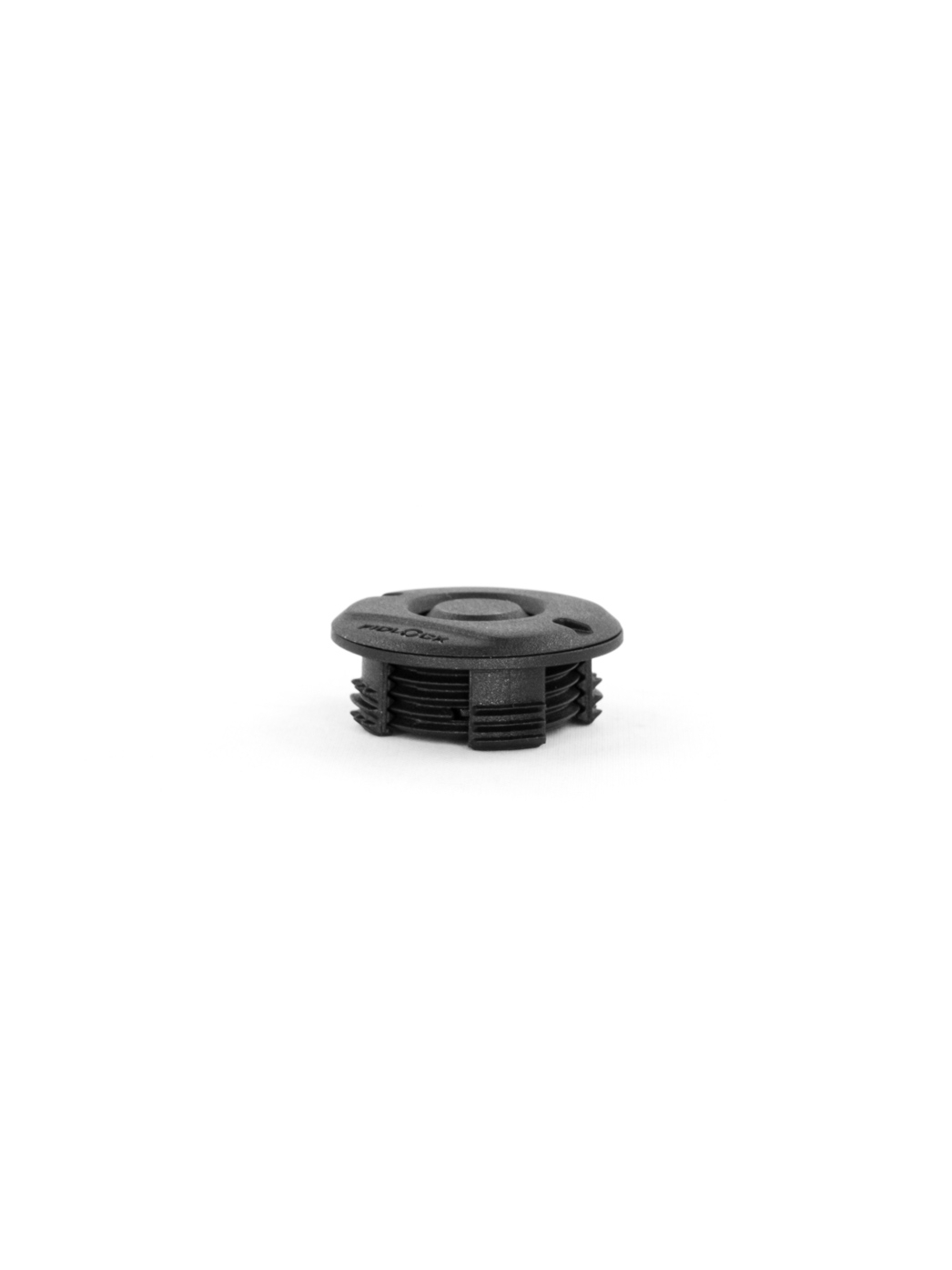

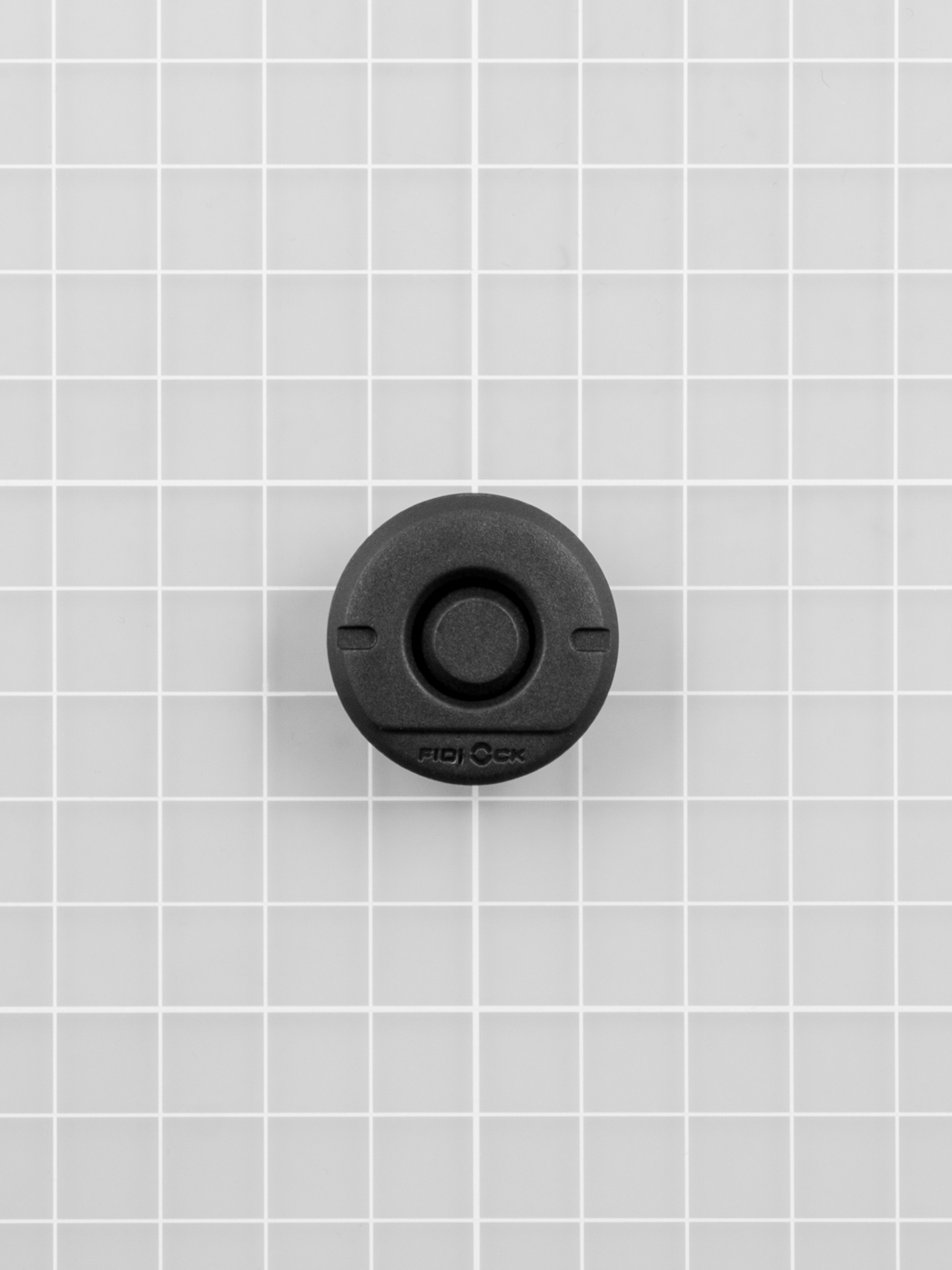

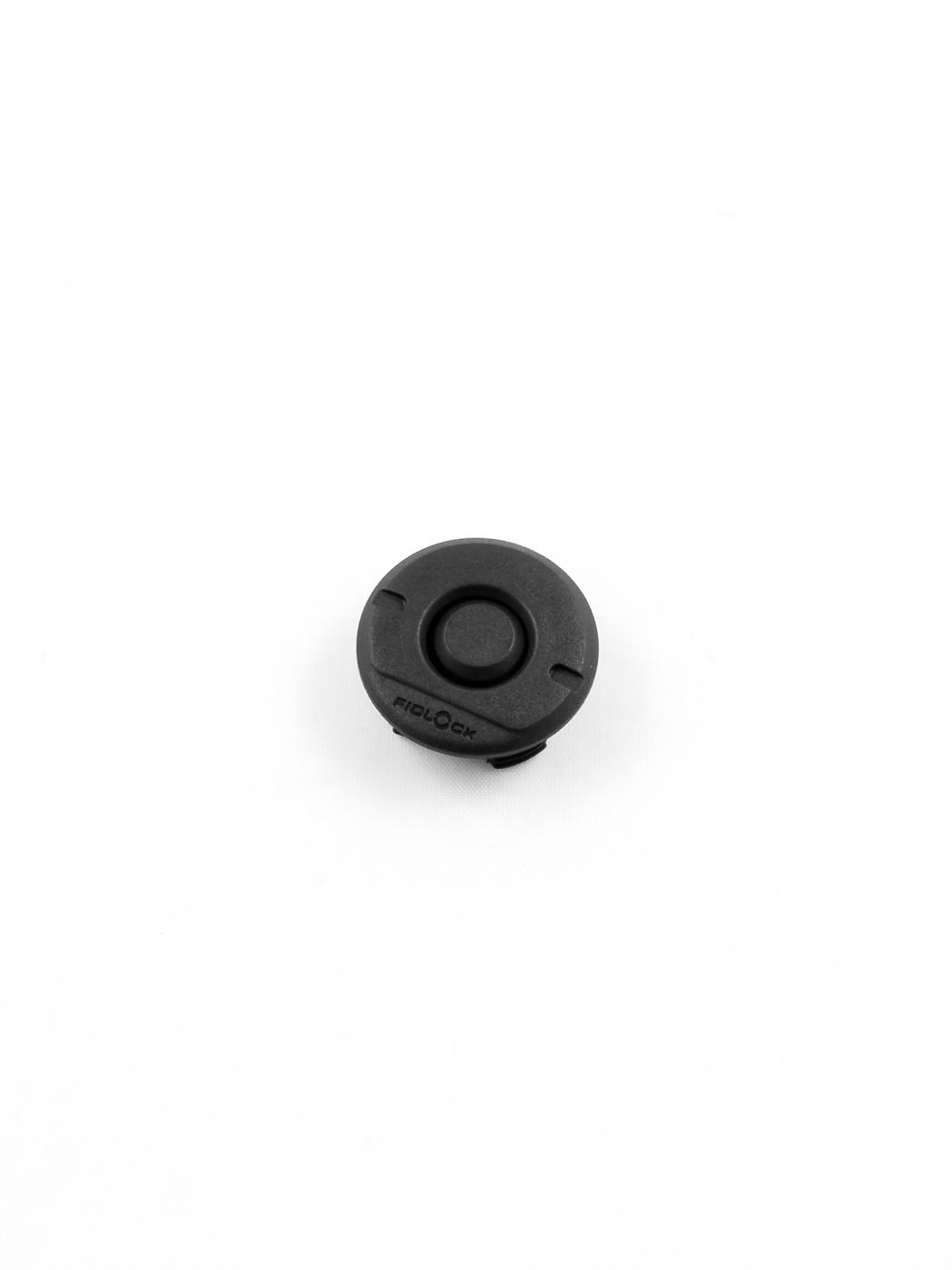

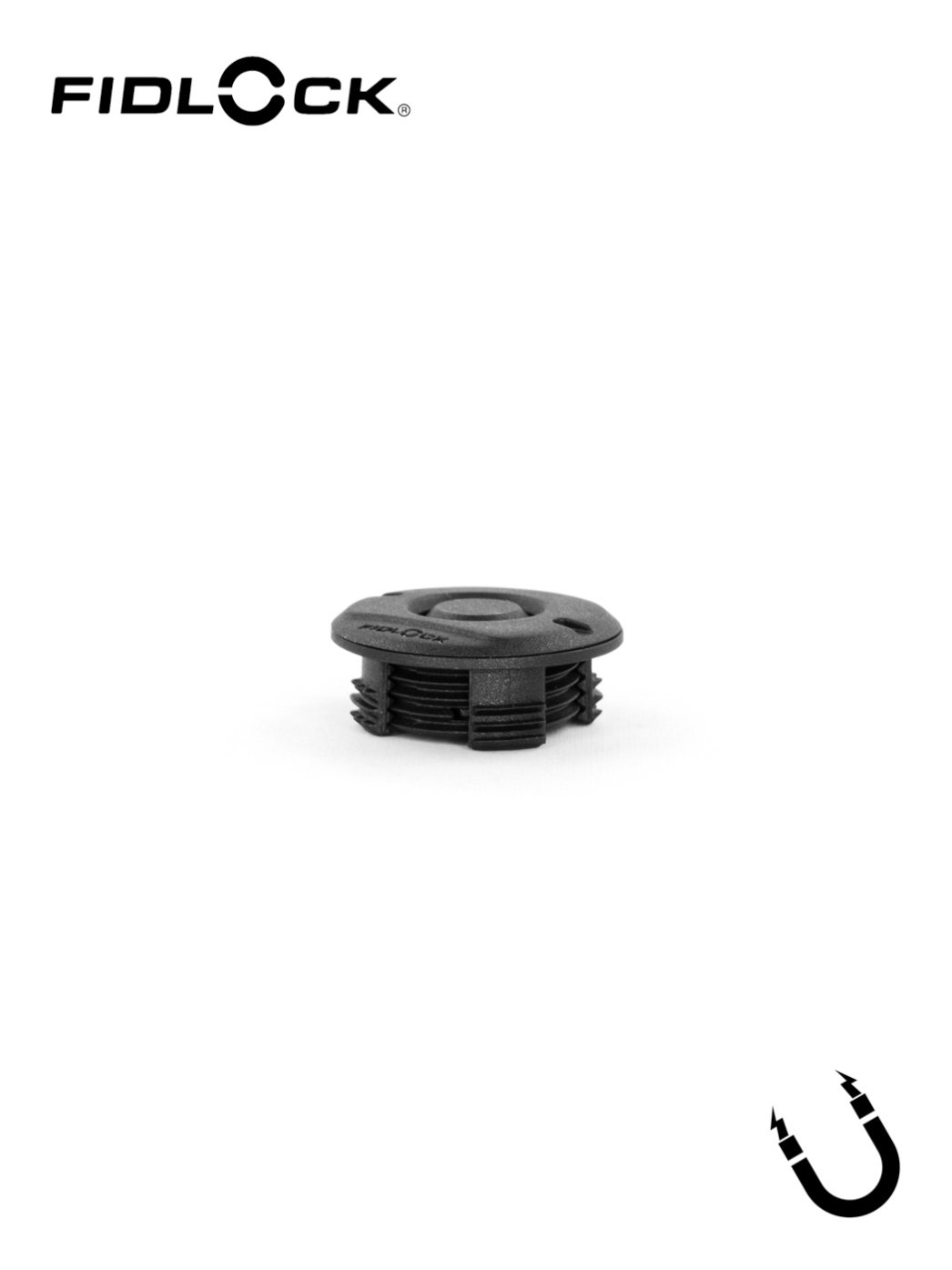

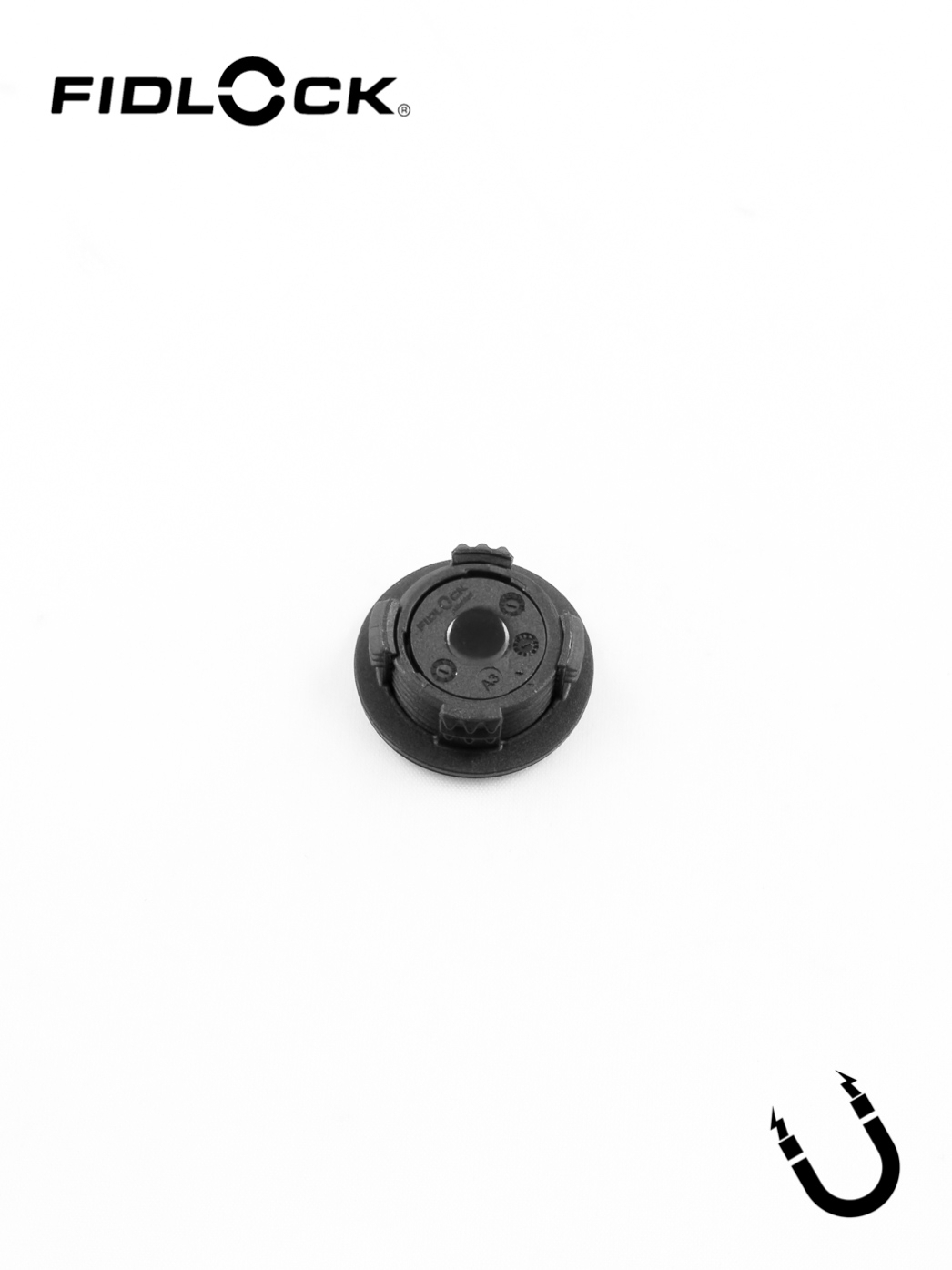

The SNAP MALE RETRACTABLE ANCHOR in size S is a male counterpart to the SNAP fasteners in size S from Fidlock. The SNAP MALE RETRACTABLE ANCHOR consists of 2 parts and works like a dowel. A hole with a diameter of 22 mm is drilled or punched into the desired material and the screw ring is inserted. Then screw in the actual base body, which pushes the hooks of the screw ring outwards, thus securing the ANCHOR reliably. The SNAP MALE RETRACTABLE ANCHOR is therefore more suitable for thicker materials such as wood.

In contrast to the normal MALE SCREW, the mushroom-shaped shaft for attaching is not fixed, but is held in place by a weak magnet at the bottom. This results in a flatter and more flush finish. When the SNAP MALE RETRACTABLE ANCHOR comes into proximity with a matching FEMALE counterpart, the shaft is pulled out and locks securely into place. After this process, the small magnet in the body of the RETRACTABLE ANCHOR pulls the shaft back in, leaving it as flat and flush as before. All counterparts that you can combine with the SNAP MALE RETRACTABLE ANCHOR, size S, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Installation
SNAP fasteners can be easily installed without any additional tools. To screw the SNAPs together, a hole with a diameter of 22 mm must be drilled or punched into the base material.
Attention magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on very sensitive devices or people.
Please note
The MALE and FEMALE parts of the SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Diameter
27 mm
Breaking Strength
2kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodymium magnets
Components Material
Nylon, Magnet
Size
S
Total height (extended)
11 mm (16mm)
Drill hole diameter
22 mm
Application
Connectors
