SNAP PULL FEMALE 20 | size S | magnetic fastener, 20mm

Article No.: 71311

€4.40/pieces

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

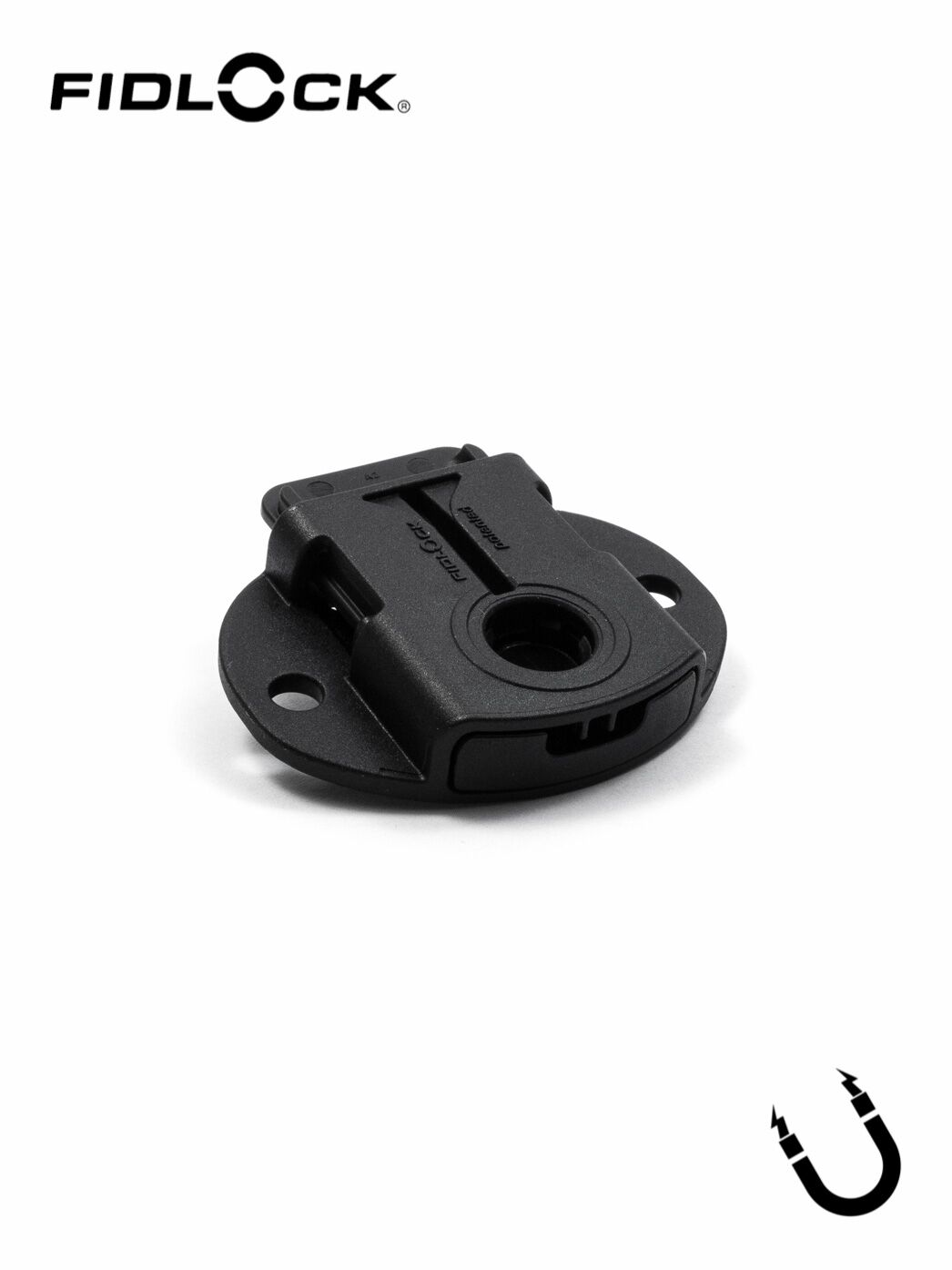

SNAP PULL FEMALE 20 | size S | magnetic fastener, 20mm

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP PULL fasteners are a combination of the SNAP MALE parts and a female part on which the fastener can be opened by pulling on a strap attachment.

The SNAP PULL FEMALE 20 in size S is opened by pulling on an attached strap. To close, simply bring the SNAP PULL FEMALE 20 S close to a size S SNAP MALE counterpart. They snap together automatically thanks to the magnet inside and are held firmly together by a mechanical catch. The SNAP PULL FEMALE 20 S can either be riveted or screwed into the carrier material (rivets or screws are not included). All counterparts that you can combine with the SNAP PULL FEMALE 20, size S, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Warning
Magnets! The buckles are magnetic and should be used with care close to things or people that are sensitive to magnets.
Please note
The MALE and FEMALE parts of the SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Thickness
11mm
Weight (g/pcs)
10,8g/pcs
Breaking Strength
20kg
Material
Polyamide (PA) (nylon) 66GF glass fiber reinforced nylon, Neodymium magnets
Components Material
Nylon, Magnet
Size
S
Height
48mm
Width
53mm
Material Thickness of Holes for rivets
3mm
Diameter Holes for rivets
5mm
Suitable Webbing Width
20mm
Application
For Webbing, Connectors
