SNAP MALE SCREW MID | size S | magnetic fastener for 1,4-2,9mm material

Article No.: 72002

€2.40/pieces

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

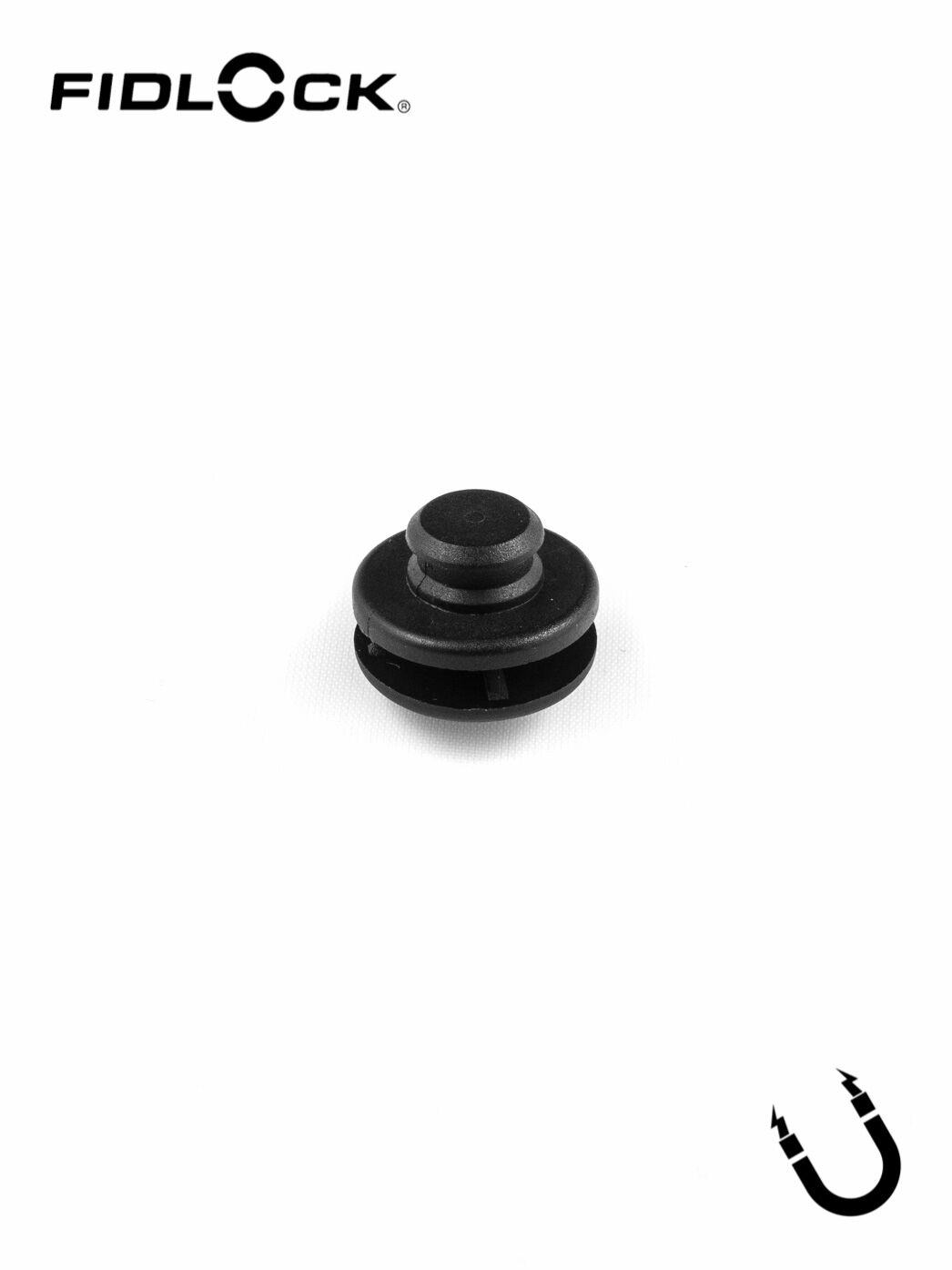

SNAP MALE SCREW MID | size S | magnetic fastener for 1,4-2,9mm material

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP series includes the most versatile fasteners from Fidlock and ranges from small, inconspicuous fasteners in size S to extra-sturdy workhorses in size L. There are models for riveting, screwing on and off, sewing on, with strap attachments or with tube clamps. All SNAP fasteners consist of a MALE part and a FEMALE counterpart in sizes S, M or L. Depending on the intended use, parts of one size can be combined with each other. Each part must be ordered separately.

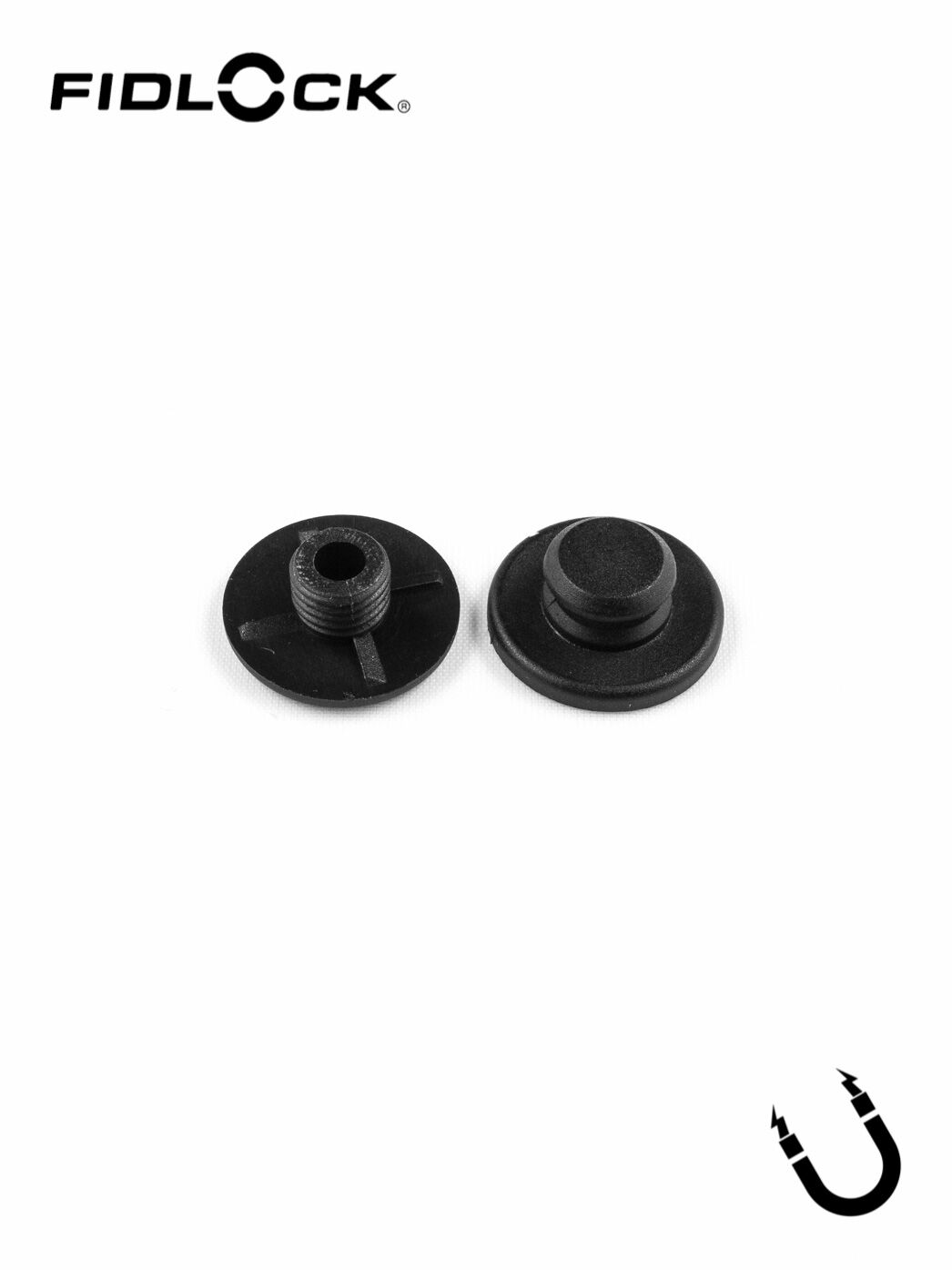

The SNAP MALE SCREW MID, size S is the male counterpart to many of the female SNAP fasteners in size S from Fidlock. The SNAP MALE SCREW consists of 2 parts and is fixed by screwing the counter plate with an internal thread. The MID version is suitable for materials such as fabrics, tapes, tarpaulins or sheet material with a thickness of 1.4 mm to 2.9 mm. All counterparts that you can combine with the SNAP MALE SCREW, size S, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Installation
SNAP fasteners can be easily installed without any additional tools. For easier tightening of the base plate, we offer the “TOOL 3” tool, which makes it easier to screw the parts together. To screw the SNAPs size S together, a hole with a diameter of 8 mm must be cut or punched into the base material.
Attention magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on very sensitive devices or people.
Please note
The MALE and FEMALE parts of the SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Diameter
18,5mm
Weight (g/pcs)
2,36g/pcs
Breaking Strength
2kg
Material
Polyamide (PA) (nylon) 66GF glass fiber reinforced nylon, Neodymium magnets
Components Material
Nylon, Magnet
Size
S
Required Hole Diameter
8mm
On-fabric Height above fabric
8mm
Thickness Base plate
2mm
For material thickness
1,4-2,9mm
