SNAP PULL FEMALE 20 | size M | magnetic fastener, 20mm

Article No.: 71499

€5.50/piece

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

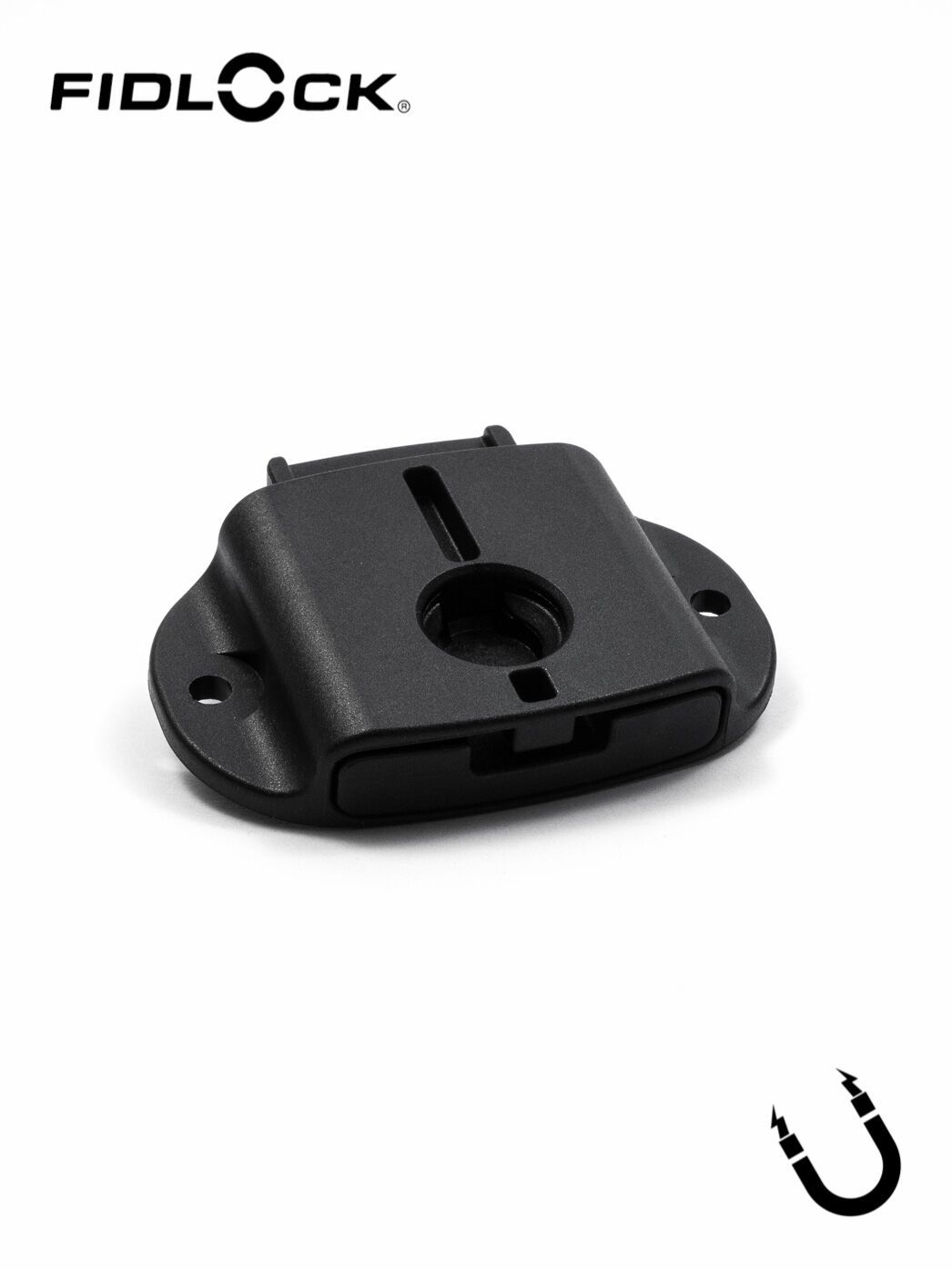

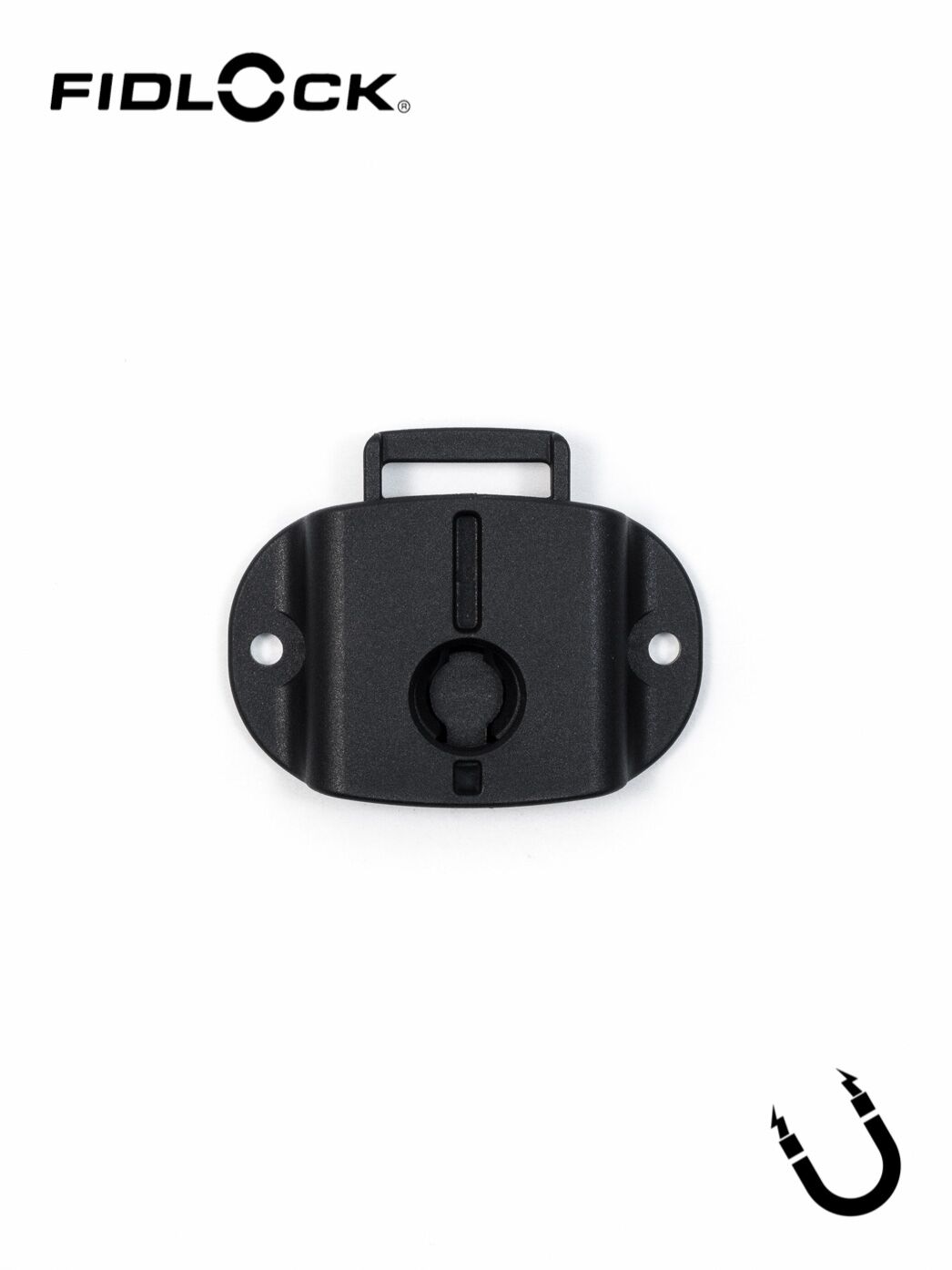

SNAP PULL FEMALE 20 | size M | magnetic fastener, 20mm

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality workmanship with robust, reliable materials.

The SNAP PULL fasteners are a combination of the SNAP MALE parts and a female part, which can be opened by pulling on a strap attachment.

The SNAP PULL FEMALE 20 in size M is opened by pulling on an attached strap. To close, simply bring the SNAP PULL FEMALE 20 M close to a SNAP MALE counterpart in size M. They snap together automatically thanks to the internal magnet and are held firmly together by a mechanical lock. The SNAP PULL FEMALE 20 M can either be riveted or screwed into the carrier material (rivets or screws are not included).



Short info

Stock Options
Standard Article
Country of Origin
China
Attention magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on very sensitive devices or people.
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Thickness
12mm
Weight (g/pcs)
13,6g/pcs
Breaking Strength
15kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodymium magnets
Components Material
Nylon, Magnet
Size
M
Height
48,5mm
Width
62mm
Material thickness of rivet holes
3mm
Diameter Holes for rivets
4mm
Suitable Webbing Width
20mm
Application
For Webbing, Connectors
