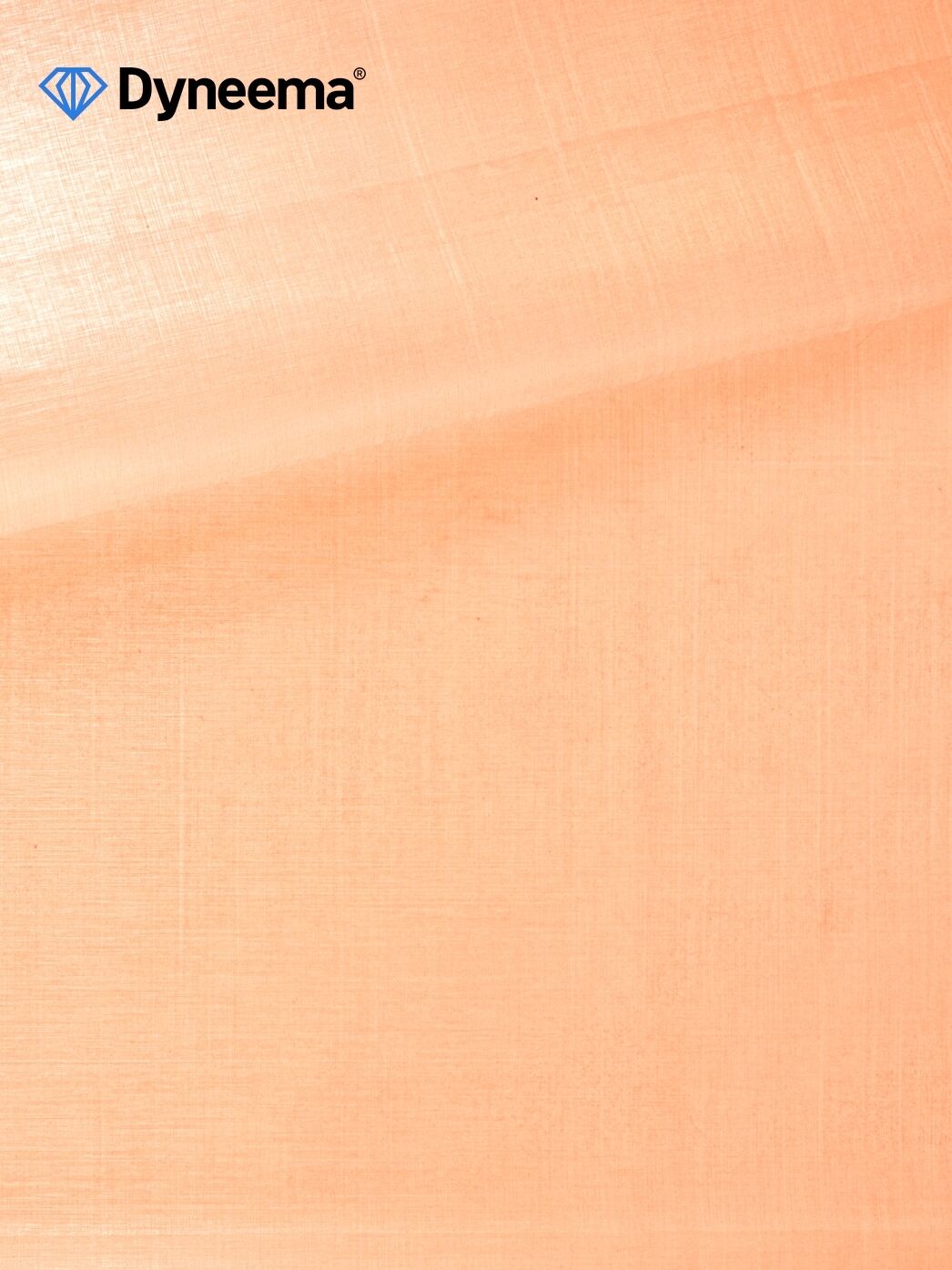

Dyneema® Composite Fabric 0.75, 25g/sqm
Article No.: 70285.ORA
€49.90/meter
incl. 19 % VAT plus
Please select your variant:
When folding the laminate into a carton it will get permanent folding marks that don't affect the technical properties. If you wish to receive the material without folding marks, please choose "shipping on the roll" during checkout. DCF is still folded all 9m during production so those marks can't be avoided.
In stock. Deliverable between 2-4 days
Meter
Product information
Dyneema® Composite Fabric 0.75, 25g/sqm
The naming of Dyneema® Composites received an update. This article is equivalent to our former " Dyneema® Composite Fabric CT2E.08, 26g/sqm".
Dyneema® Composite Fabric is a performance laminate, that was originally invented for high-end cruising sails. The concept is well known in the sailing-industry: Strong fibers are being laminated between two carriers. What makes Dyneema® Composite Fabric special are the ultra-strong Dyneema®-fibres that are used. Dyneema® combines extremely high tear-strength with ultralight weight. Not without reason it is called "The world's strongest fiber"! Due to the unique properties of the fibers, Dyneema® Composite Fabric is far more tear-resistant than other fabrics of the same weight, it is highly waterproof, doesn't stretch, is resistant to folding, doesn't soak water, is UV- and chemical-resistant. The application range is determined by the amount of Dyneema®-fibers and various carrier materials that are used. The standard Dyneema® Composite Fabrics have a smooth Polyester-film on each side that makes it highly waterproof and can be easily glued. Dyneema® Composite Hybrid widens the application range by using additional layers of woven fabrics to opti-mize it for backpacks or bags.
This grade Dyneema® Composite Fabric 0.75 with 25g/sqm is a classic allround Dyneema® Composite Fabric-style, the inside and outside has a smooth, transparent polyester-film. The high per-centage of ultra-tear resistant Dyneema® between the two layers make it extremely tear-resistant. With the weight of 25g/sqm it is a very good allround-style for durable tarps, tents and lavuus or for lightweight stuffsacks. It can also be used as reinforcements on the lighter styles. Another very good option for lightweight tarps etc. is the lighter style Dyneema® Composite Fabric 0.55 with 19g/sqm. For super-ultralight backpacks or durable stuffsacks we recommend the heavier style Dyneema® Composite Fabric 0.96 with 34g/sqm since it has a thicker and more durable carrier film.
Dyneema® fiber from bio-circular feedstock is used for this article. In Dyneema® fiber from bio-circular feedstock, residues from the wood and pulp industry are mixed with fossil raw materials during the manufacturing process. Due to the proportion of renewable raw materials, the ethylene produced has a significantly better CO2 balance than conventional HMPE. The technical properties of Dyneema® fiber from bio-circular feedstock are identical to conventional Dyneema®. Dyneema® fiber from bio-circular feedstock is ISCC-certified.
Short info
Range of Application
Tarp/Tent
Properties
Waterproof (over 5000mm), Ultralight, Inelastic
Stock Options
Temporarily in Stock
Country of Origin
USA
SUK
This article is equivalent to the grade CT2E.08
Processing
Dyneema® Composite Fabric is very lightweight and tear-resistant but also very thin. Hence it is prone to abrasion and should be handled with care. Due to the compact construction, it is very easy to work with Dyneema® Composite Fabric. It can be easily folded, doesn't stretch or fray and can be easily glued. For Dyneema® Composite Fabric with two film-layers we recommend sewing and additional gluing for the seams. The seam can also be only glued. To prevent to perforate the laminate, the stitching distance should not be less than 3mm. We recommend applying an extra tape for reinforcements on sewn seams. We offer several adhesive tapes for gluing Dyneema® Composite Fabric that you can find further below.
Cutting
We recommend micro-serrated scissors when cutting fabrics with Dyneema®. Scissors with normal cutting blades cut this material poorly and quickly become blunt. Heat-cutting with a heat-cutter is also possible.
Construction
Dyneema® Composite Fabric consists of cross- and lengthwise Dyneema®-threads that are pressed and glued between two layers of a transparent polyester-film. The result is a permanently bonded, half-transparent, waterproof laminate with a slightly structured, but smooth surface. Regular folding whitens and softens the fabric.
Repairing
The strong Dyneema®-fibers prevent small damages to spread and they can easily be repaired with a self-adhesive patch of Dyneema® Composite Fabric-repairtape.
Colors
Only the colored Dyneema®-threads give the fabric the color. Since the threads do not cover the whole surface, all colors remain in a light tone and the fabric stays semi-transparent.
Please note
Due to it’s unique production process, Dyneema® Composite Fabric can contain stains, stripes, dots, variations in weaving or slight folding marks. This is more visible in the colored versions. Since this doesn't affect the technical properties, this is not an error.
Export regulations
Dyneema® Composite Fabrics are held together by a proprietary polymer matrix. The fabric is subject to the regulations of the United States Bureau of Industry and Security (BIS) and is classified Export Control Classification Number (ECCN) 1C990. At the date of this end-user statement, these fabrics, or final items containing these fabrics are not allowed to be (re)exported to North Korea, Syria, Iran, Cuba and Sudan. In addition, these items are restricted from being supplied for military end-use to Russia, Venezuela and China. Violation of these restrictions may lead to criminal prosecution under United States Law.
Technical Informations
Roll Width
1370mm
Weight (g/sqm)
25g/sqm
Material
Polyester (PES), UHMW-PE, Dyneema®, Bio based Dyneema®
Fabric Construction
Laminate, Film
Weight
0.75 oz/y² (25 gsm)
Maximum Tensile Strength (ASTM D3039)
104 lb/in
Tear Strength (Slit method Mil-C-21189 10.2.4)
18 lb
Puncture Resistance (ASTM F1342 Probe B)
3.1 lb
Water Resistance (AATCC TM127)
20,000 mmH2O
Water Column (mm)
20.000mm
Roll Width
1370mm
Weight (g/sqm)
25g/sqm
Material
Polyester (PES), UHMW-PE, Dyneema®, Bio based Dyneema®
Fabric Construction
Laminate, Film
Weight
0.75 oz/y² (25 gsm)
Maximum Tensile Strength (ASTM D3039)
104 lb/in
Tear Strength (Slit method Mil-C-21189 10.2.4)
18 lb
Puncture Resistance (ASTM F1342 Probe B)
3.1 lb
Water Resistance (AATCC TM127)
20,000 mmH2O
Water Column (mm)
20.000mm
