WINCH momentum right, magnetic twist buckle with ratchet function, sewable
Article No.: 72741
€7.20/pieces
incl. 19 % VAT plus
In stock. Deliverable between 2-4 days
Piece
Product information
WINCH momentum right, magnetic twist buckle with ratchet function, sewable
Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A light impulse is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or with gloves - and still secure. Added to this is the elegant look and high-quality workmanship with robust, reliable materials.
The WINCH system from Fidlock combines the properties of a ratchet with those of a magnetic fastener. A cord is fixed in the upper part of the fastener. By turning the upper part, a cord is reeled in like a spool and can thus be tensioned. Now the highlight: by simply lifting the upper part, the fastener can be released and the tension on the cord released. When the two parts are brought together again, the magnets pull them together precisely so that the cord can be tensioned again.

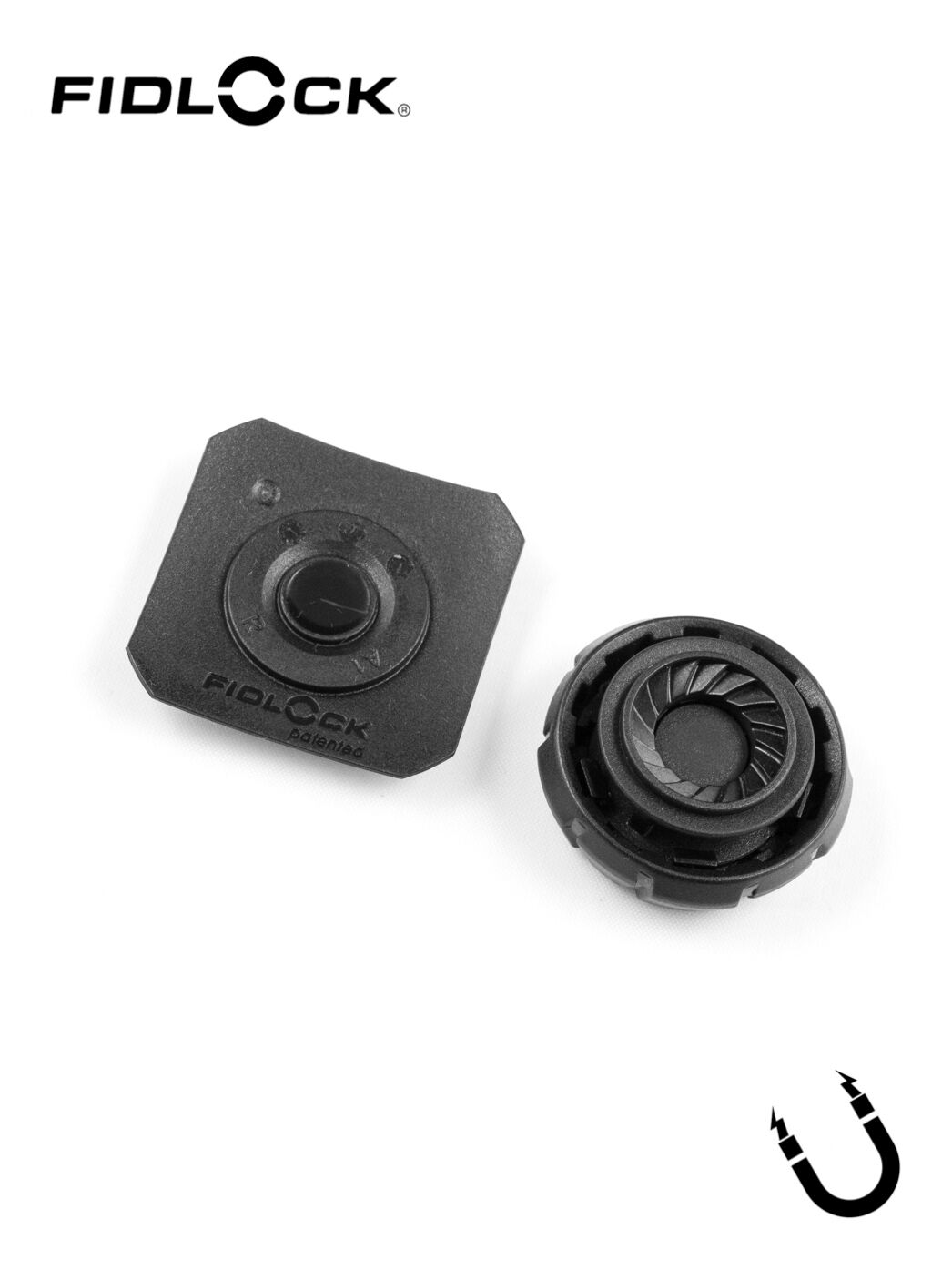

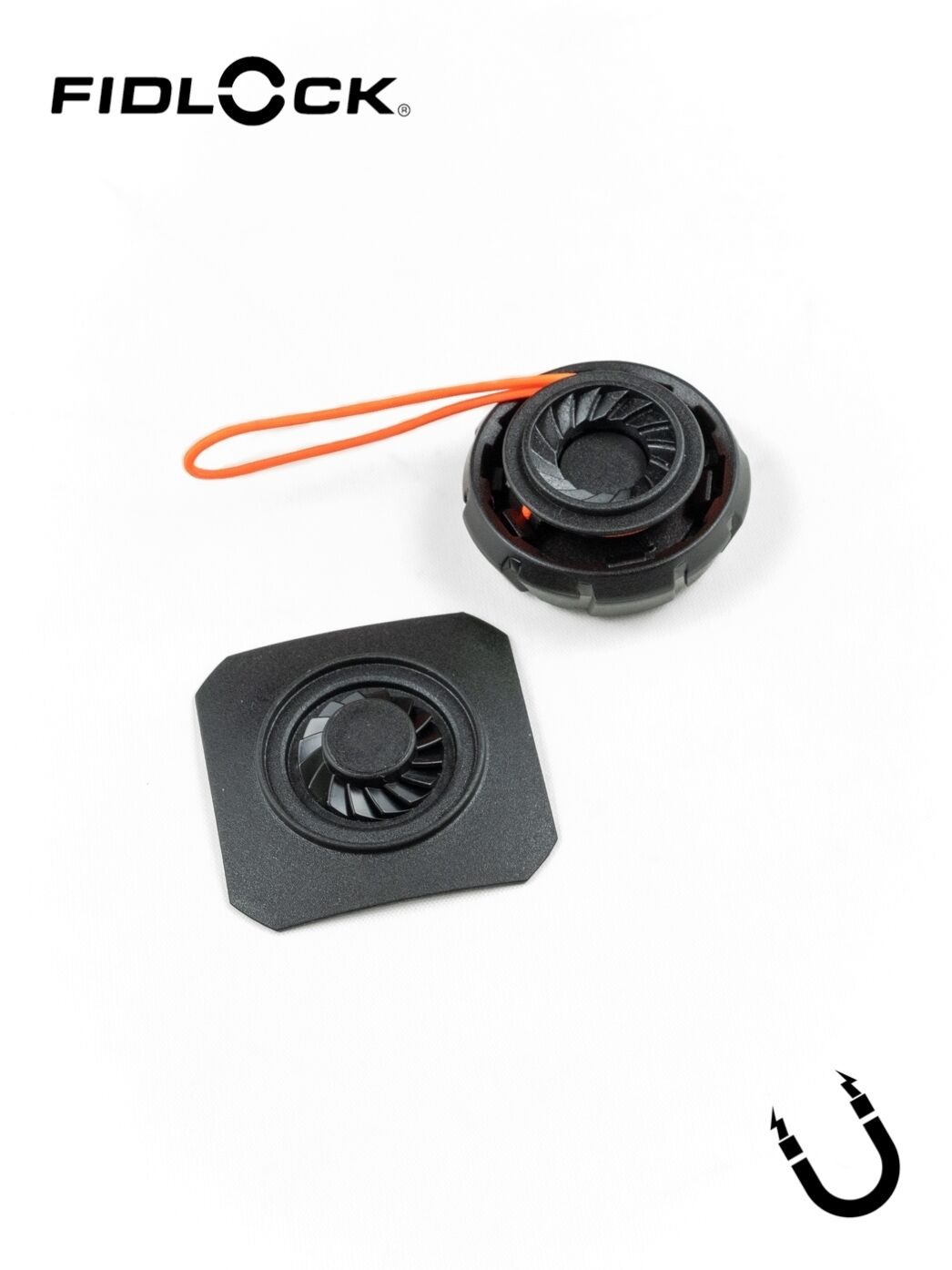

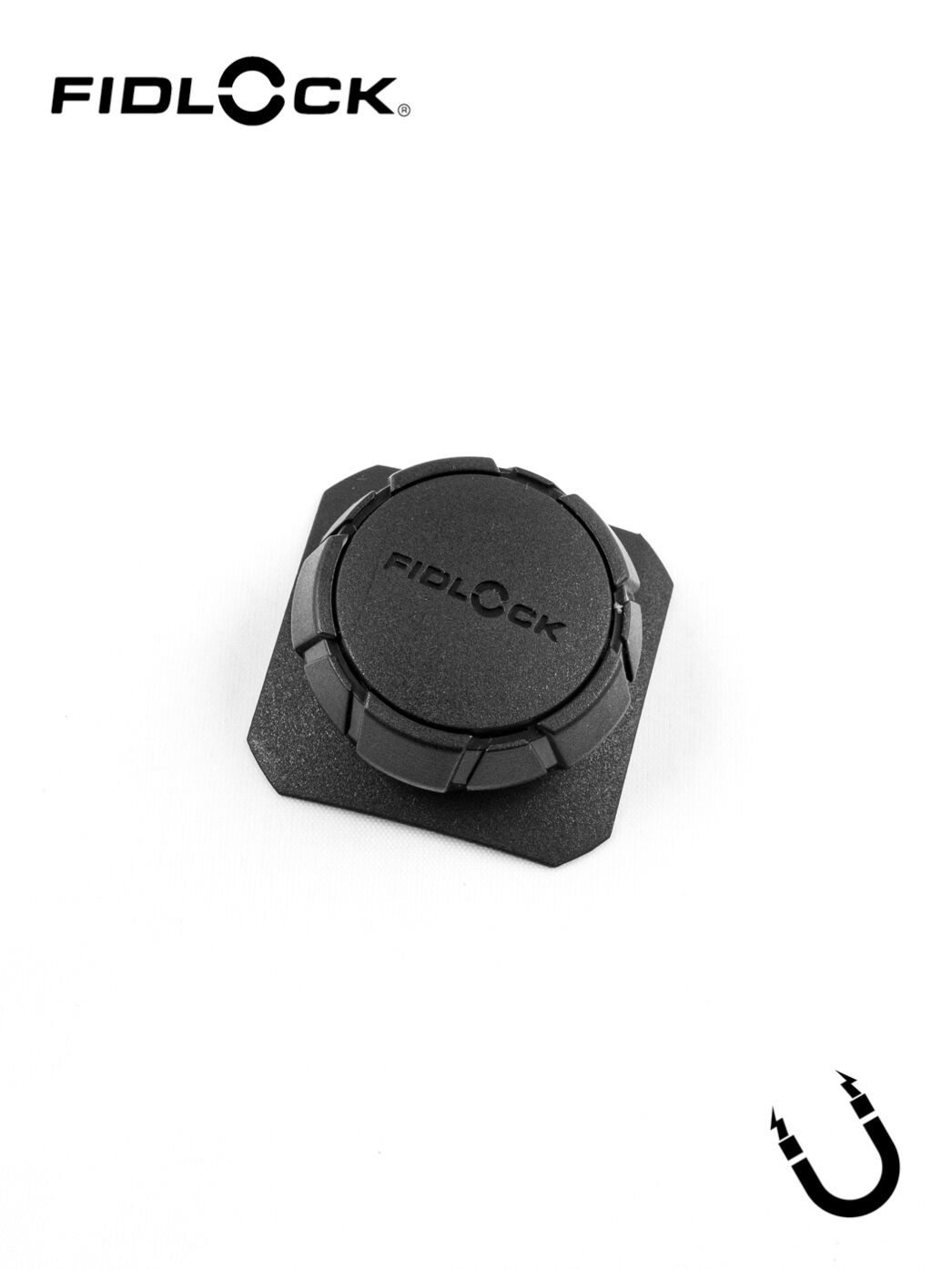

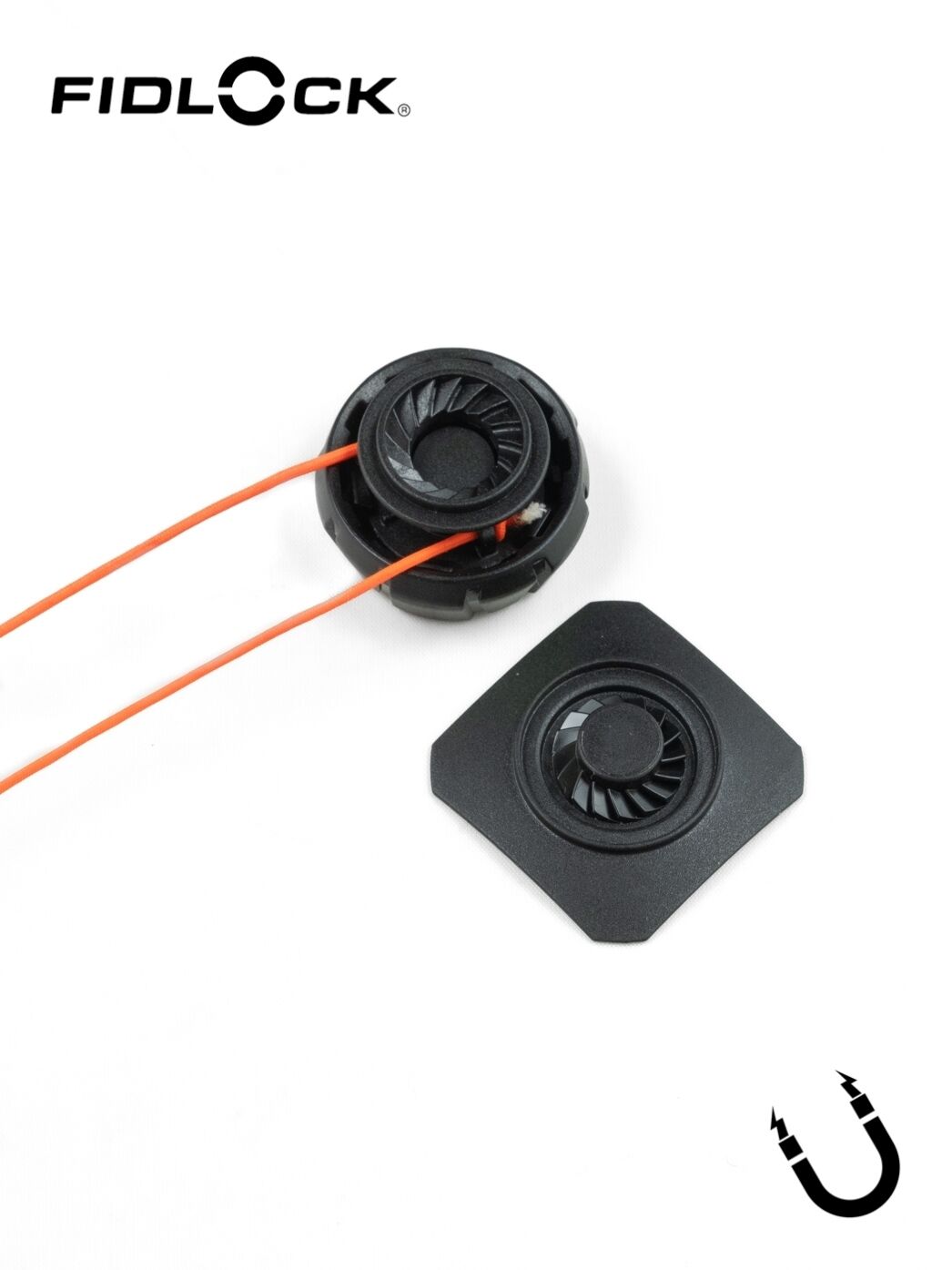

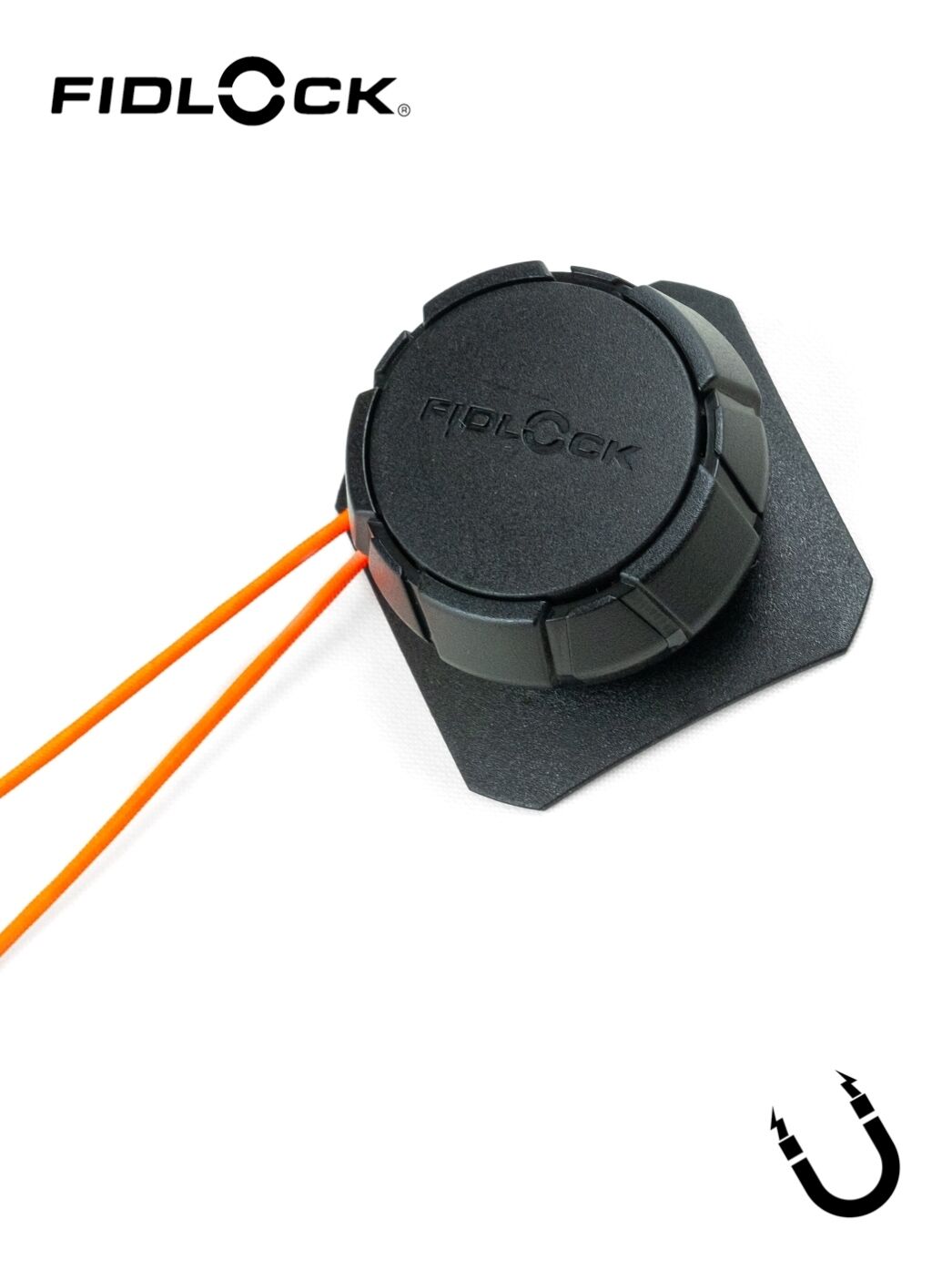

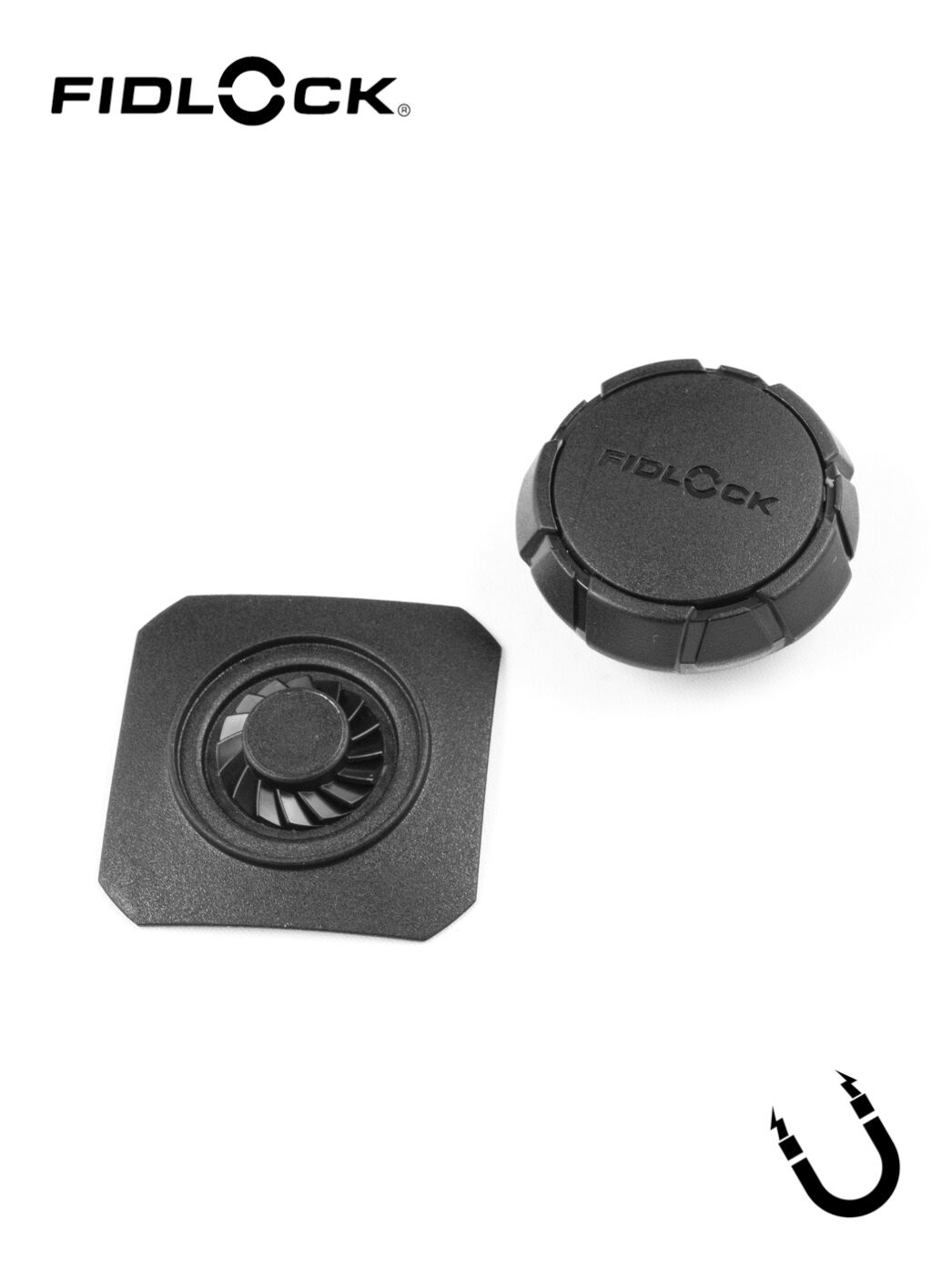

Despite its compact size and low weight, the WINCH Momentum Right offers a breaking load of 20 kg. This right-handed version is tensioned by turning it clockwise. With this version of the WINCH, the fastener can be turned in both directions, as with a ratchet, but only winds the cord clockwise. When released, the cord can then simply unwind. The WINCH Momentum Right consists of two parts: the sew-on base plate and the upper ratchet. For assembly, the cord is threaded through the holes from below and can then either be knotted or threaded through. The cord thickness for the WINCH Momentum Right is 1.25mm - 2mm, it works best with 1.5mm. This system is perfect for applications such as quick-release systems on shoes or compression straps on rucksacks and bags.
You will find installation instructions here: <a alt="assembly guide" title="assembly guide" href="https://extremtextil.imgbolt.de/media/pdf/dd/c7/56/WINCH-Einbauanleitung-ENG.pdf">Fidlock assembly guide</a>
Short info
Stock Options
Standard Article
Country of Origin
China
Warning
Magnets! The buckles are magnetic and should be used with care close to things or people that are sensitive to magnets.
Note
Delivery without cord. The base plates of the various WINCH models are identical.
Care instruction:
Washable up to 40°C, do not tumble dry
Technical Informations
Weight (g/pcs)
6g/pcs
Material
PA66-GF
Components Material
Nylon
Diameter (handle)
32mm
Height (handle)
14mm
Length (base plate)
46mm
Width (base plate)
46mm
Height (base plate)
5,5mm
Application
for Cords, Length Adjustment, Connectors
Weight (g/pcs)
6g/pcs
Material
PA66-GF
Components Material
Nylon
Diameter (handle)
32mm
Height (handle)
14mm
Length (base plate)
46mm
Width (base plate)
46mm
Height (base plate)
5,5mm
Application
for Cords, Length Adjustment, Connectors
