SNAP FEMALE SCREW EXTRA GRIP | size L | magnetic fastener, for 0,5-2,5mm material

Article No.: 73097

€4.50/piece

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

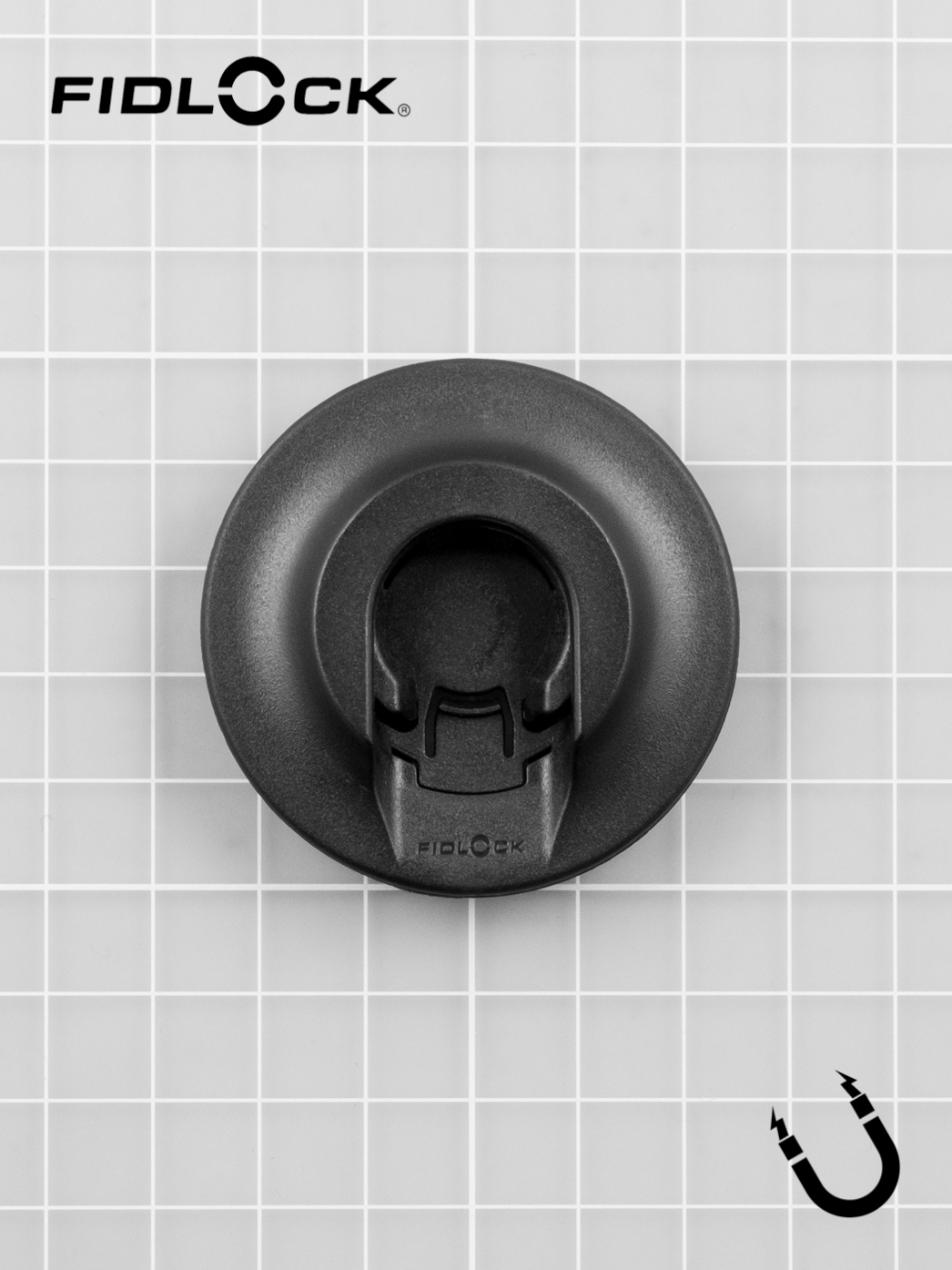

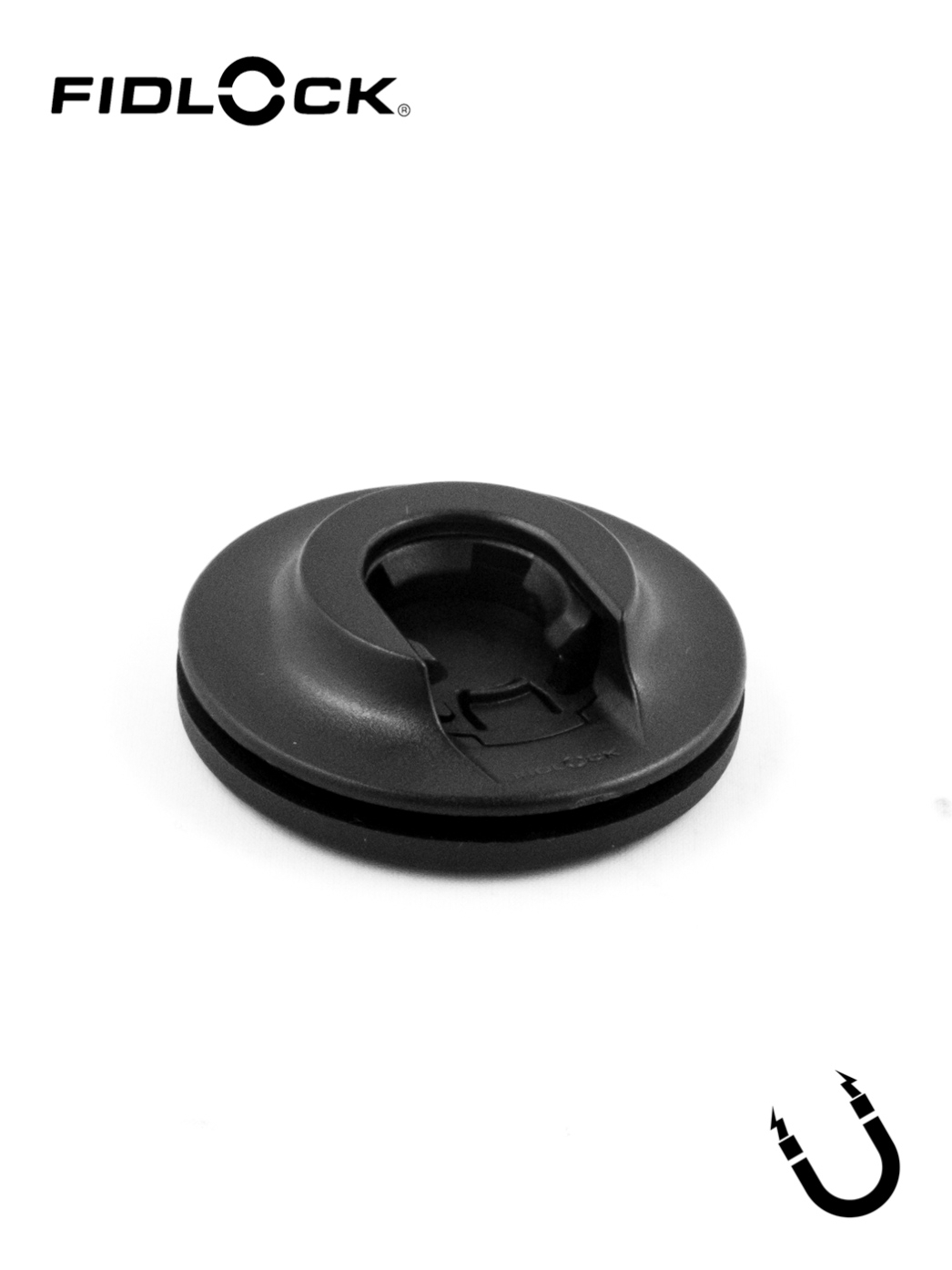

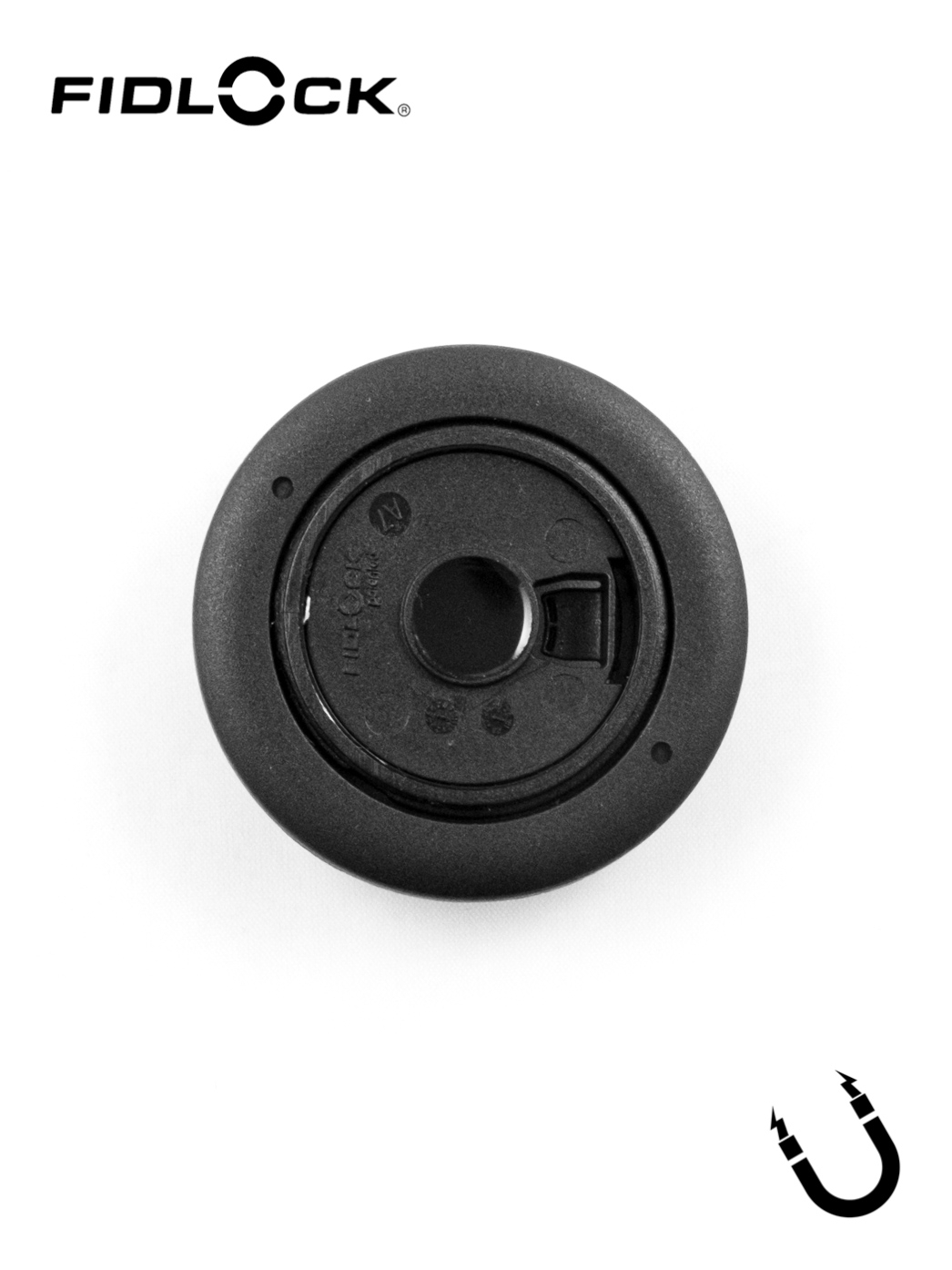

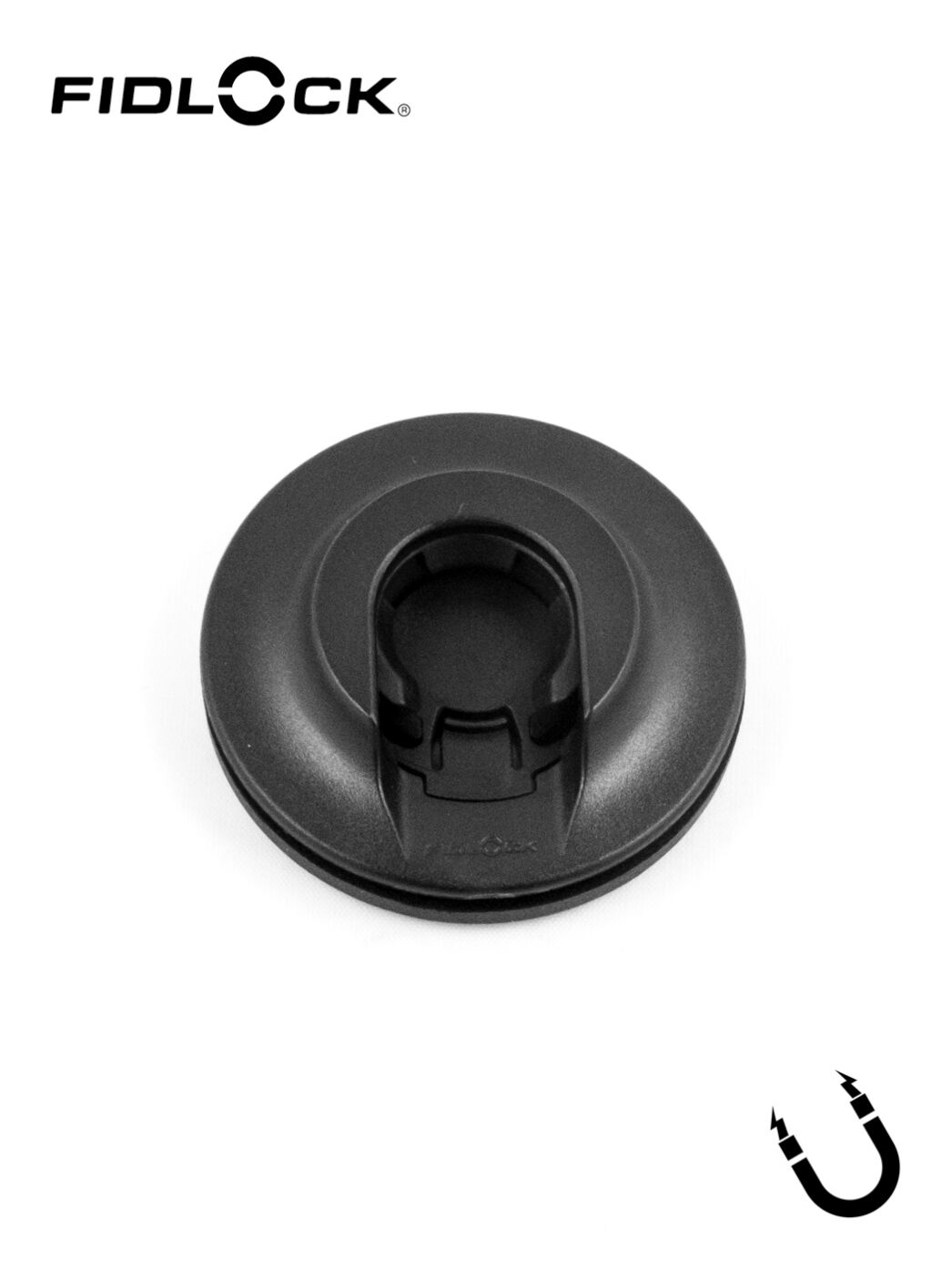

SNAP FEMALE SCREW EXTRA GRIP | size L | magnetic fastener, for 0,5-2,5mm material

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP series includes the most versatile fasteners from Fidlock and ranges from small, inconspicuous fasteners in size S to extra-sturdy workhorses in size L. There are models for riveting, screwing on and off, sewing on, with strap attachments or with tube clamps. All SNAP fasteners consist of a MALE part and a FEMALE counterpart in sizes S, M or L. Depending on the intended use, parts of one size can be combined with each other. Each part must be ordered separately.

The SNAP FEMALE SCREW EXTRA GRIP, size L, is the female counterpart to Fidlock's male SNAP fasteners in size L. The SNAP FEMALE SCREW EXTRA GRIP consists of two parts and is secured by screwing the counterplate into place with an internal thread. This version is suitable for materials such as fabrics, straps, tarpaulins, or sheet materials with a thickness of 0.5 mm to 2.5 mm. Unlike the regular SNAP FEMALE SCREW, the EXTRA GRIP version offers additional hold thanks to a small nipple. The MALE counterpart cannot simply be pulled out; instead, the fastener must be tilted slightly. This enables extremely secure and rigid connections that are well suited for projects with high loads, such as bicycle bags and the like. All counterparts that you can combine with the SNAP FEMALE SCREW EXTRA GRIP, size L, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Installation
SNAP fasteners can be installed easily without any additional tools. For easier installation, we offer the “TOOL 3” tool, which makes it easier to screw the parts together. To screw in size L SNAPS, a hole with a diameter of 36 mm must be cut or punched into the base material.
Caution magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on highly sensitive devices or people.
Please note
The MALE and FEMALE parts of SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 40°C, do not tumble dry

Technical Informations

Weight (g/pcs)
16,6g/pcs
Breaking Strength
30kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodynium magnet
Components Material
Nylon, Magnet
Size
L
Total diameter
50mm
Min. Total height
15mm
On-fabric Height above Material
8,4mm
On-fabric Height under Material
4,4mm
For material thickness
0,5-2,5mm
Application
Connectors
