SNAP FEMALE INSET ANCHOR | size M | magnetic fastener

Article No.: 73076

€7.70/piece

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

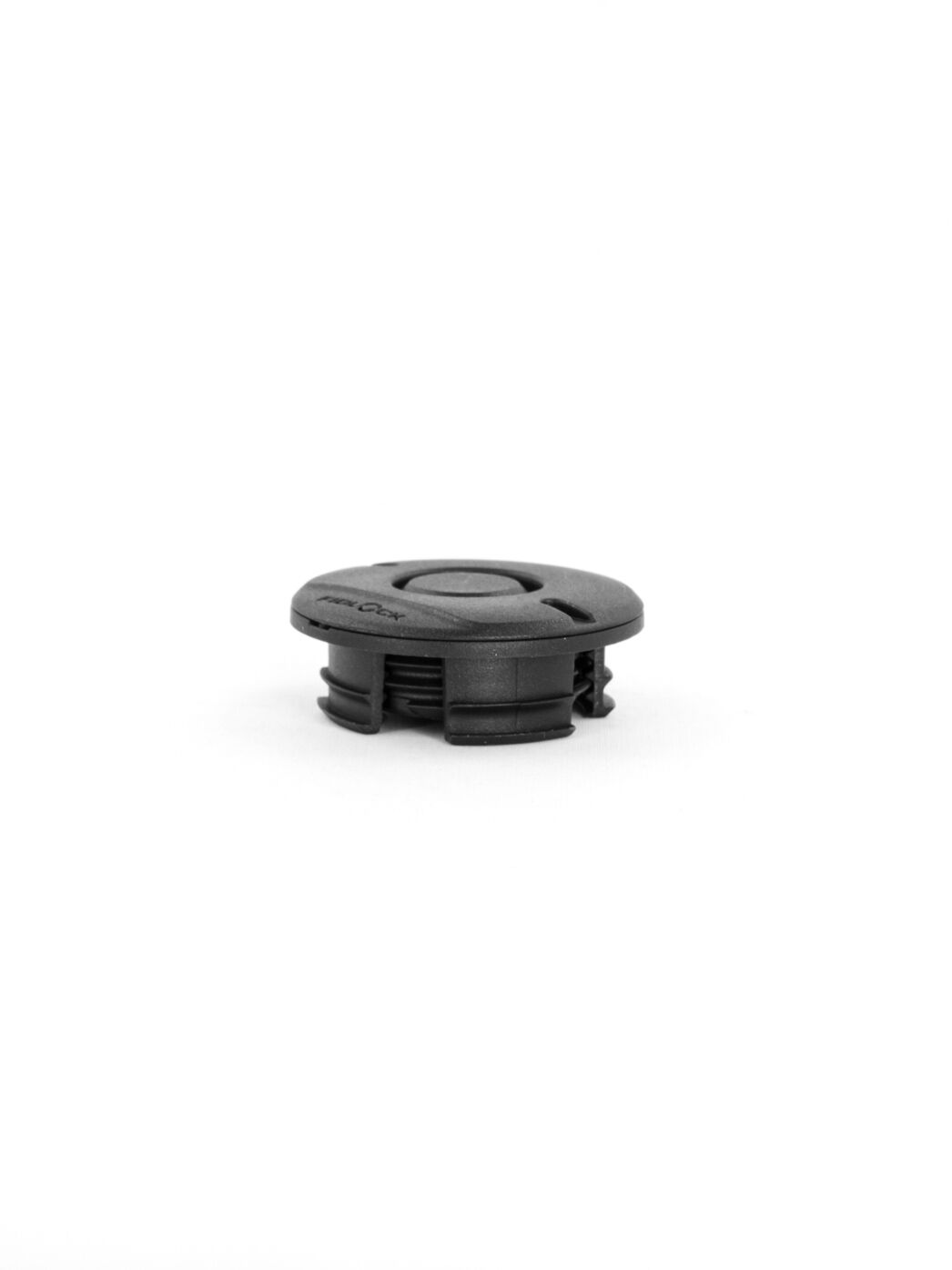

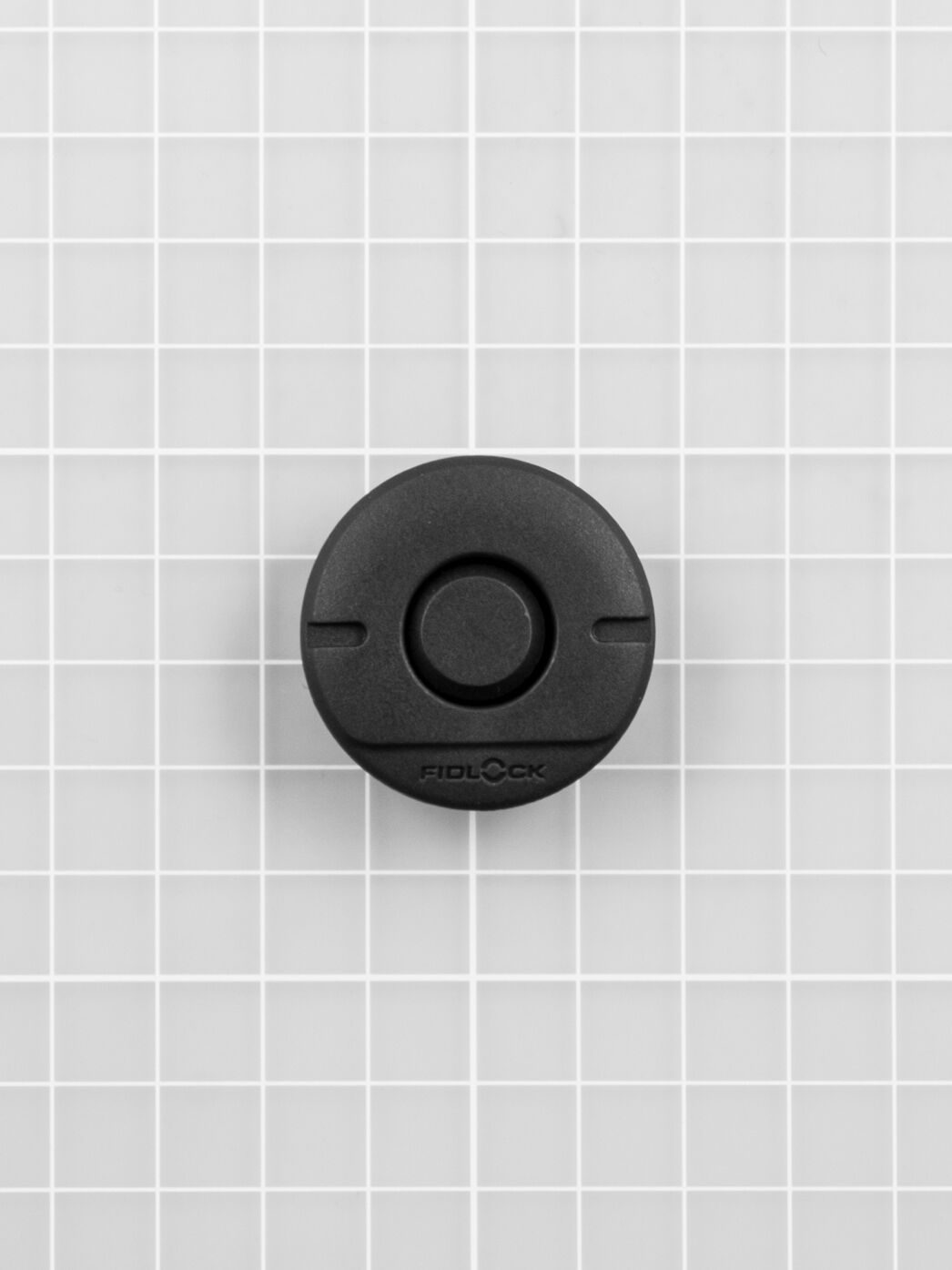

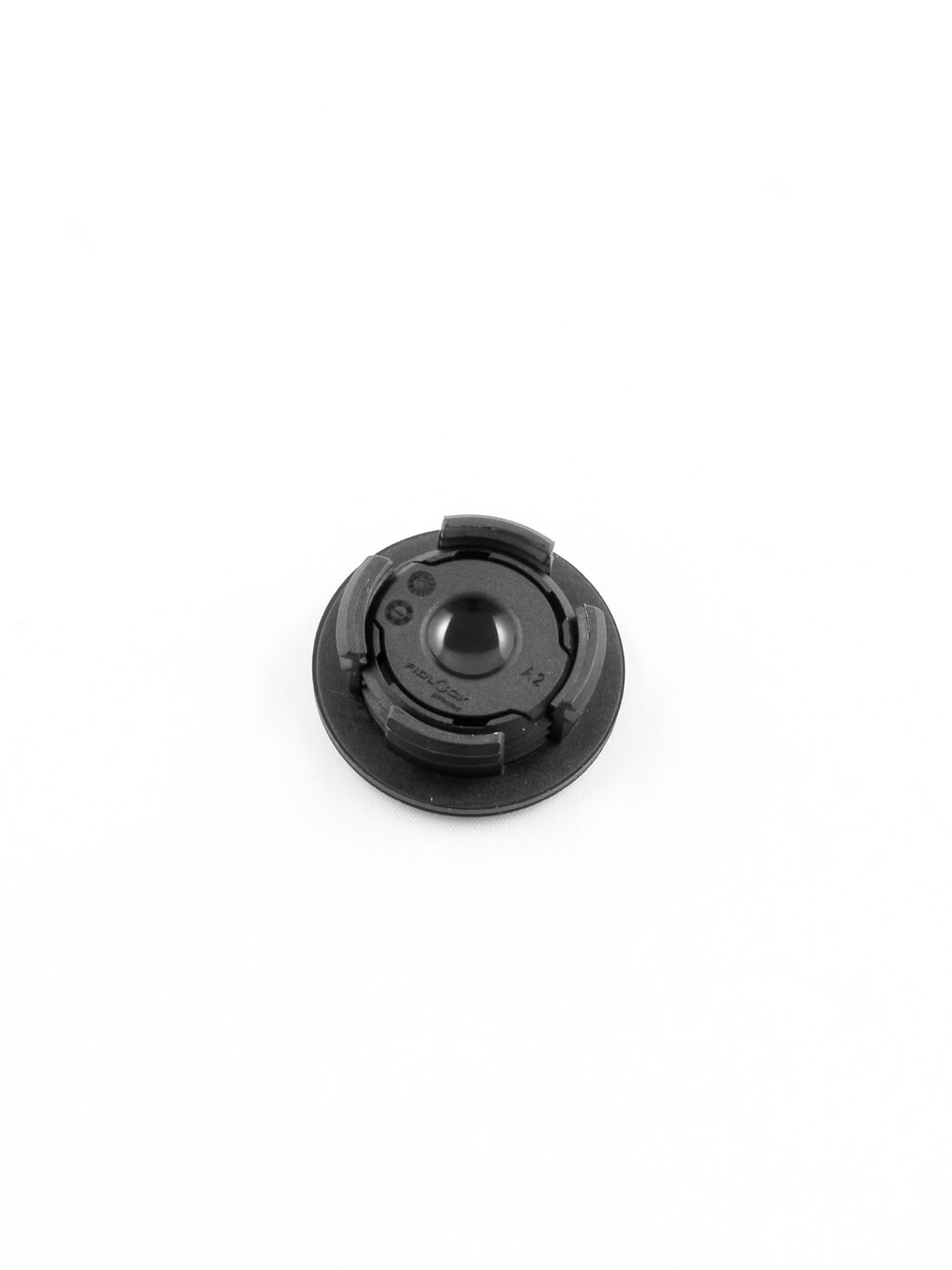

SNAP FEMALE INSET ANCHOR | size M | magnetic fastener

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

The SNAP series includes the most versatile fasteners from Fidlock and ranges from small, inconspicuous fasteners in size S to extra-sturdy workhorses in size L. There are models for riveting, screwing on and off, sewing on, with strap attachments or with tube clamps. All SNAP fasteners consist of a MALE part and a FEMALE counterpart in sizes S, M or L. Depending on the intended use, parts of one size can be combined with each other. Each part must be ordered separately.

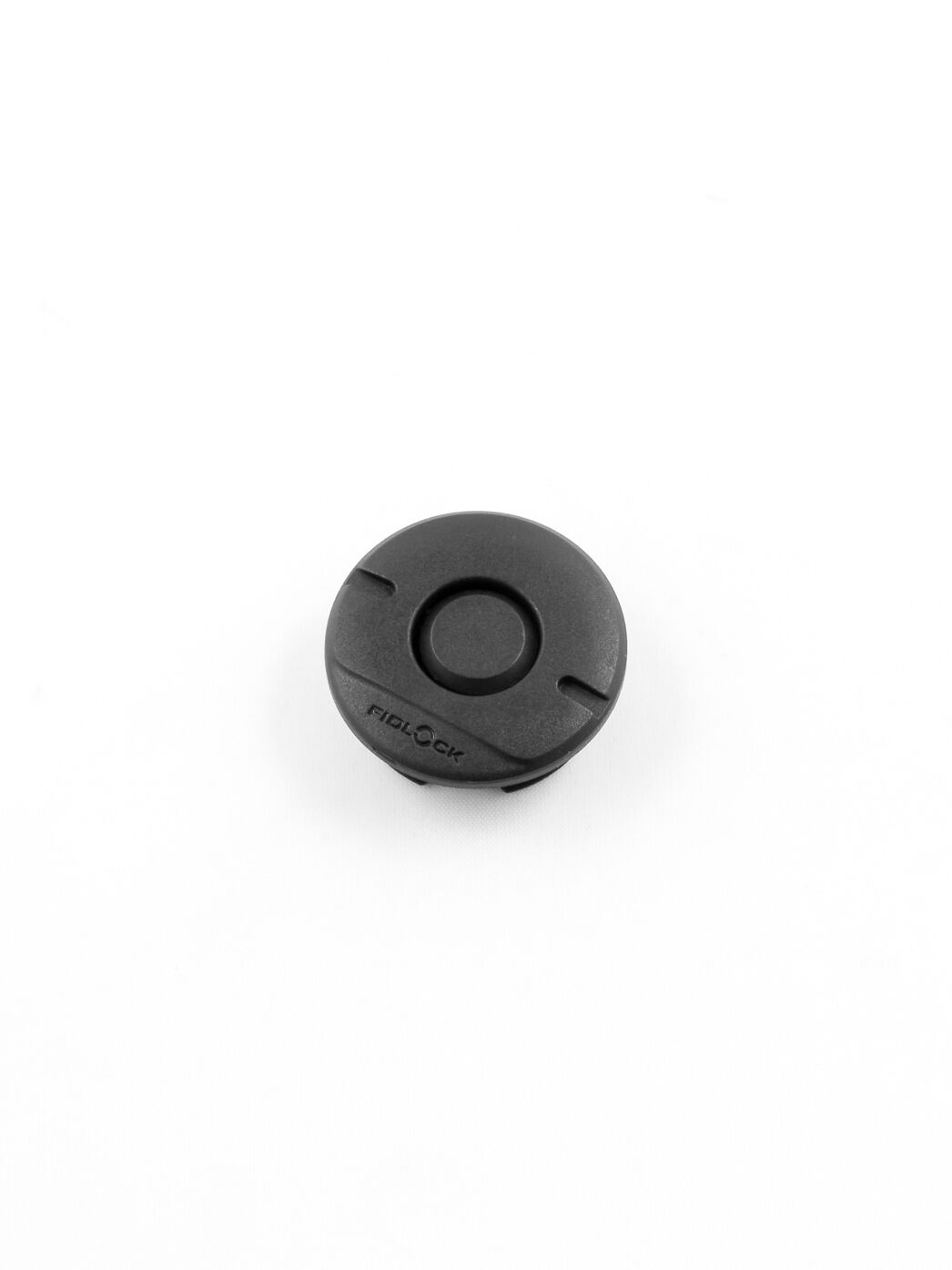

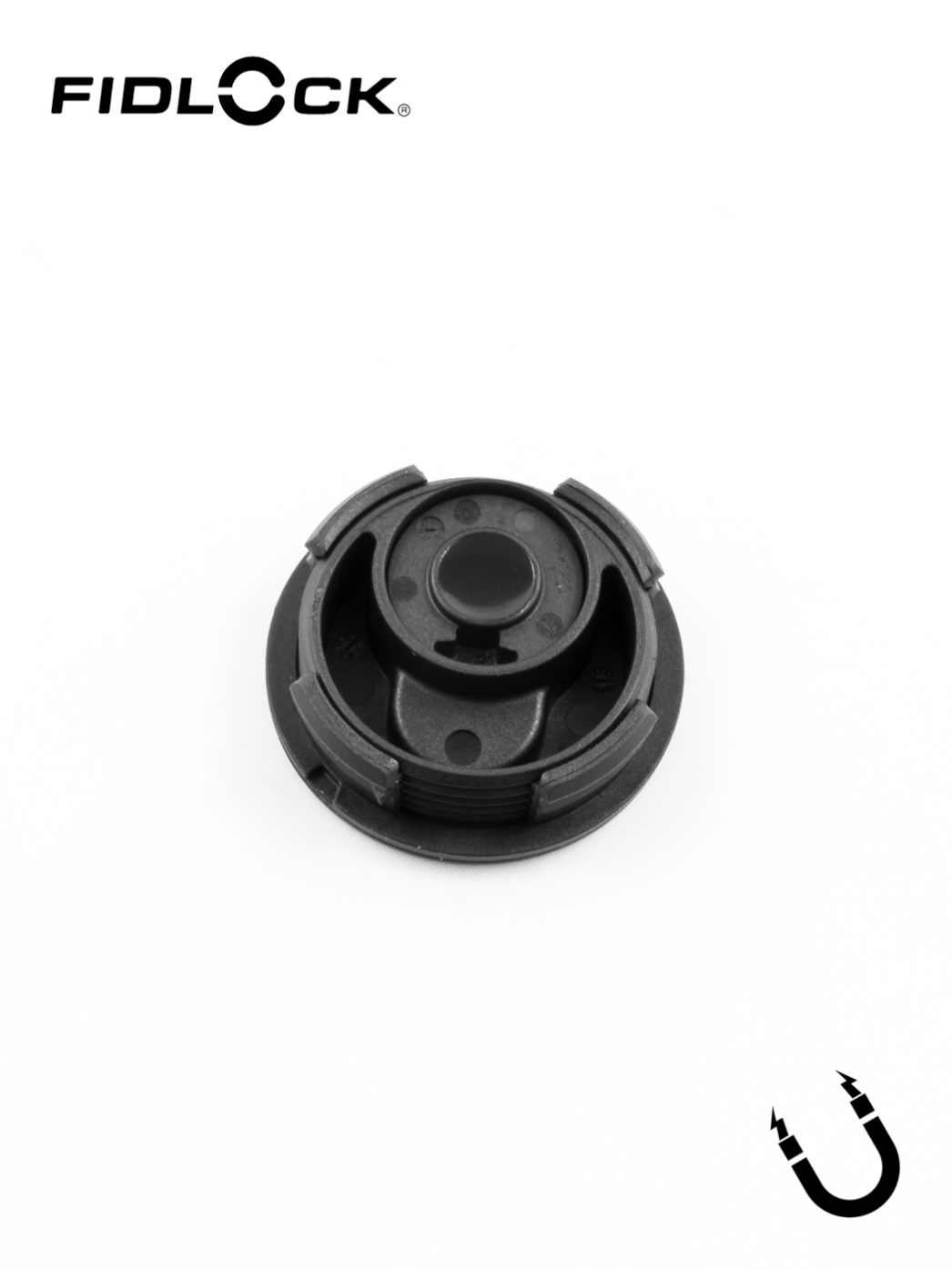

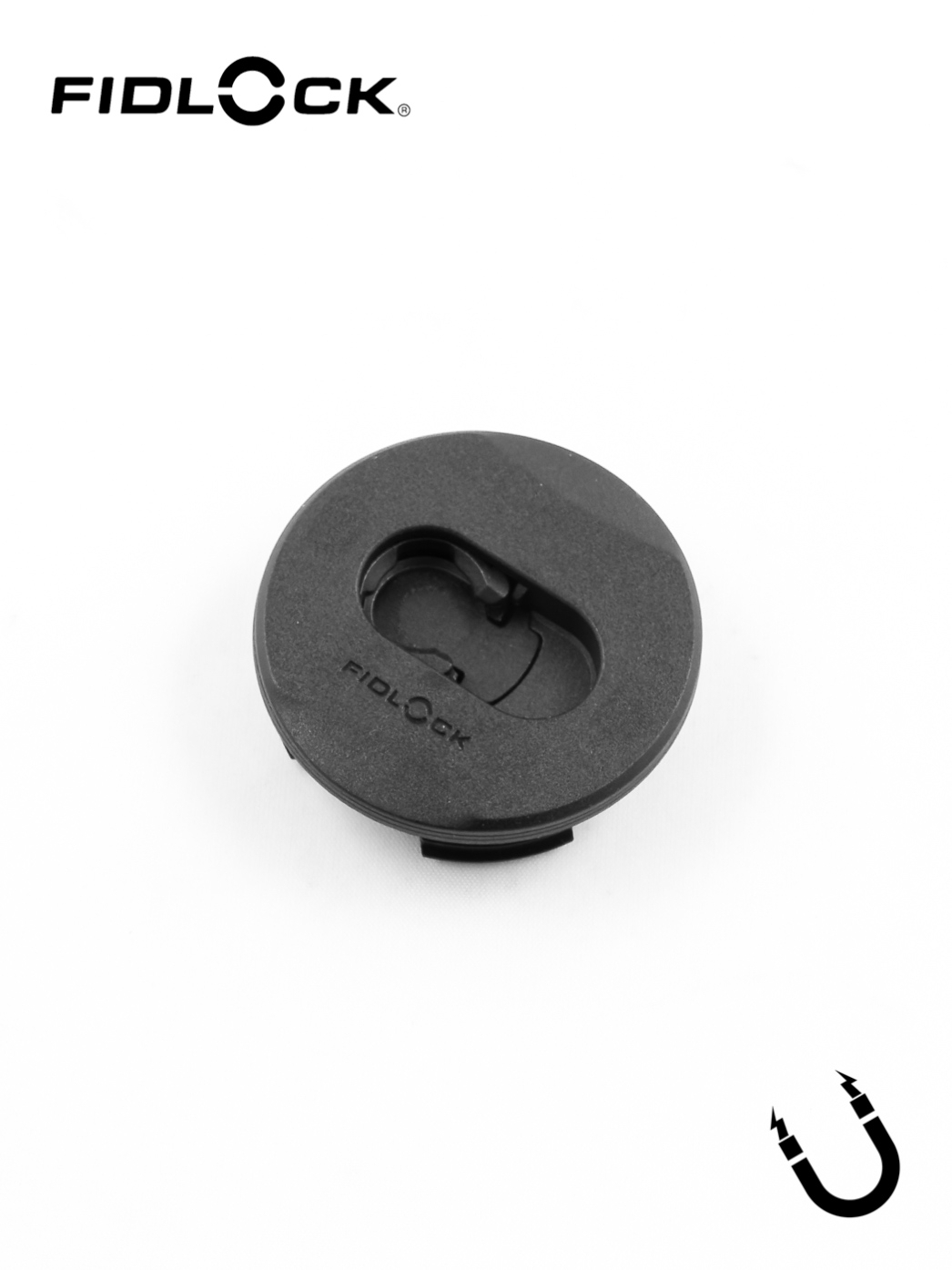

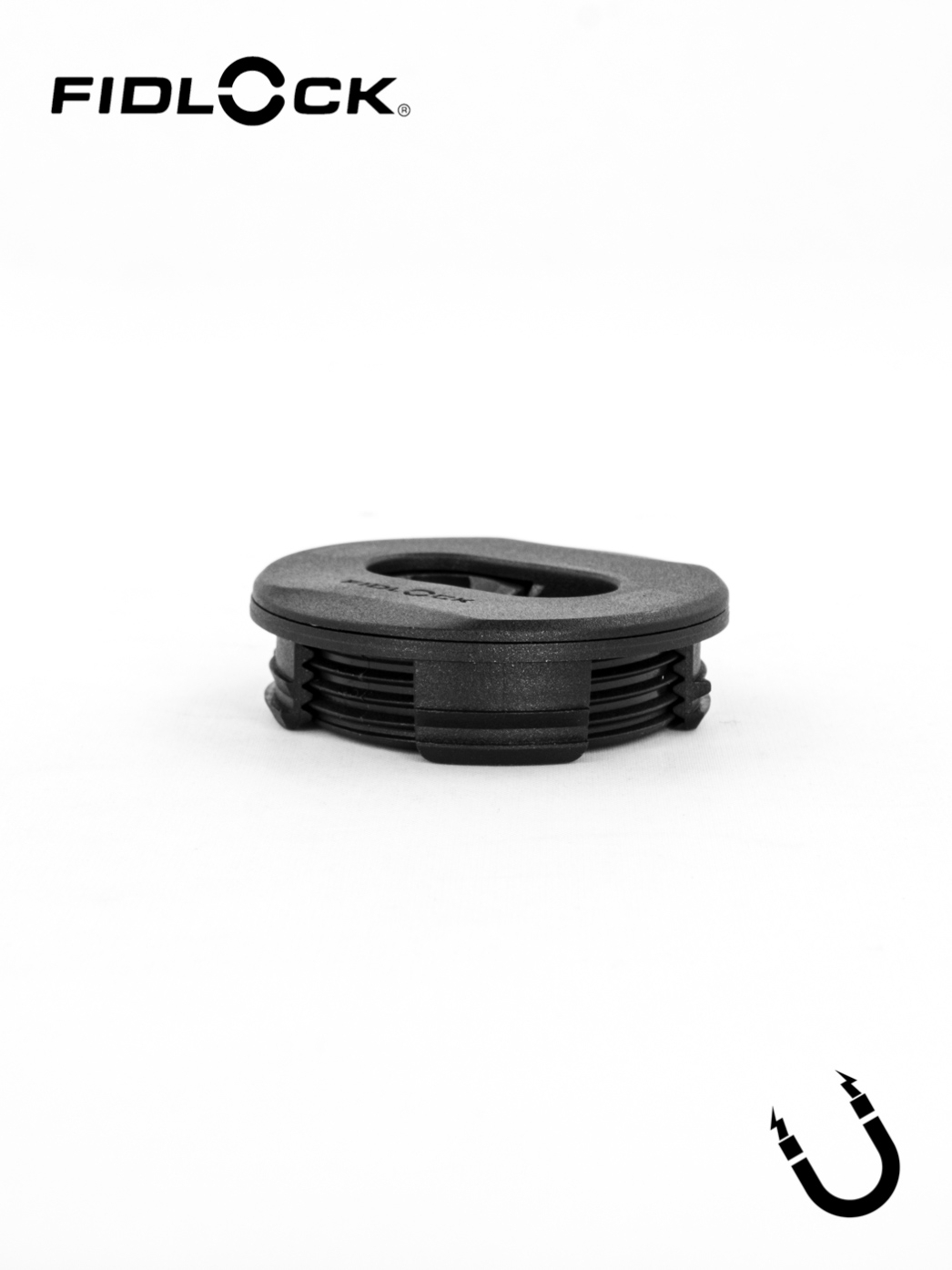

The SNAP FEMALE INSET ANCHOR in size M is the female counterpart to Fidlock's SNAP fasteners in size M. The SNAP FEMALE INSET ANCHOR consists of two parts and works like a dowel. A hole with a diameter of 40 mm is drilled or punched into the desired material and the screw ring is inserted. Then the actual base body is screwed in, which pushes the barbs of the screw ring outwards. This ensures that the ANCHOR is securely mounted. The SNAP FEMALE INSET ANCHOR is therefore more suitable for thicker materials such as wood.

Inserting it into the base material creates a flush and smooth finish from the outside, which looks very attractive. All counterparts that you can combine with the SNAP FEMALE INSET ANCHOR, size M, can be found below under "Accessories".



Short info

Stock Options
Standard Article
Country of Origin
China
Installation
SNAP fasteners can be easily installed without any additional tools. To screw the parts together, a hole with a diameter of 40 mm must be drilled or punched into the base material.
Attention magnets
Please be aware of the magnetic fields emitted by the fasteners when using them on very sensitive devices or people.
Please note
The MALE and FEMALE parts of the SNAP fasteners must be ordered separately!
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Weight (g/pcs)
13,7g/pcs
Breaking Strength
30kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodymium magnets
Components Material
Nylon, Magnet
Size
M
Main body diameter
45 mm
Screw ring diameter
45 mm
Total height
14 mm
Drill hole diameter
40 mm
Application
Connectors
