V-BUCKLE 20 | magnetic buckle, single side adjustment, 20mm

Article No.: 72044.SILB

€7.30/pieces

incl. 19 % VAT plus

Please select your variant:

Choose a color
In stock.  Deliverable between 2-4 days

Piece

Product information

V-BUCKLE 20 | magnetic buckle, single side adjustment, 20mm

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

Secure, stable and stylish - that's the V-BUCKLE from Fidlock. This range has been specially designed for security-relevant applications. With a breaking load of up to 70 kg, the V-BUCKLEs are also suitable for heavy-duty applications. The stainless steel flap is tilted to open - depending on the tension applied to the buckle, more or less force is required to lift the flap. All V-BUCKLEs are equipped with a small handle cord for easier handling. V-BUCKLEs are available for 20mm, 25mm and 40mm wide webbing and are compatible with each other.

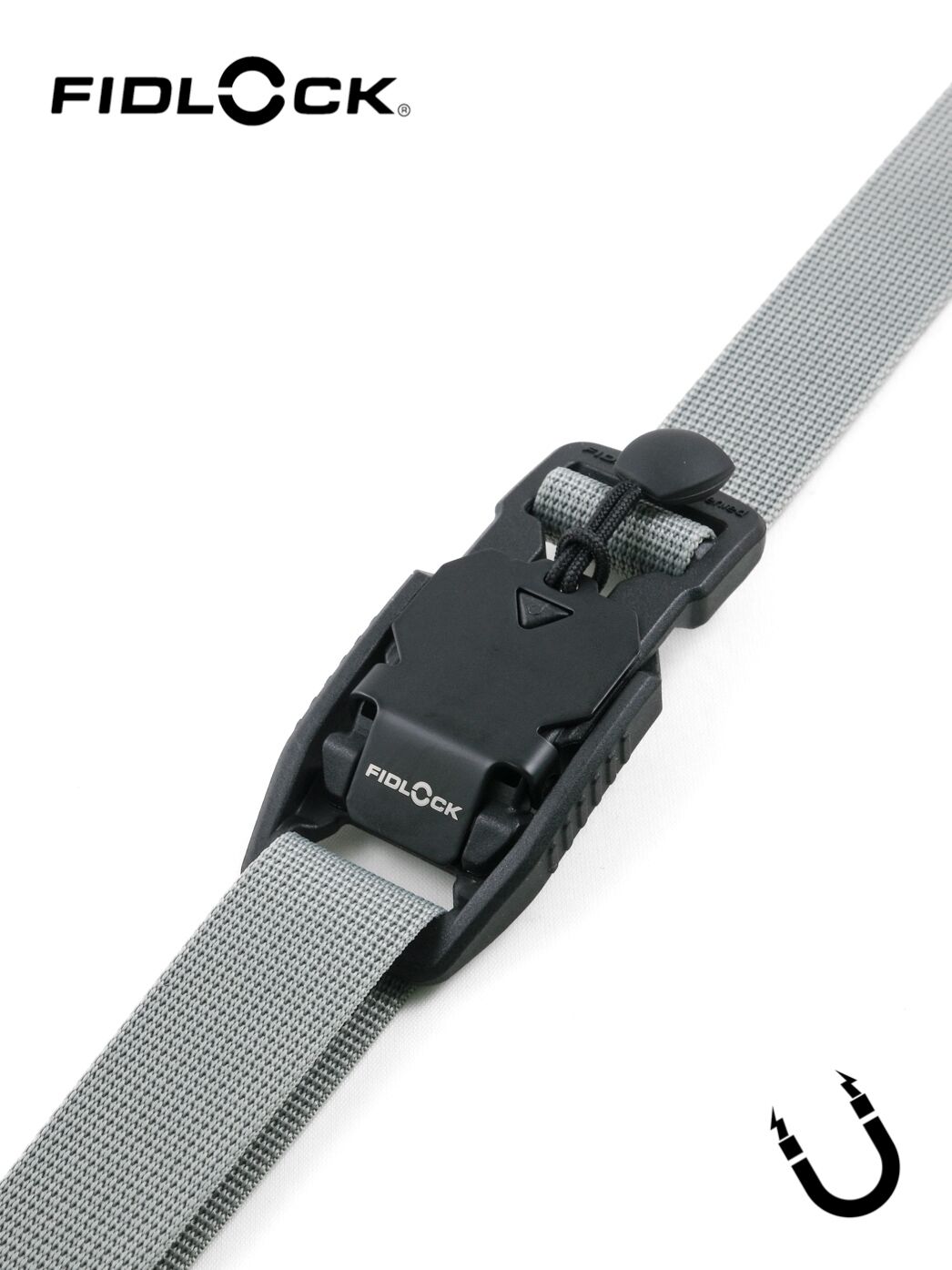

A 20mm wide webbing strap can be looped into the male part of the "V-BUCKLE 20", which remains adjustable in length. The female part is equipped with a bar to which the webbing be looped around and sewn on.



Short info

Stock Options
Standard Article
Country of Origin
China
Warning
Magnets! The buckles are magnetic and should be used with care close to things or people that are sensitive to magnets.
Webbing note
The "V-BUCKLE 20" works with both the thin and the strong webbing from our range. For better handling we recommend the webbing in standard thickness.
Compatibility
All V-BUCKLEs, even in different widths, can be combined with each other. Thus, different webbing widths can be combined with each other.
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Weight (g/pcs)
24,3g/pcs
Breaking Strength
70kg
Material
PA66-GF/stainless steel
Width
34mm
Length
74mm
Height
12mm
Suitable Webbing Width
20mm
Application
For Webbing, Length Adjustment, Connectors
