T9 Shield Universal, side release buckle, single side adjustment, CNC 7075 alloy, 38mm

Article No.: 72624.SILBMTT

€12.90/piece

incl. 19 % VAT plus

Please select your variant:

Choose a color
In stock.  Deliverable between 2-4 days

Piece

Product information

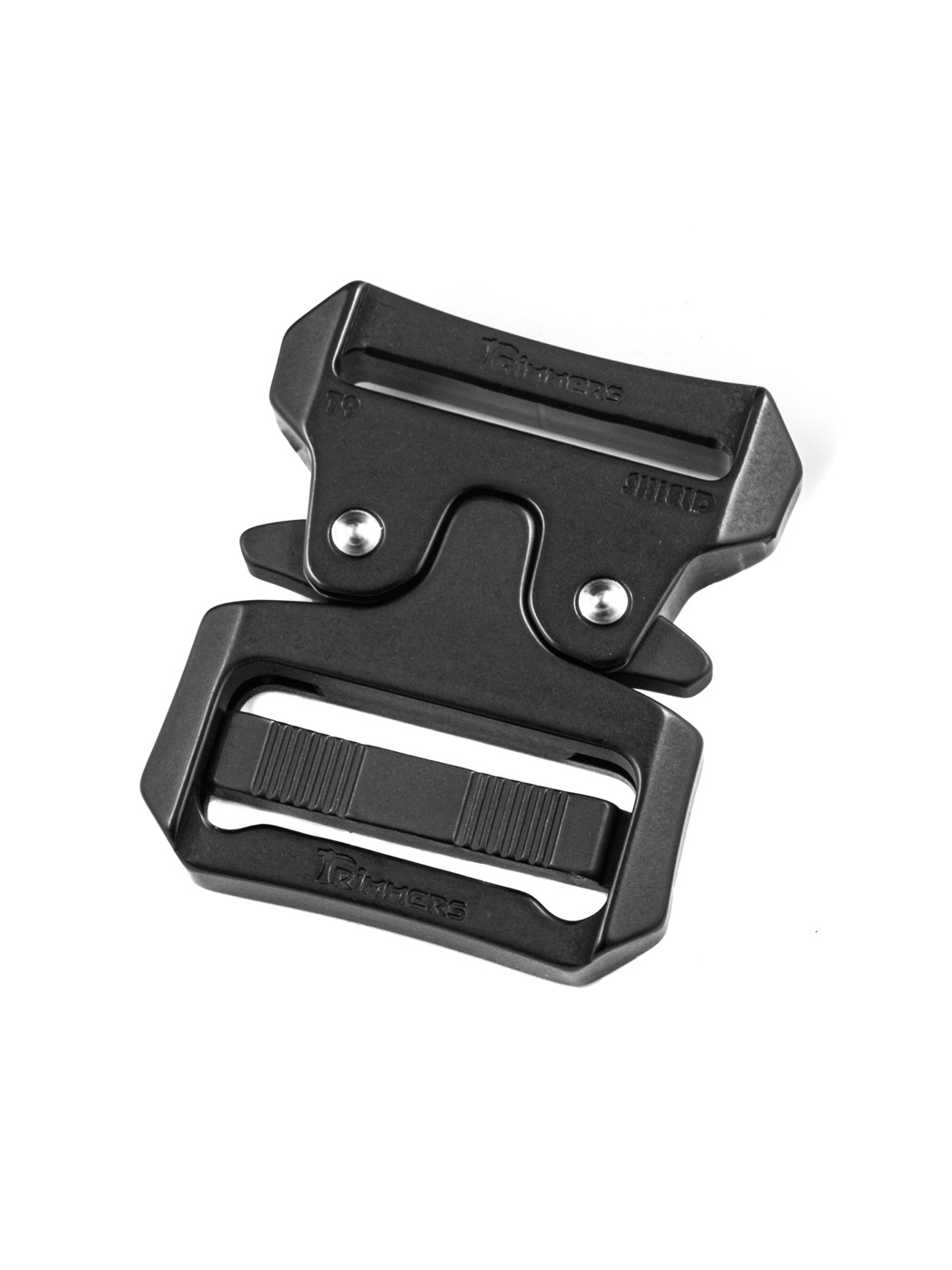

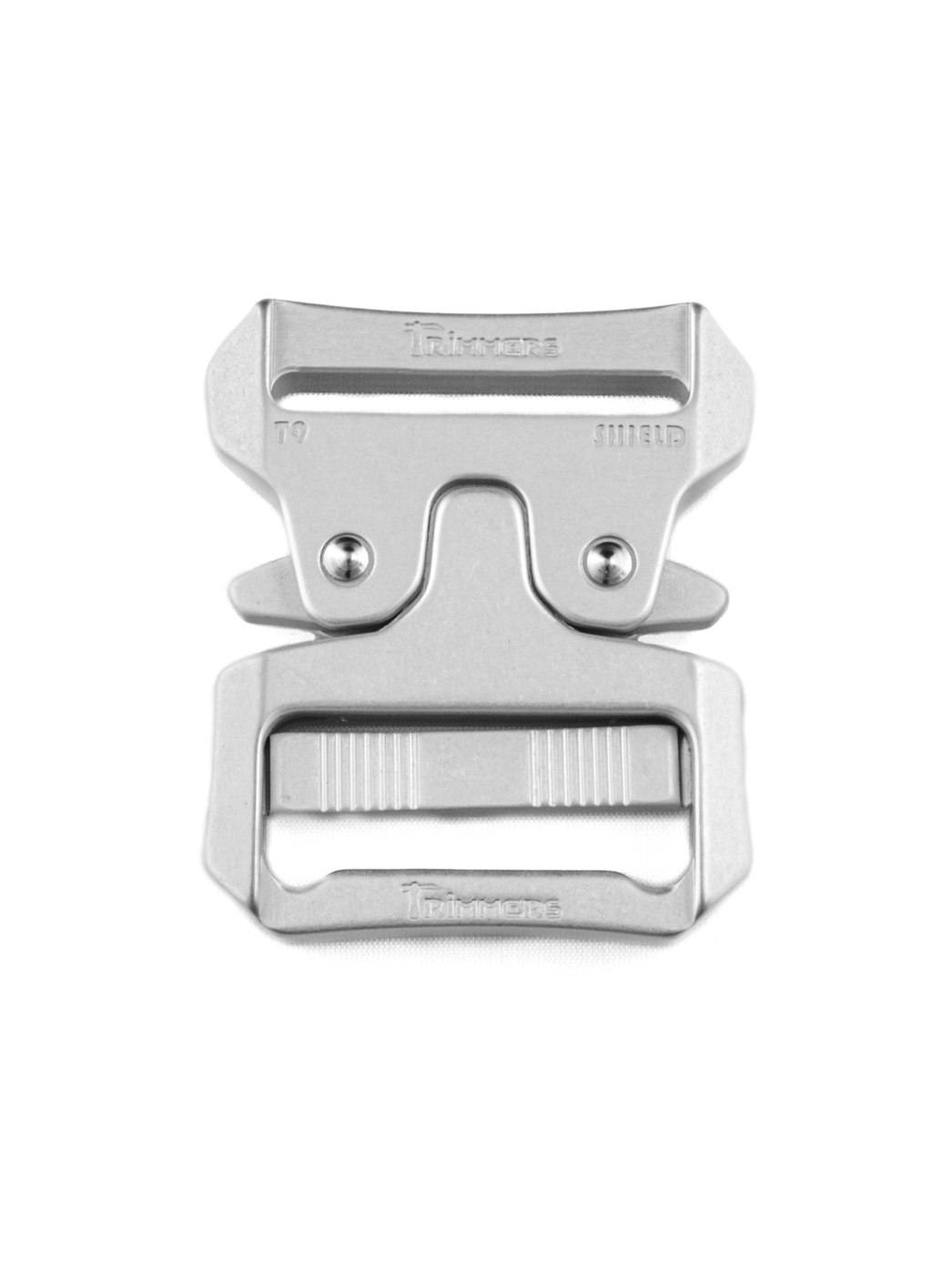

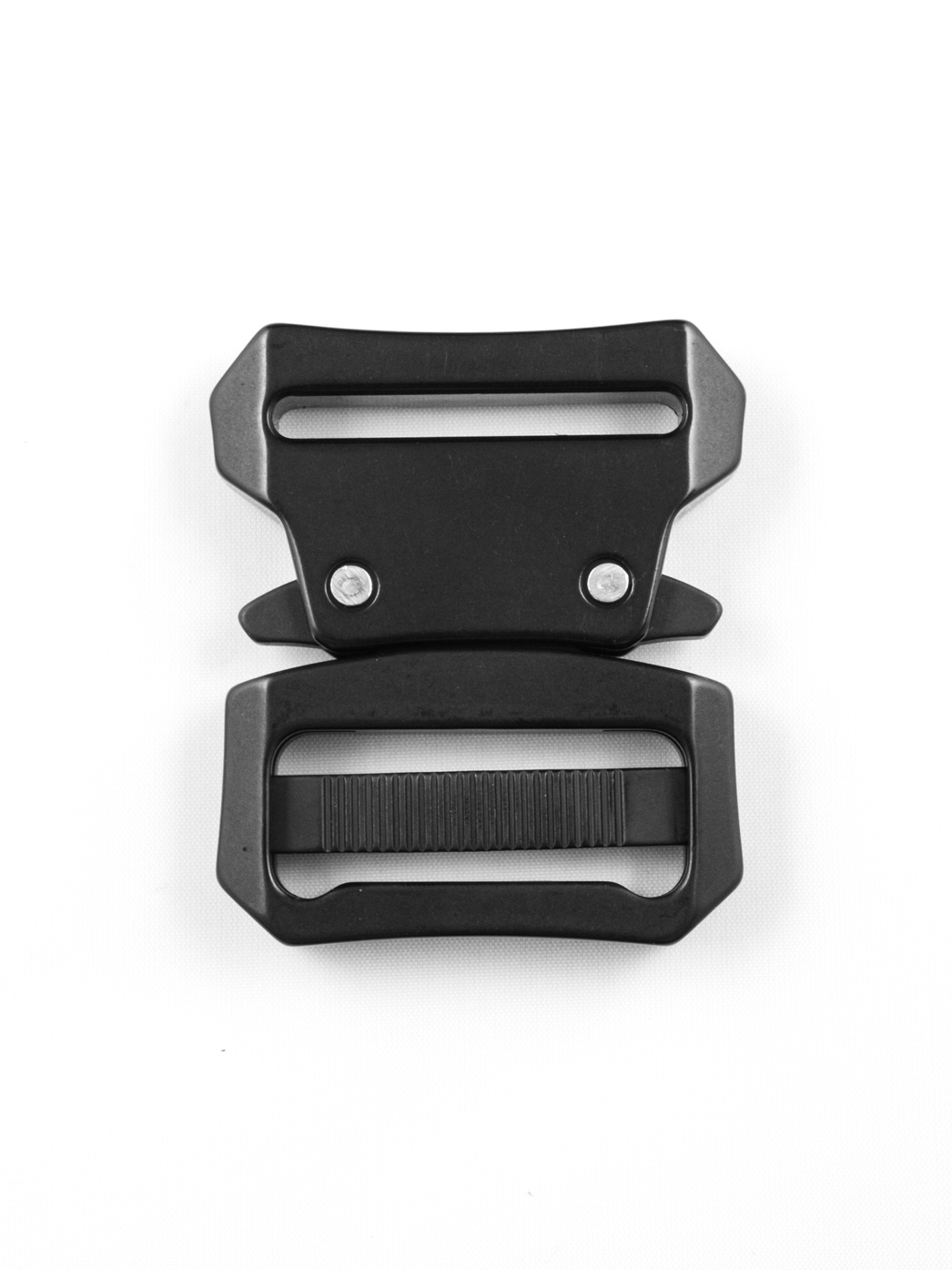

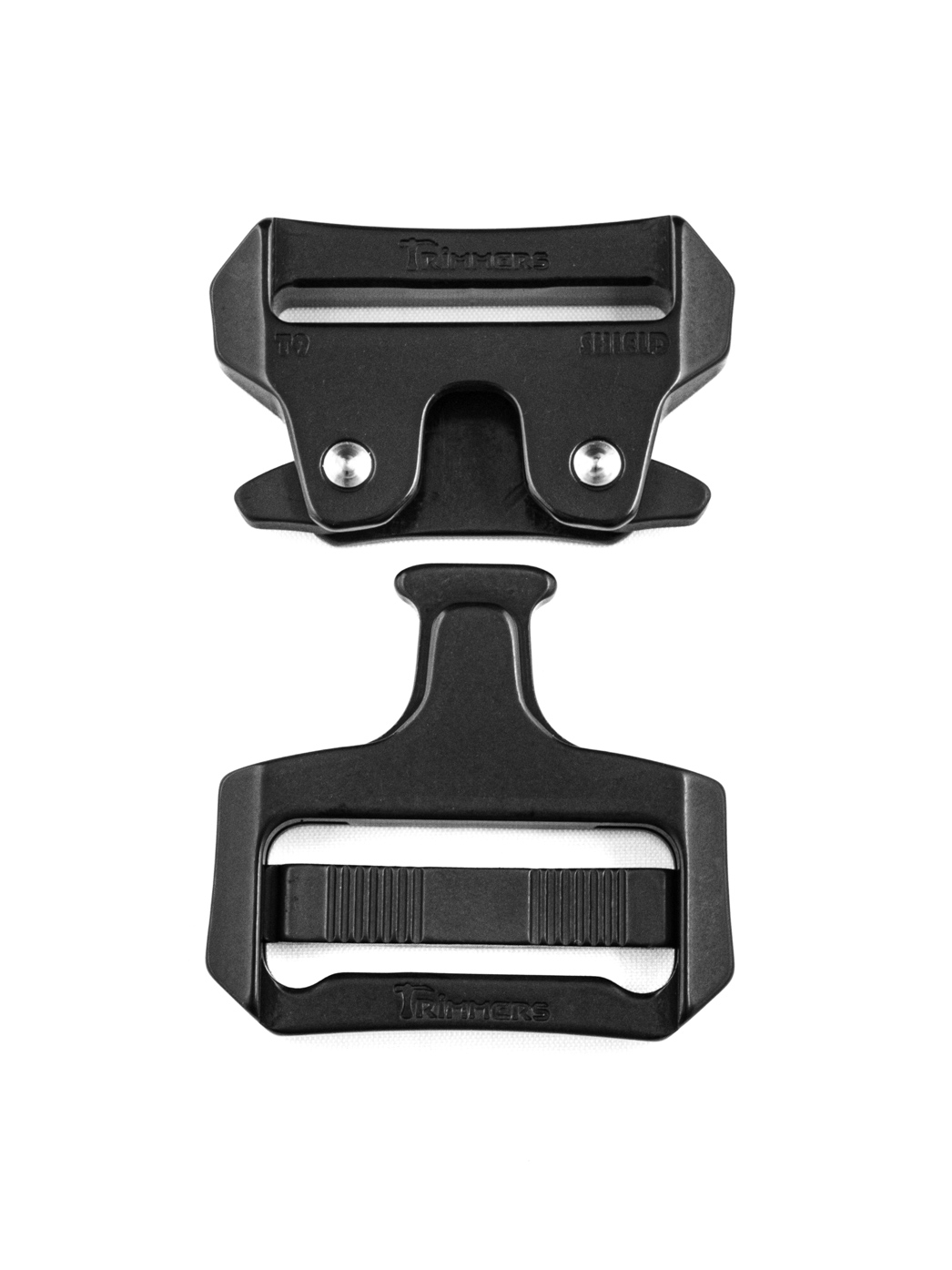

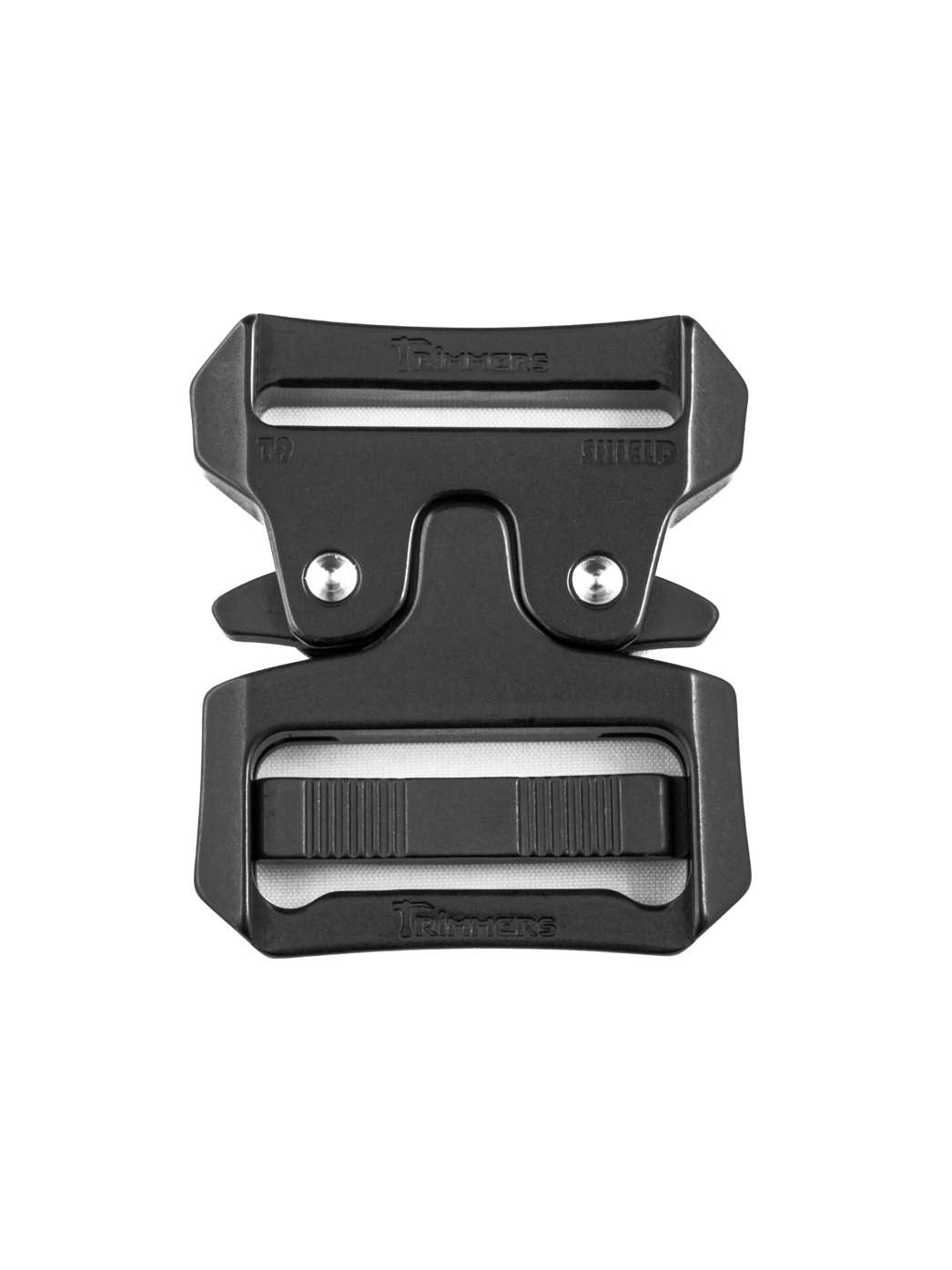

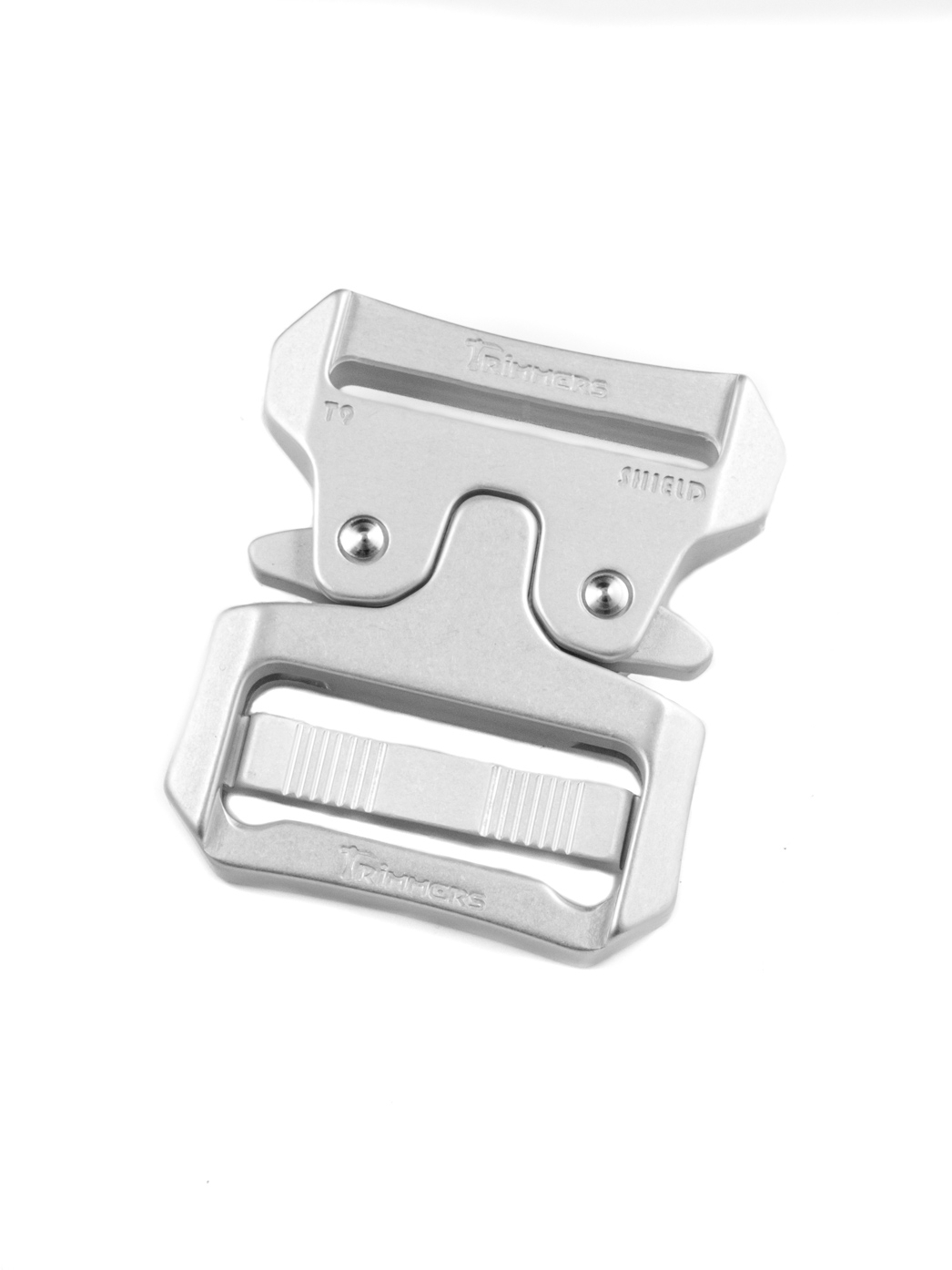

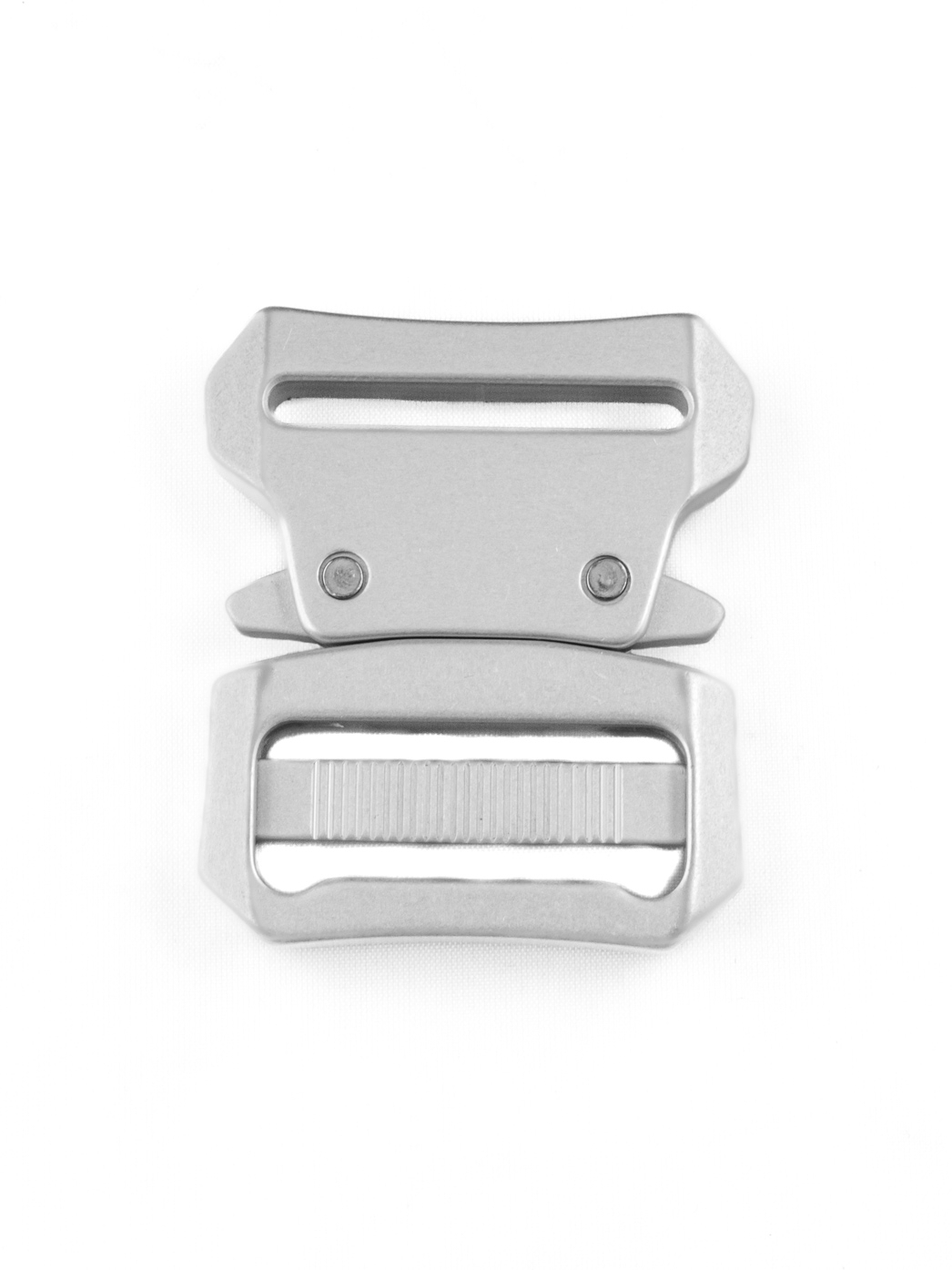

T9 Shield Universal, side release buckle, single side adjustment, CNC 7075 alloy, 38mm

High-quality side release buckle made of lightweight, yet strong, CNC-milled 7075-T6 alloy for 38mm wide webbing. With the flattened edges and the smooth anodized, slightly matte surface, the buckle has a comfortable touch. To open, both operating levers must be pressed simultaneously - this prevents accidental opening and increases safety. On the male part, webbing in the width of 38mm can be looped in. Due to the movable bar, many different webbing straps are reliably fixed in the buckle and can still be adjusted in length. On the female part, the webbing must be attached by sewing. The T9 Shield Universal side release buckle is ideal as a belt buckle, as a buckle on backpacks, bags or luggage. With a laboratory-tested breaking load of 320kg, it is also suitable for demanding applications.

A standardized closure allows the 25mm and 38mm individual parts to be combined. This makes it easy to connect 25mm and 38mm webbing.



Short info

Stock Options
Standard Article
Country of Origin
Asia
Please note
Not suitable for personal safety or safety-related applications

Technical Informations

Thickness
10mm
Weight (g/pcs)
48g/pcs
Breaking Strength
314daN
Components Material
Aluminium
Length
59mm
Width
51mm
Notes on breaking load
The breaking load is determined under defined laboratory conditions and is only a basic guide, not a guarantee. Depending on e.g. the speed of the load, ambient conditions or twisting, the value may vary more or less.
Suitable Webbing Width
40mm
Application
For Webbing, Length Adjustment, Connectors
