T9 Shield Universal, side release buckle, single side adjustment, CNC 7075 alloy, 25mm

Article No.: 72623.SILBMTT

€11.90/piece

incl. 19 % VAT plus

Please select your variant:

Choose a color
In stock.  Deliverable between 2-4 days

Piece

Product information

T9 Shield Universal, side release buckle, single side adjustment, CNC 7075 alloy, 25mm

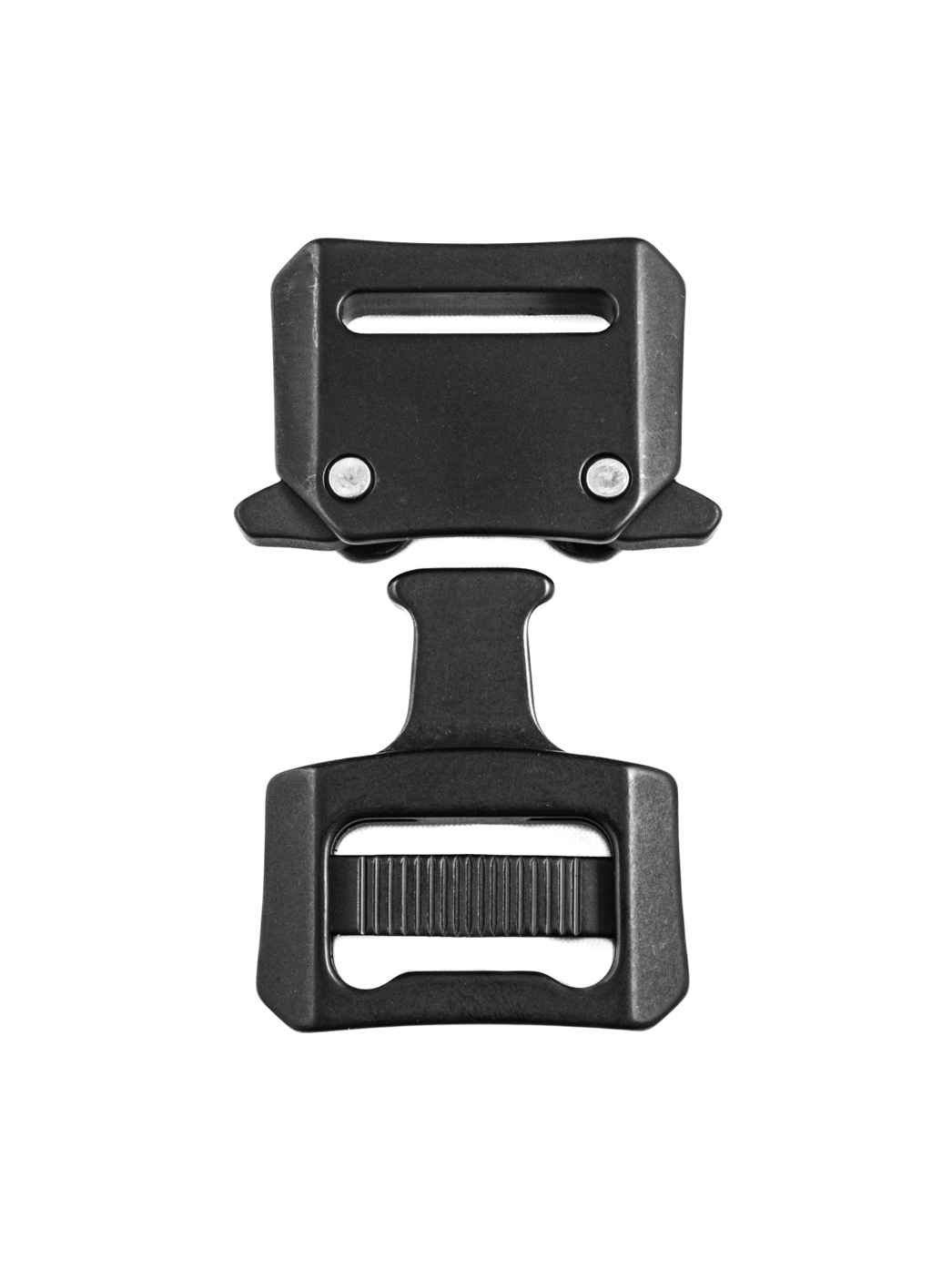

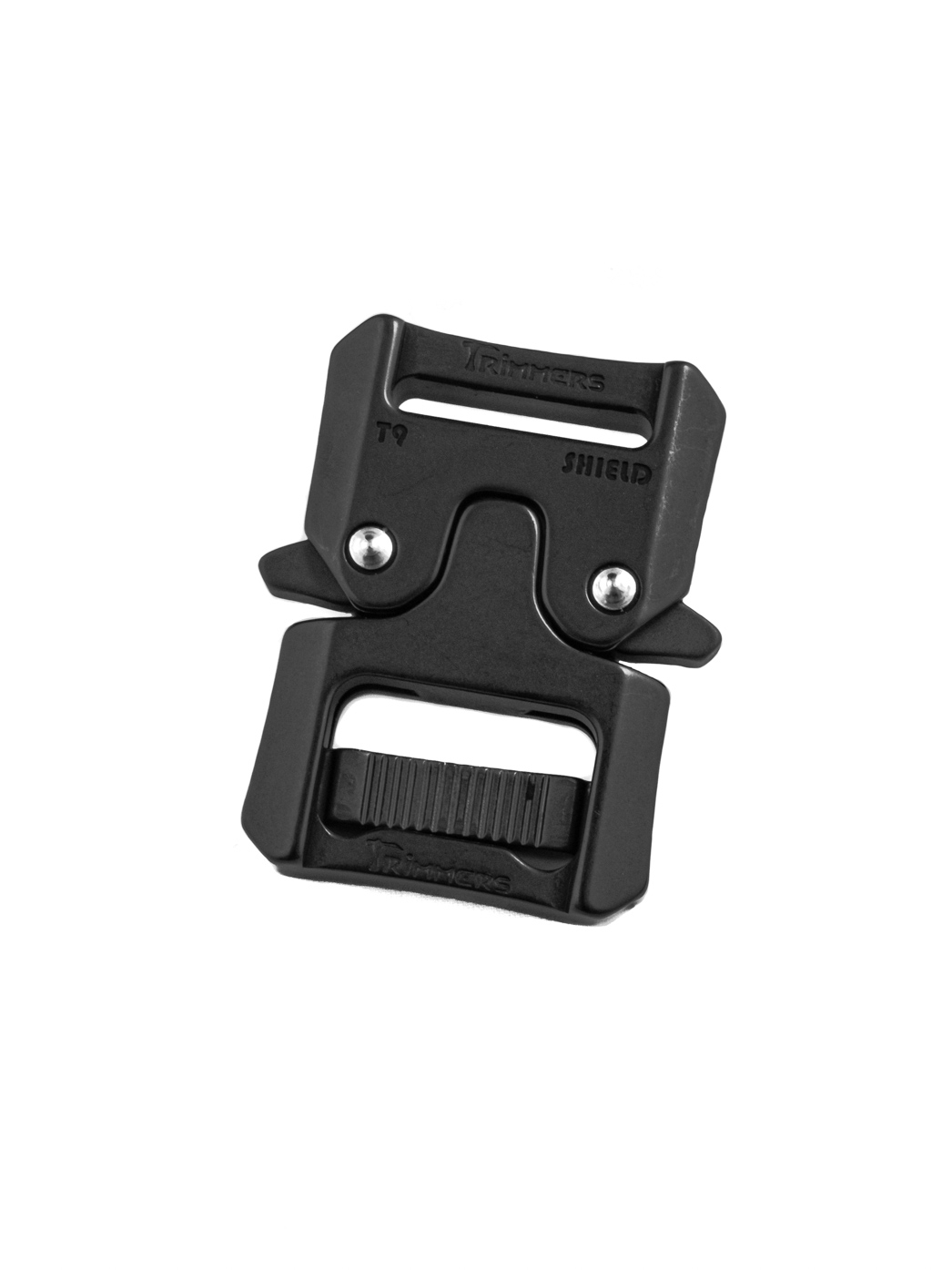

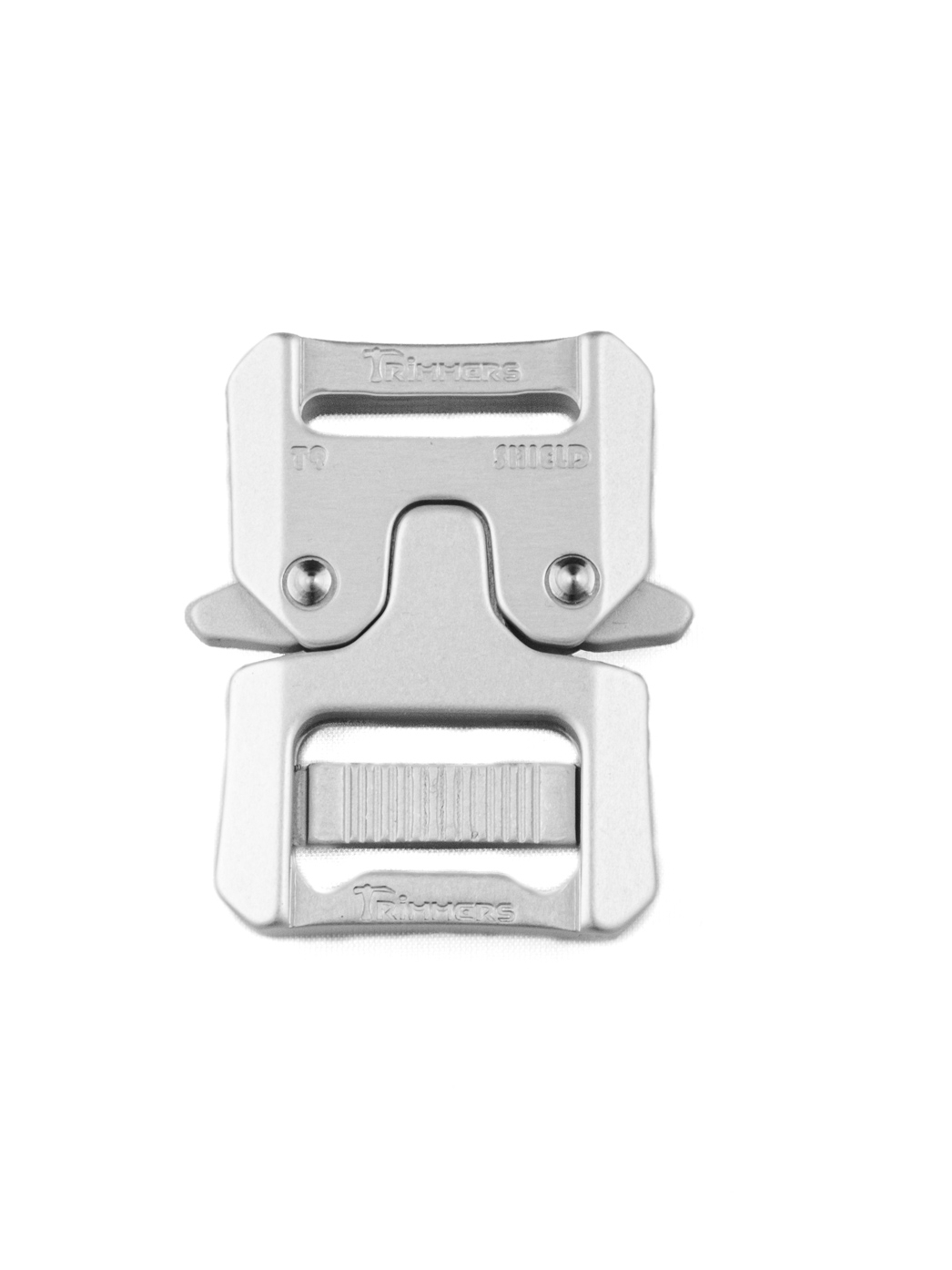

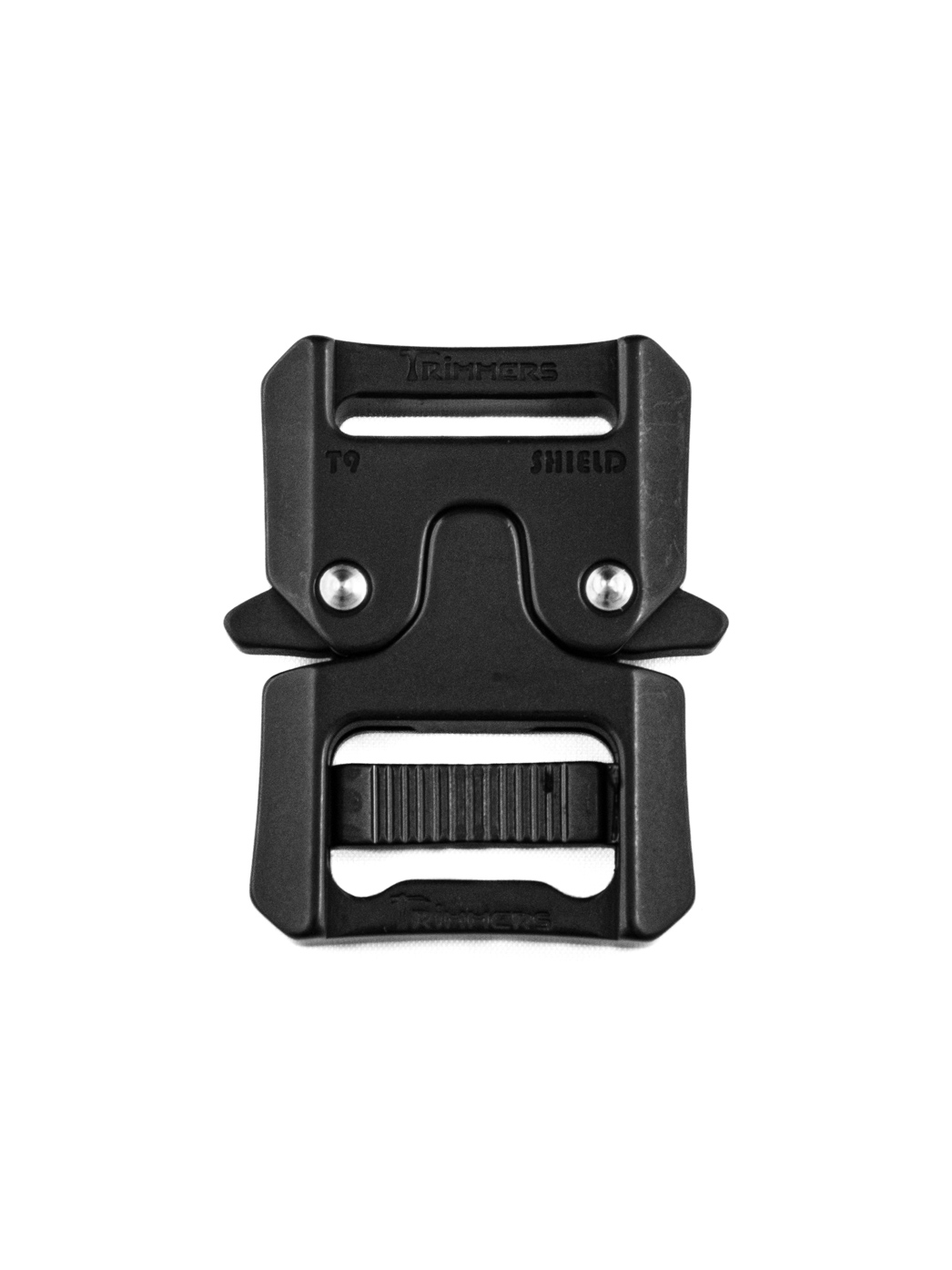

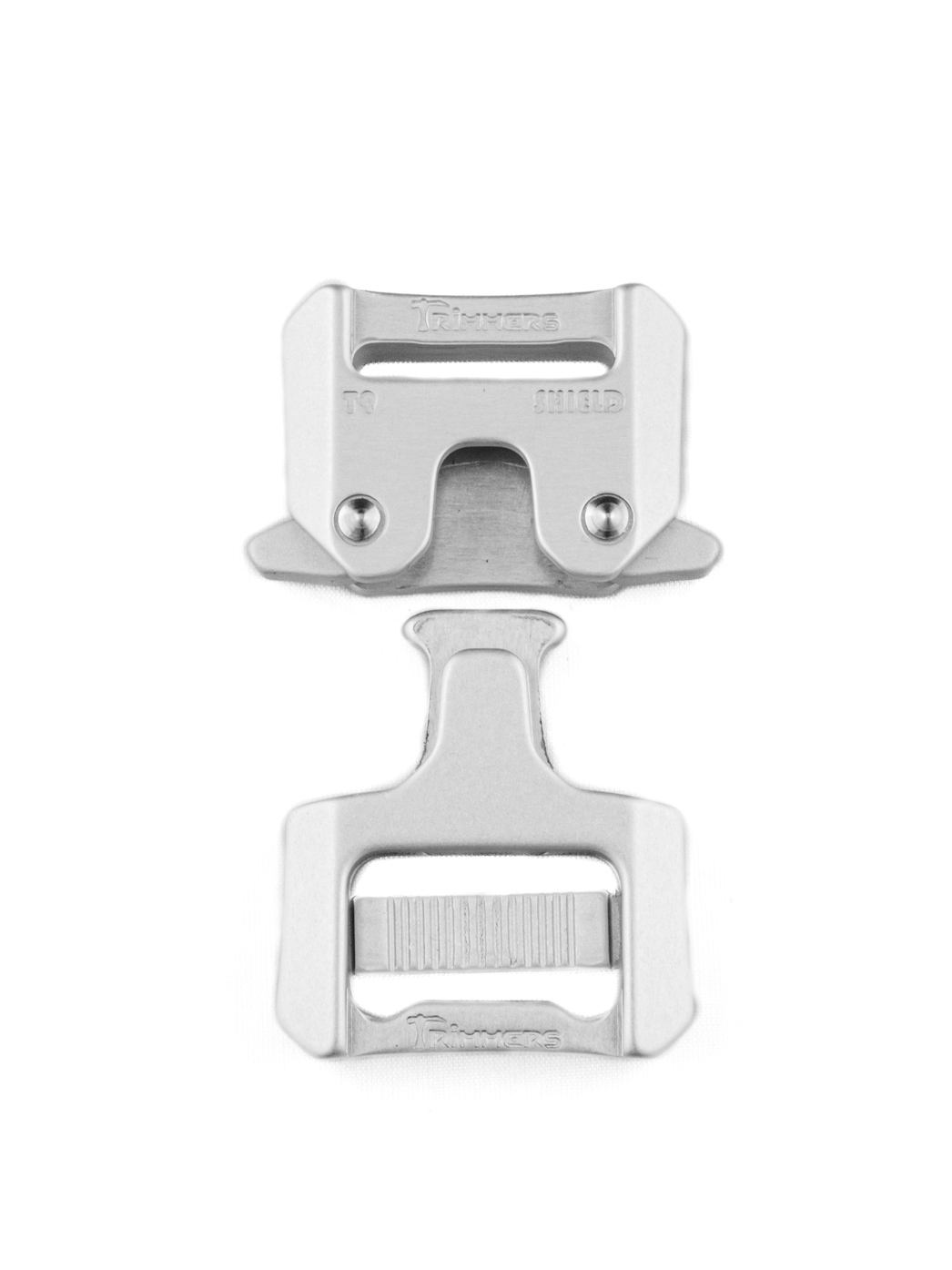

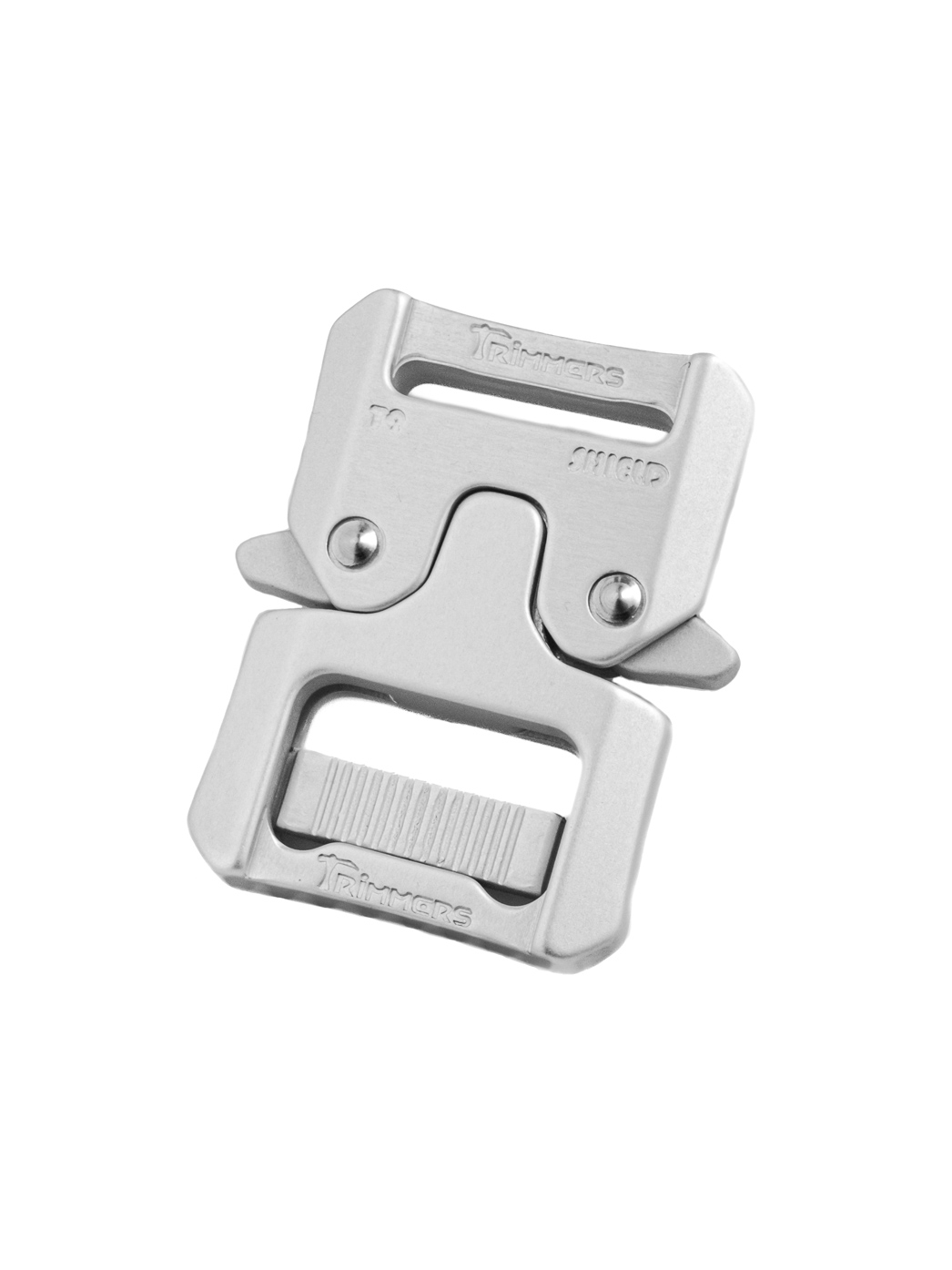

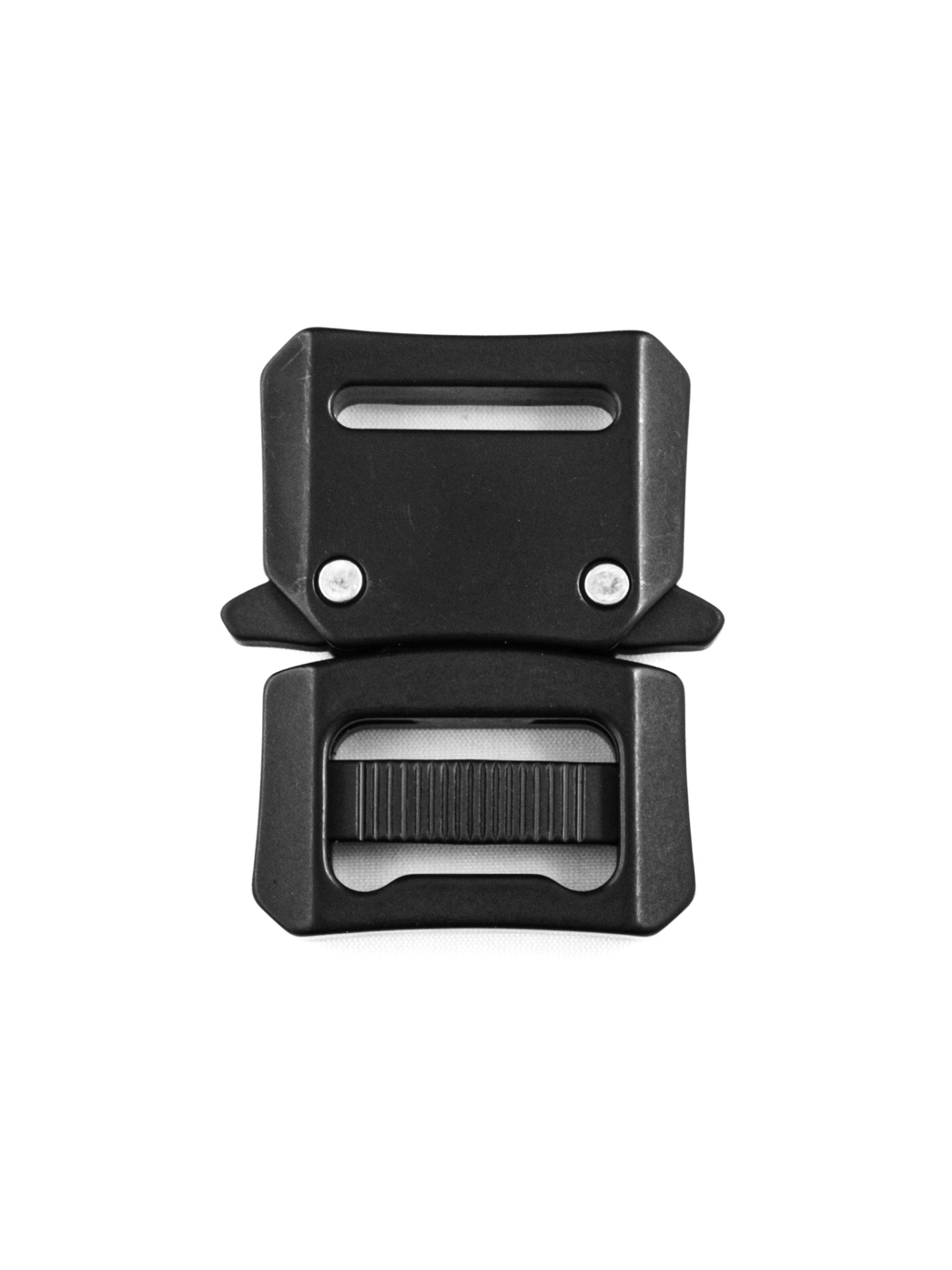

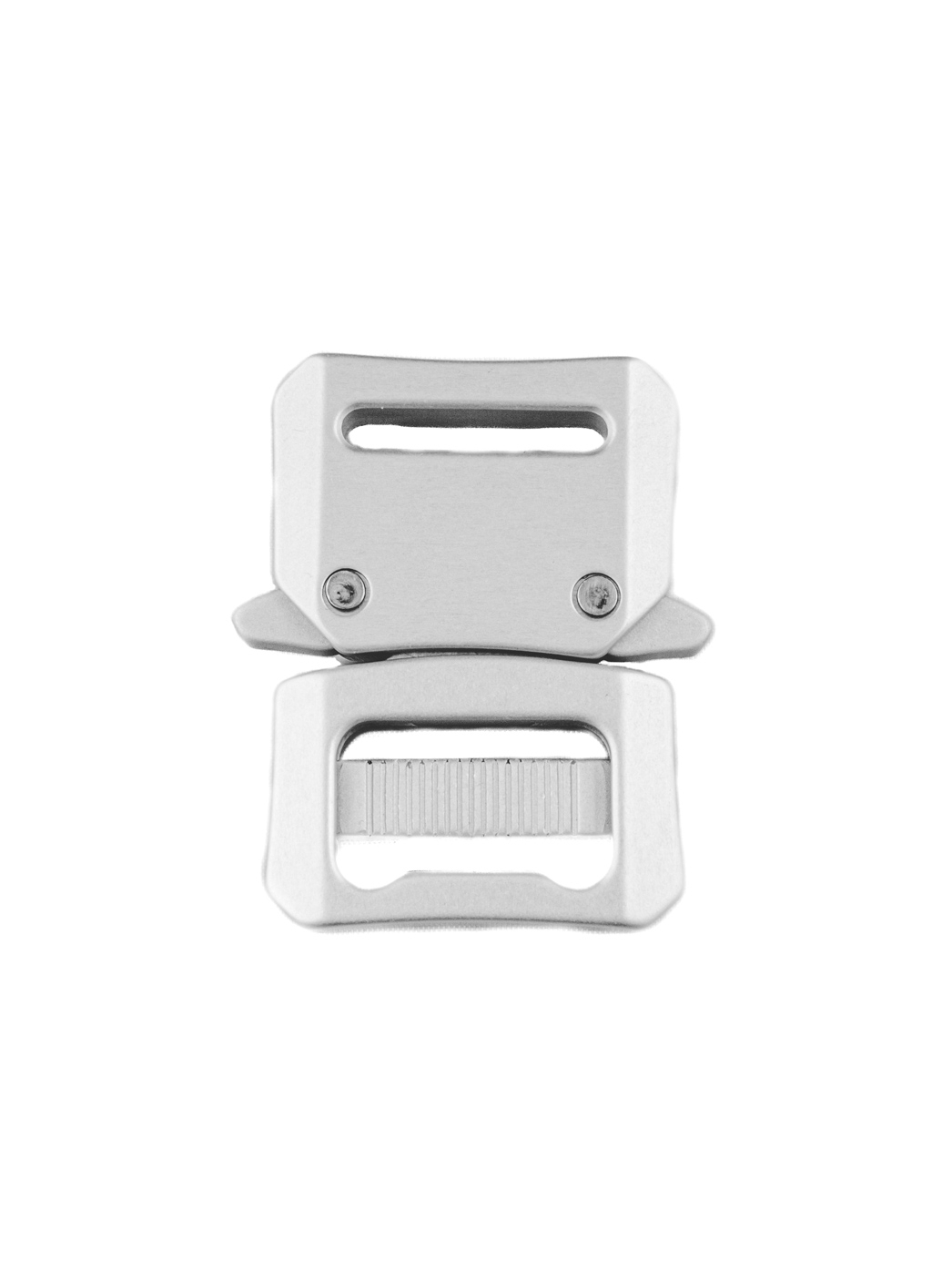

High-quality side release buckle made of lightweight, yet strong, CNC-milled 7075-T6 aluminium for 25mm wide webbing. With flattened edges and smooth anodized, slightly matt surface, the buckle fits comfortably in the hand. To open, both operating tabs are pressed simultaneously - this prevents accidental opening and increases safety. On the male part webbing in the width of 25mm can be looped. Due to the movable bar, many different webbing straps are reliably fixed in the buckle - but can still be adjusted in length. On the female part, the webbing is firmly sewn. The T9 Shield Universal side release buckle is ideal as a robust buckle on backpacks, bags or luggage or as a strong belt buckle. With a laboratory-tested breaking load of 320kg, it is also suitable for demanding applications.

Due to the standardized buckle, the 25mm and 38mm individual parts can be combined with each other. This allows 25mm and 38mm webbing to be easily connected.



Short info

Stock Options
Standard Article
Country of Origin
Asia
Please note
Not suitable for personal safety or safety-related applications

Technical Informations

Thickness
10mm
Weight (g/pcs)
39g/pcs
Breaking Strength
314daN
Components Material
Aluminium
Length
59mm
Width
40mm
Notes on breaking load
The breaking load is determined under defined laboratory conditions and is only a basic guide, not a guarantee. Depending on e.g. the speed of the load, ambient conditions or twisting, the value may vary more or less.
Suitable Webbing Width
25mm
Application
For Webbing, Length Adjustment, Connectors
