SNAP BUCKLE 30 | magnetic buckle, one side length adjustment, 30mm

Article No.: 71299

€5.90/pieces

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

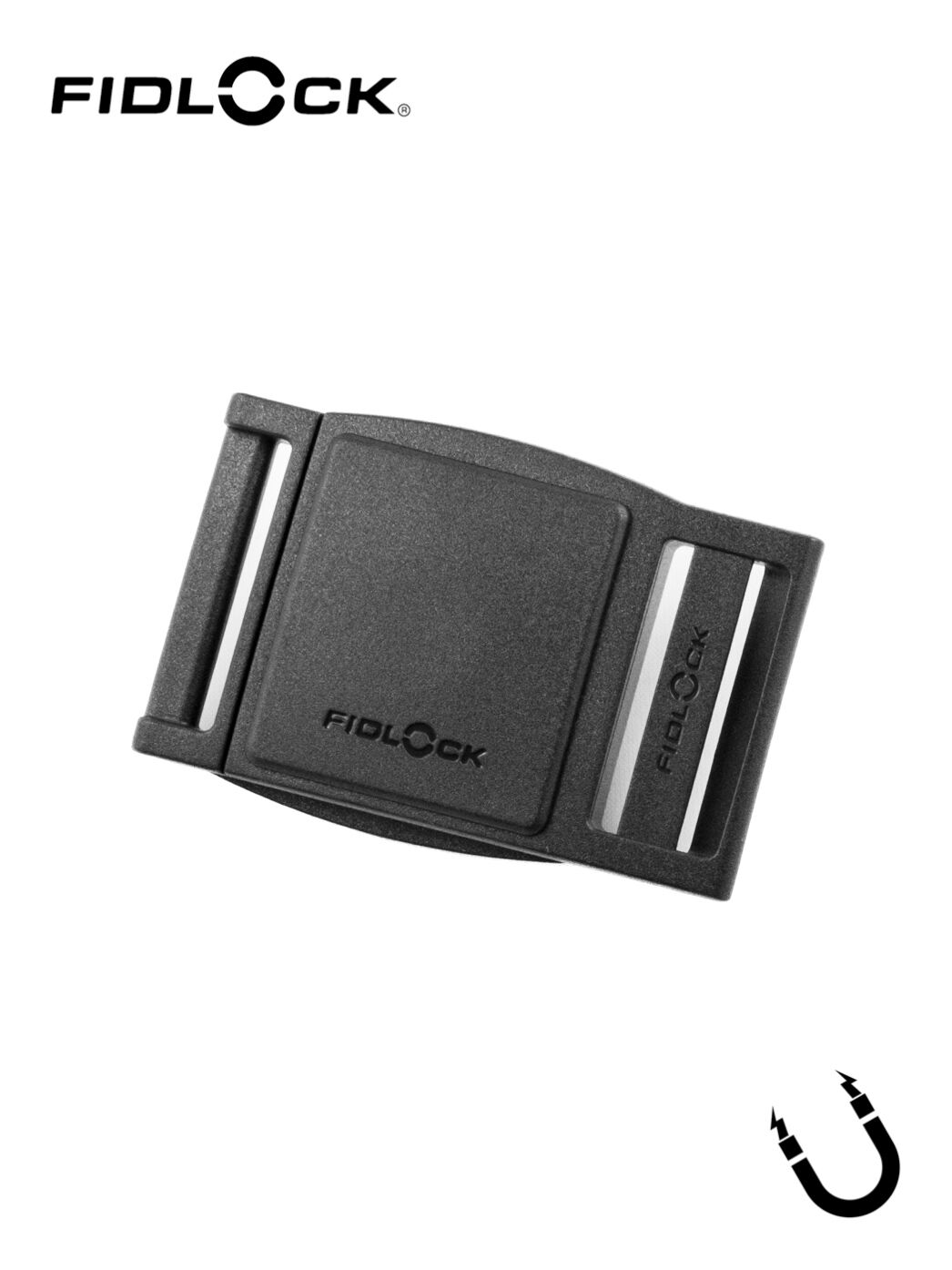

SNAP BUCKLE 30 | magnetic buckle, one side length adjustment, 30mm

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

With the SNAP BUCKLEs, Fidlock's innovative SNAP technology has been integrated into the flash buckle. The result is a flat buckle that allows webbing in widths from 15mm to 30mm to be opened and closed with ease. To open, they are moved sideways. To close, one part is moved towards the counterpart from the front and the magnets inside the buckle cause them to click together automatically.

The SNAP BUCKLE 30 FLAT from Fidlock for 30mm wide webbing is particularly suitable for belts due to its low thickness. It is opened by sliding it sideways. All you need to do to close it is slide the two halves of the buckle towards each other. They snap together automatically thanks to the internal magnet and are held firmly together by a mechanical clasp that clicks into place. The female side has two bars for threading and adjusting the webbing, the male side has one bar which the webbing is looped around and then sewn in place.



Short info

Stock Options
Standard Article
Country of Origin
China
Warning
Magnets! The buckles are magnetic and should be used with care close to things or people that are sensitive to magnets.
Safety note
Not suitable for safety-relevant applications, such as helmets, etc.
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Thickness
11mm
Weight (g/pcs)
21,1g/pcs
Breaking Strength
45kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodynium magnets
Components Material
Nylon
Height
63mm
Width
42mm
Suitable Webbing Width
30mm
Application
For Webbing, Length Adjustment, Connectors
