SNAP BUCKLE 15 | magnetic buckle, one side length adjustment, 15mm

Article No.: 71291

€4.40/pieces

incl. 19 % VAT plus

In stock.  Deliverable between 2-4 days

Piece

Product information

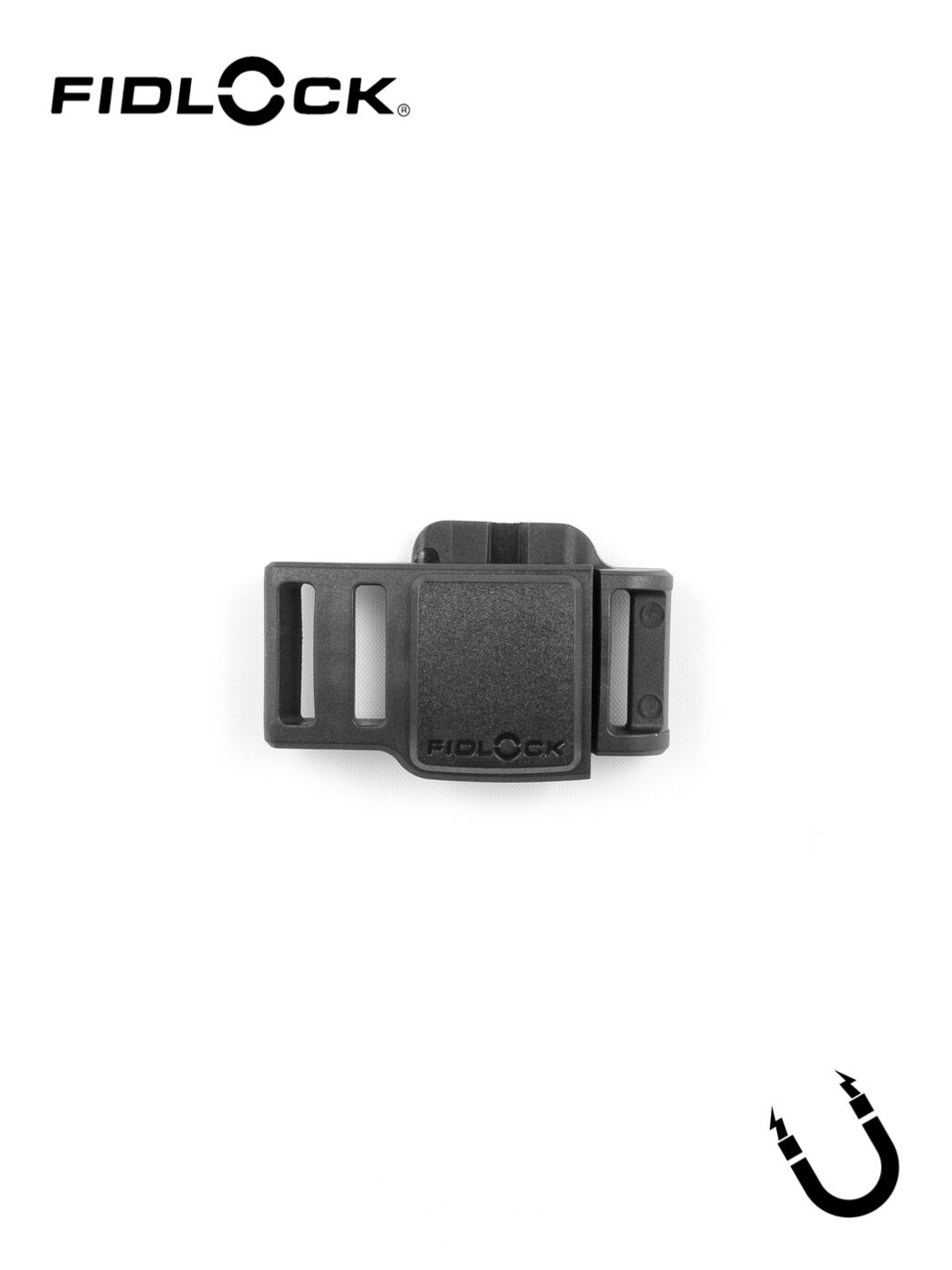

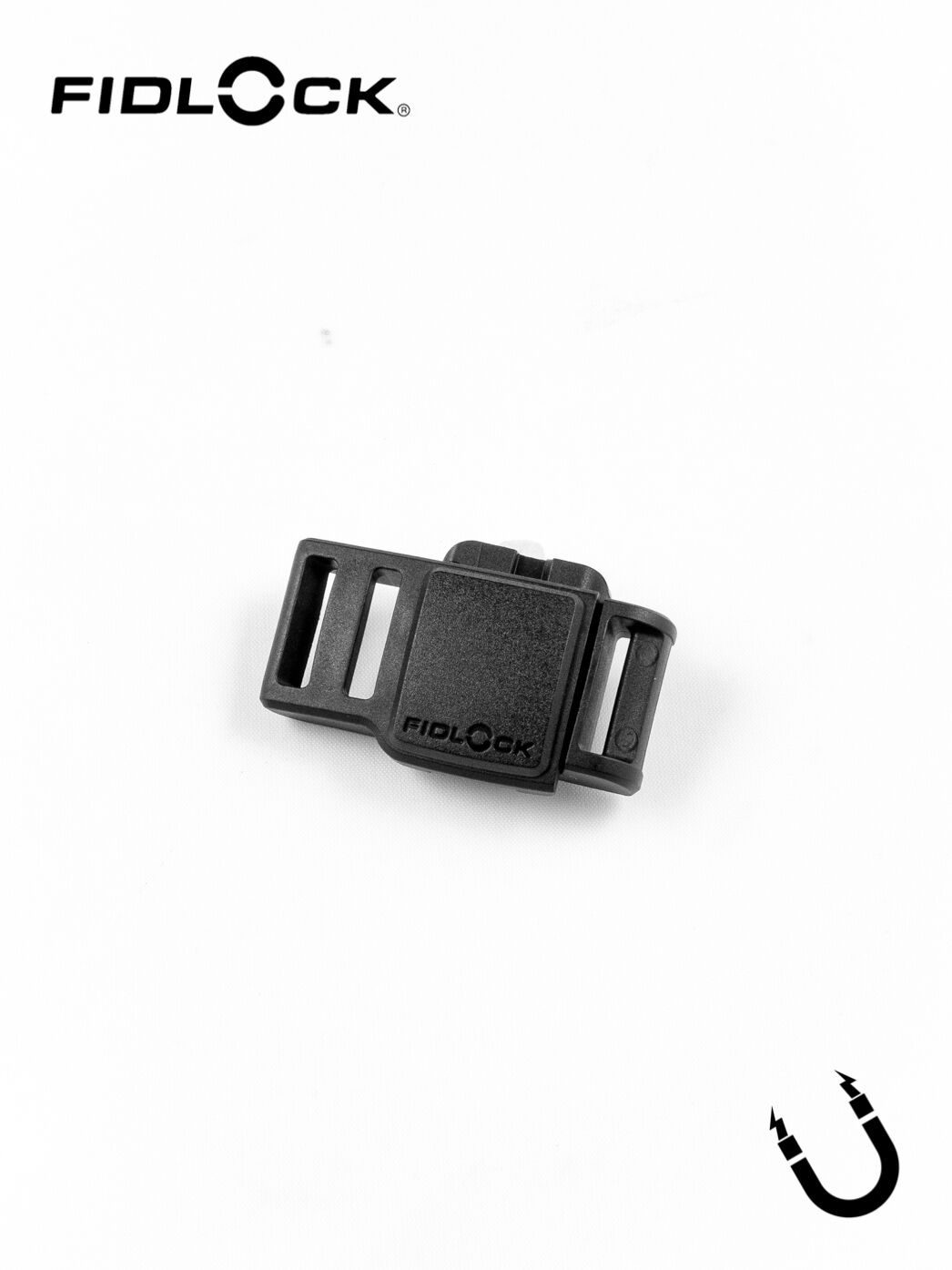

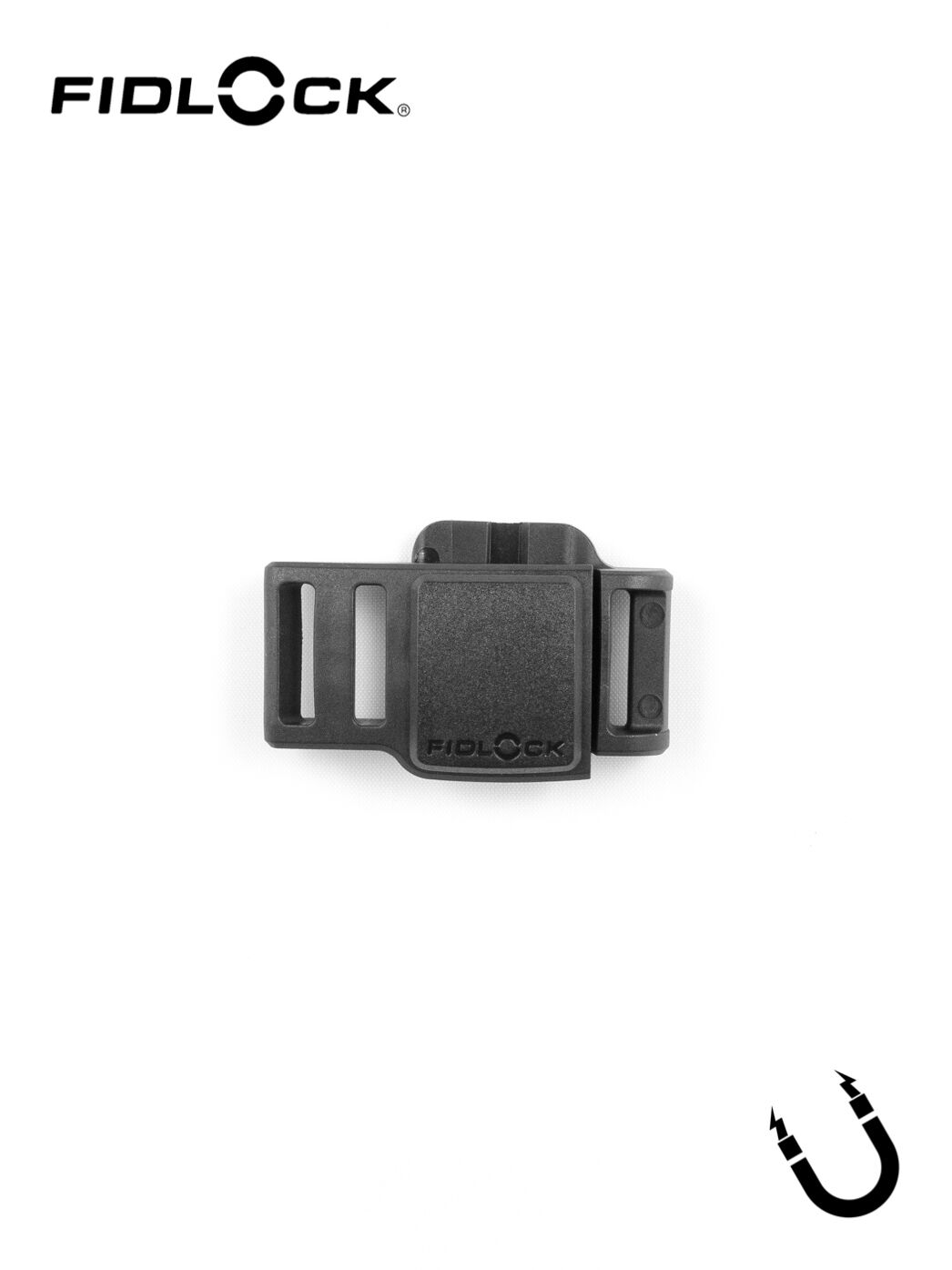

SNAP BUCKLE 15 | magnetic buckle, one side length adjustment, 15mm

Fidlock has come up with something very special for its fasteners: Small neodymium magnets are hidden inside, which automatically click together when the parts are brought together. A mechanical latching mechanism automatically locks the fasteners tightly. A slight impulse in the right direction is enough to open them. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or when wearing gloves - and still secure. Added to this is the elegant look and high-quality manufacturing with robust, reliable materials.

With the SNAP BUCKLEs, Fidlock's innovative SNAP technology has been integrated into the quick-release buckle. The result is a flat buckle with which webbing in widths from 15mm to 30mm can be conveniently opened and closed. To open, they are moved sideways. To close, one part is pushed towards the counterpart from the front and the magnets inside the buckles click together automatically.

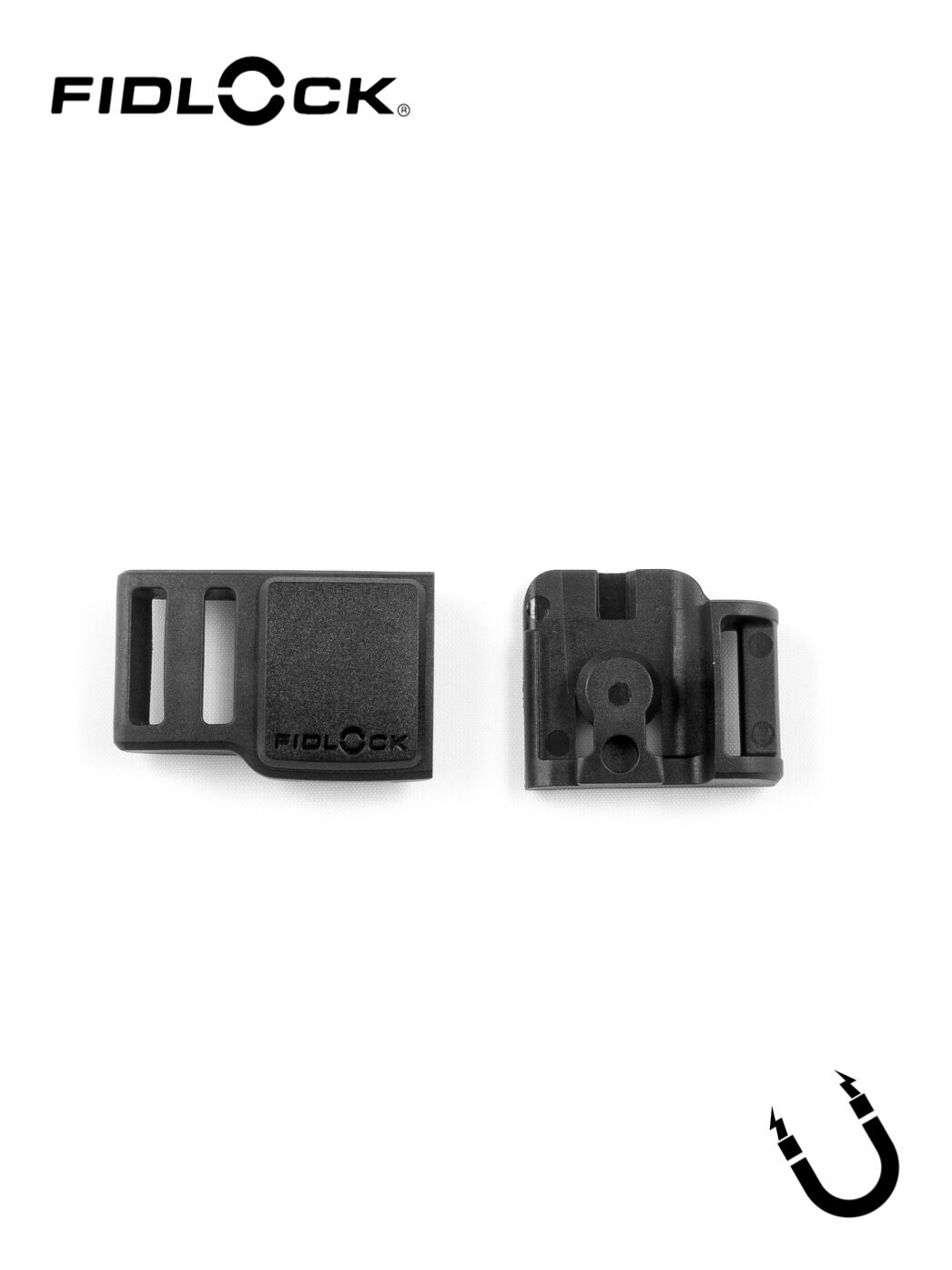

The SNAP BUCKLE 15 for 15mm wide webbing is opened by sliding it sideways. To close, it is sufficient to push the two halves of the fastener towards each other. They snap together automatically thanks to the internal magnet and are held firmly together by a mechanical latch that clicks into place. The female side has two bars for threading and adjusting the webbing, while the male side has one bar which the webbing is looped around and then sewn in place.



Short info

Stock Options
Standard Article
Country of Origin
China
Hint
The female part can also be used together with the SNAP MALE SCREW S.
Warning
Magnets! The buckles are magnetic and should be used with care close to things or people that are sensitive to magnets.
Safety note
Not suitable for safety-relevant applications, such as helmets, etc.
Care instruction:
Washable up to 60°C, do not tumble dry

Technical Informations

Thickness
13mm
Weight (g/pcs)
12,4g/pcs
Breaking Strength
55kg
Material
Polyamid (PA) (Nylon) 66GF fibre-glass reinforced nylon, neodynium magnets
Components Material
Nylon
Height
45mm
Width
29mm
Suitable Webbing Width
15mm
Application
For Webbing, Length Adjustment, Connectors
