MINI TURN HANDLE A 50 | Fidlock tilt-fastener with magnet, 50mm

Fidlock has come up with something very special for his magnetic fasteners: inside every buckle, there are small neodymium magnets that automatically click together when the parts are put together. By a mechanical detent, the closures are automatically closed tight. To open a light impulse in the right direction is dufficient. Thanks to this ingenious technology, Fidlock buckles are extremely easy to use - even with one hand or with gloves - and still safe. In addition to that they habe noble appearance and high-quality workmanship with robust, reliable materials.

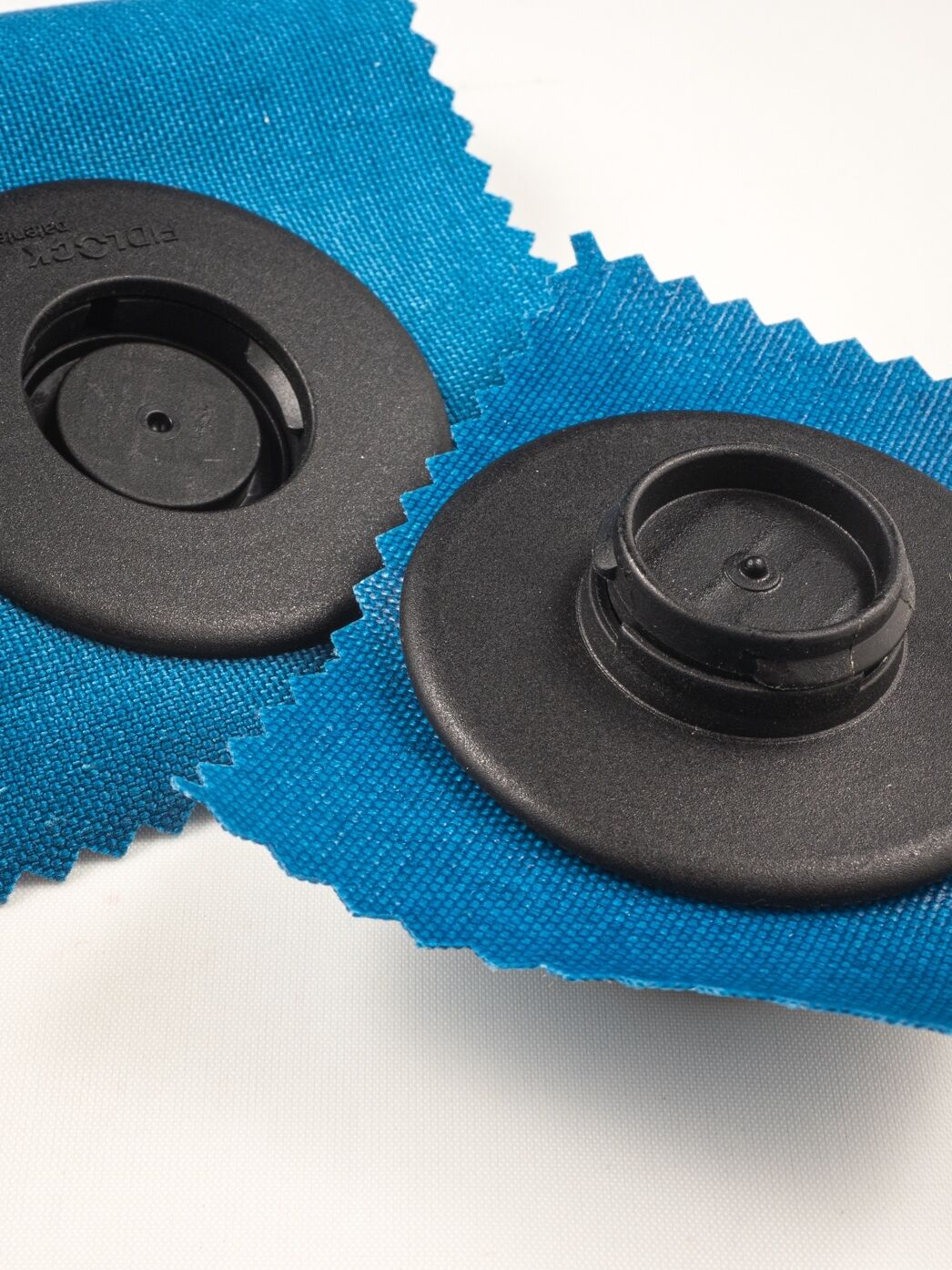

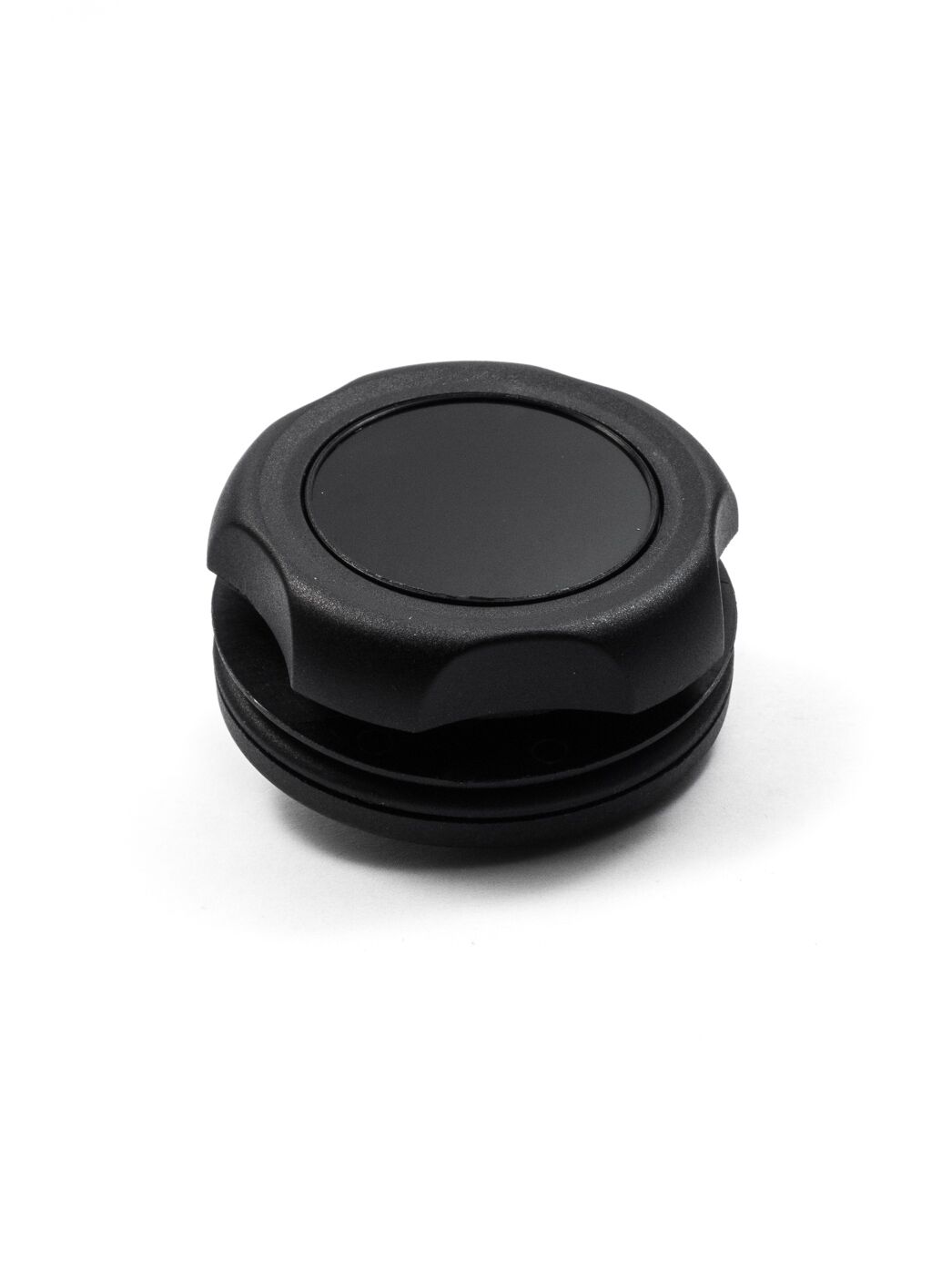

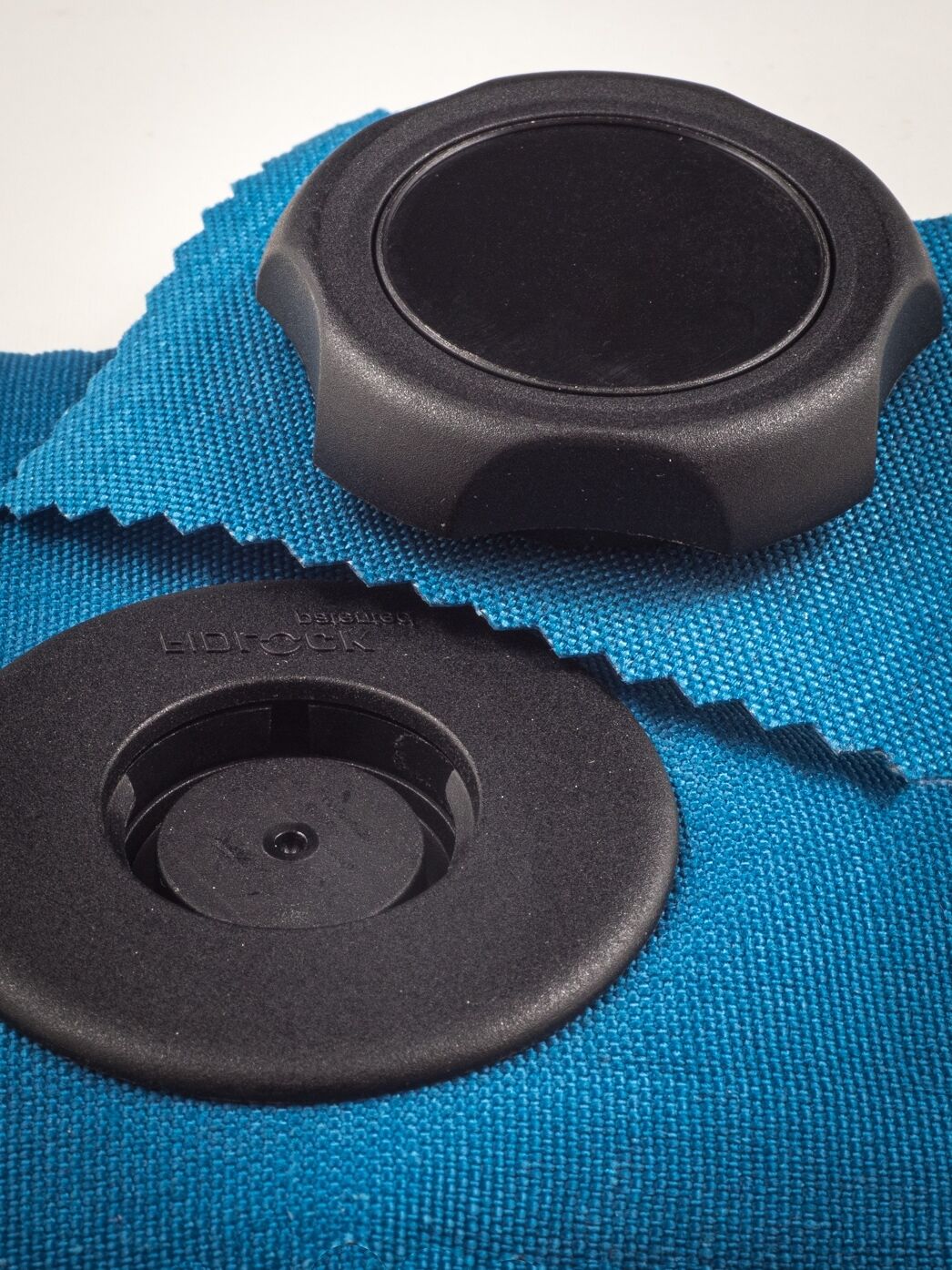

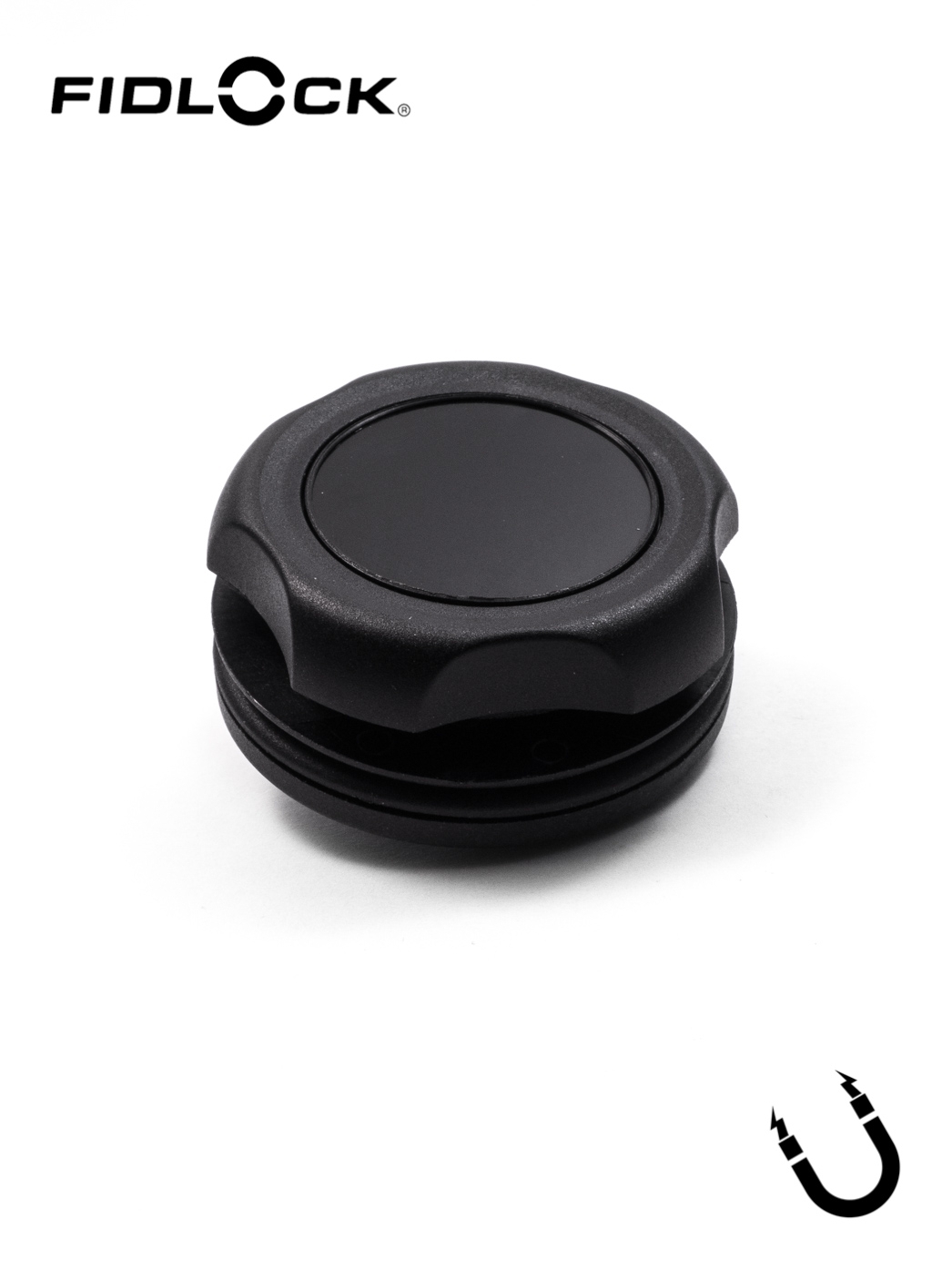

The Fidlock MINI TURN HANDLE A 50 screw cap is opened by turning the cap, closing it with the two halves of the stopper, and they snap together automatically with the magnets and are held together tightly by a snap-in mechanical stopper. and the lower part are bolted firmly into the fabric using a backing plate, guaranteeing firm hold in 1mm to 2.6mm thick material, without the need for special tools.

Downloads:

<a alt = " Installation instructions for the MINI TURN handle " title = " Installation instructions for the MINI TURN handle " href = "https://www.extremtextil.de/media/pdf/fb/f2/57/02_Installation Manual-Fidlock Mini-Turn-ThreadeYXkQP4Mt3s6w.pdf " target = " _ blank "> Installation Instructions for the MINI TURN handle </a>

<a alt = " Template for installing the MINI TURN handle " title = " Template for installing the MINI TURN handle " href = "https://www.extremtextil.de/media/pdf/78/09/19/Template_MINI_TURN_thread_OverviewsIaj30vhtlNoL.pdf " target = " _ blank "> Template for installing the MINI TURN handle </a>

We are still working on the english descriptions. This is currentls an automatically translated text, so please excuse any unclear formulations or errors. In case you have any questions, please send us an E-Mail.

Diameter: 50mm

Hole diameter upper part: 27mm

Hole diameter underteil: 36mm

Min. Material thickness: 1mm

Max. Material thickness: 2,6mm

Absolute Height: 26mm
