ECOPAK® EPLX200, recycling-backpack-laminate, 146g/sqm

  • 72447 72447.SW
28.90EUR/Meter

incl.19% tax. plus shipping costs

Please choose your option:

Reset selection
In stock - delivery time 2-4 working days**
Meter

Price per running Meter

72447 72447.SW

Product information


ECOPAK® EPLX200, recycling-backpack-laminate, 146g/sqm

ECOPAK™ by Challenge Sailcloth is a backpack laminate made from 100% recycled polyester. Similar to a sailcloth laminate, this fabric laminates an outer fabric together with a UV-stable, highly waterproof polyester film or ripstop polyester. The strong, blue CrossPly polyester fibres lying in a diamond shape between the layers increase the tear resistance and prevent the material from stretching in all directions. In addition, the CrossPly fibres give ECOPAK™ its typical, technical look. In the EPLX versions, the smooth film is on the inside; in the EPX styles, a lining of 70den ripstop polyester has been laminated on. This lining additionally reinforces the fabric, e.g. at particularly stressed seams, and ensures a light interior in backpacks and bags. The area of use is determined by the strength of the outer fabric and the associated abrasion and tear resistance.

In developing ECOPAK™, Challenge Sailcloth focused on sustainability in addition to performance:

- All components of the ECOPAK™ laminates are made from 100% recycled polyester. This means that metre for metre, over 20 plastic bottles are recycled and more than 450g of carbon dioxide is saved.

- The outer fabric is made from REPREVE® yarns collected in the ocean, all other components are made from used PET bottles

- Only FC-free C0 impregnations are used.

- No VOCs (Volatile Organic Compounds) are used in the production of ECOPAK™, all adhesives are solvent-free

- Thanks to an innovative production process, energy-intensive drying processes during lamination are reduced

- ECOPAK™ lies very flat when cut and has a very uniform CrossPly fibre from edge to edge - this prevents waste when cutting to size

- The polyester outer fabric used is similarly abrasion resistant to fabric made of nylon and is therefore very durable

- Because ECOPAK™ is made from 100% polyester, it is recyclable

ECOPAK® EPLX400 combines a 400den recycled polyester with a matt, waterproof and UV-stable 0.5mm polyester film. In between, visible from the inside, are the blue CrossPly fibres at a 45° angle. The 400den recycled outer fabric of ECOPAK® EPLX400 is twice as abrasion resistant as conventional 420end nylon. Well suited for bags with a separate lining or as a stand-alone bag for high durability at low weight.

Short info

Range of Application: Backpack
Properties: fast drying, FC-free impregnation, high abrasion resistant, impregnated, inelastic, Recycling, ultralight, waterproof (more than 5000mm), windproof, PFC-free C0 impregnation
Stock Options: Complete rolls available from stock, Standard article

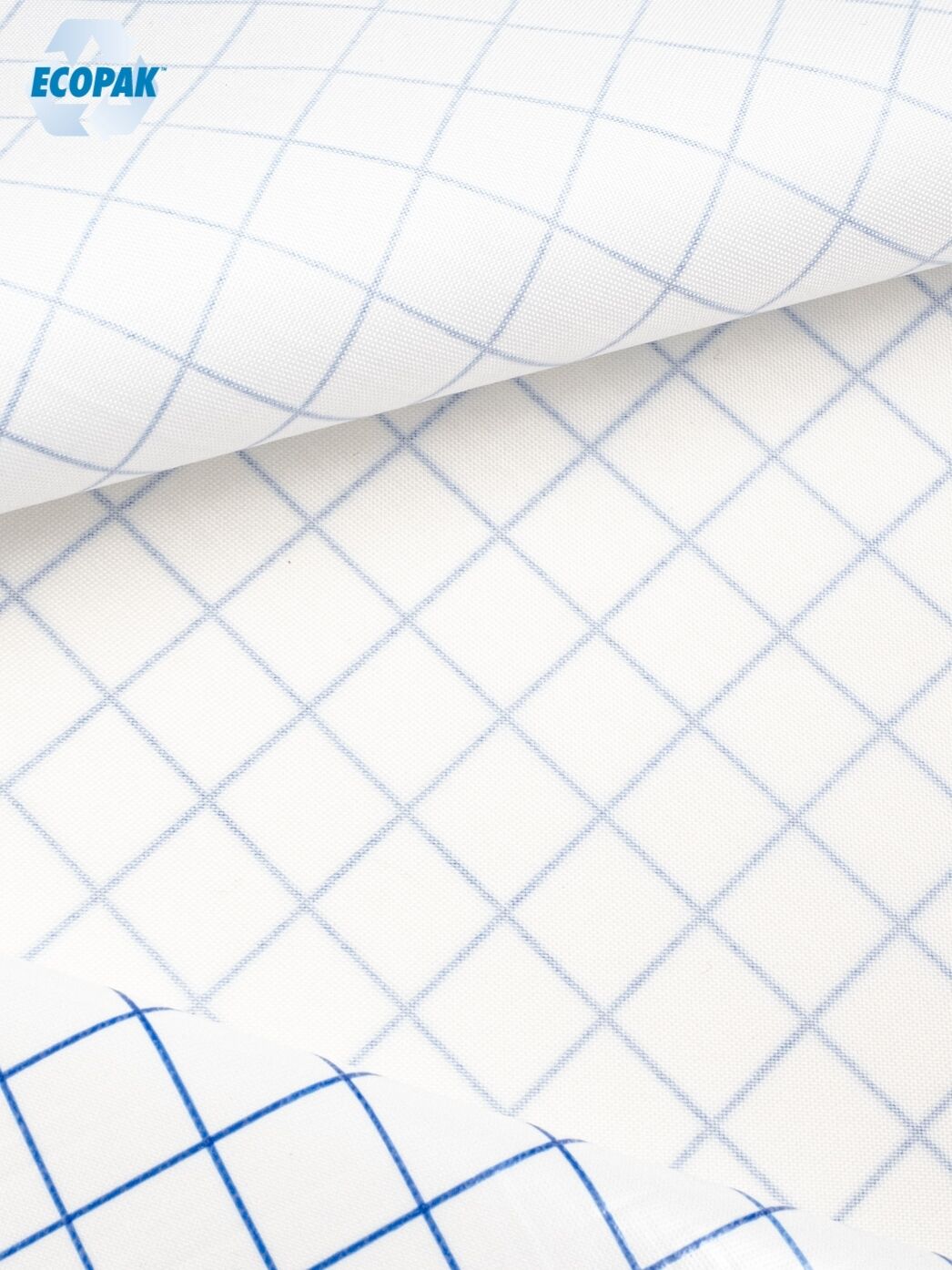

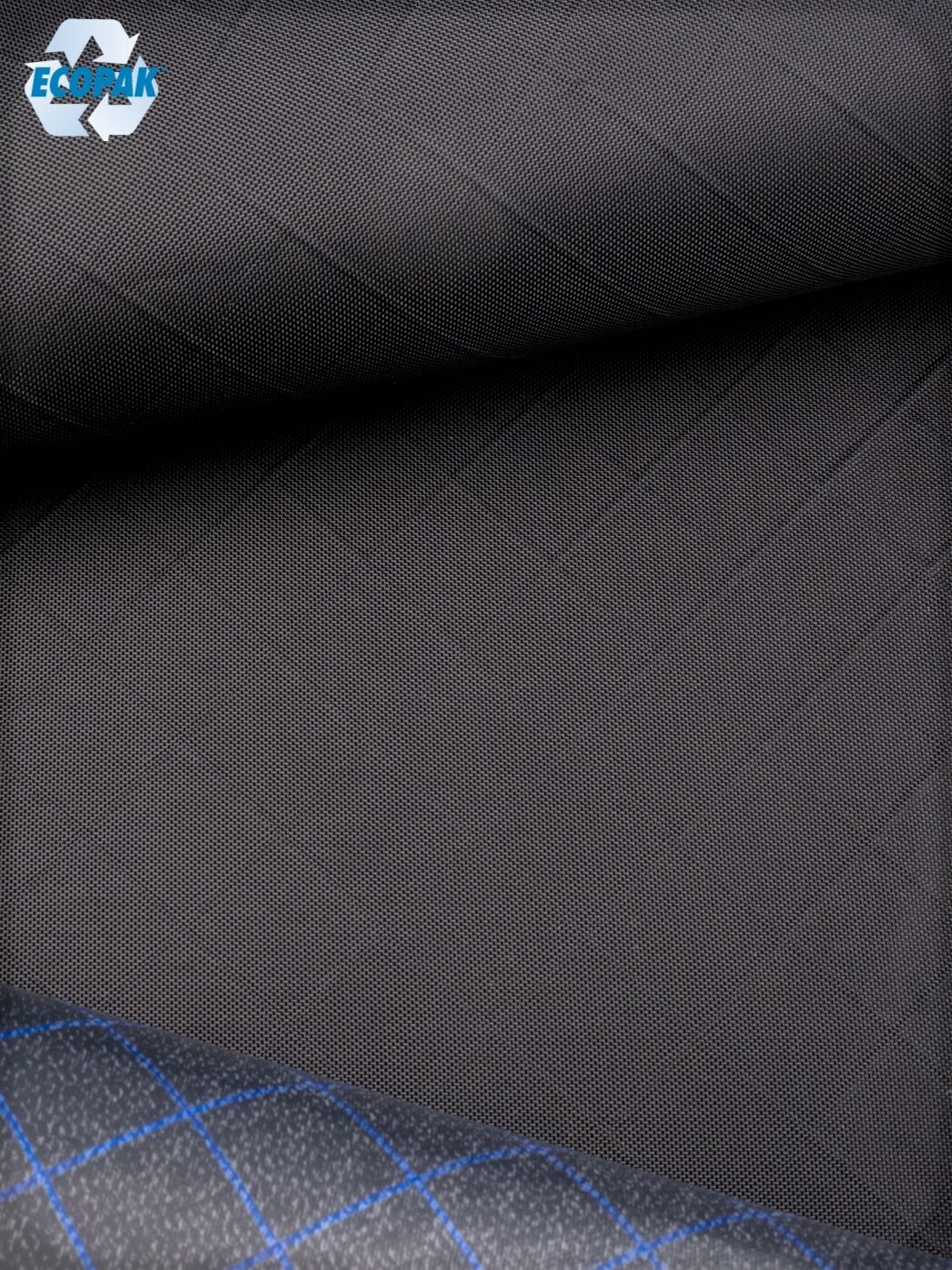

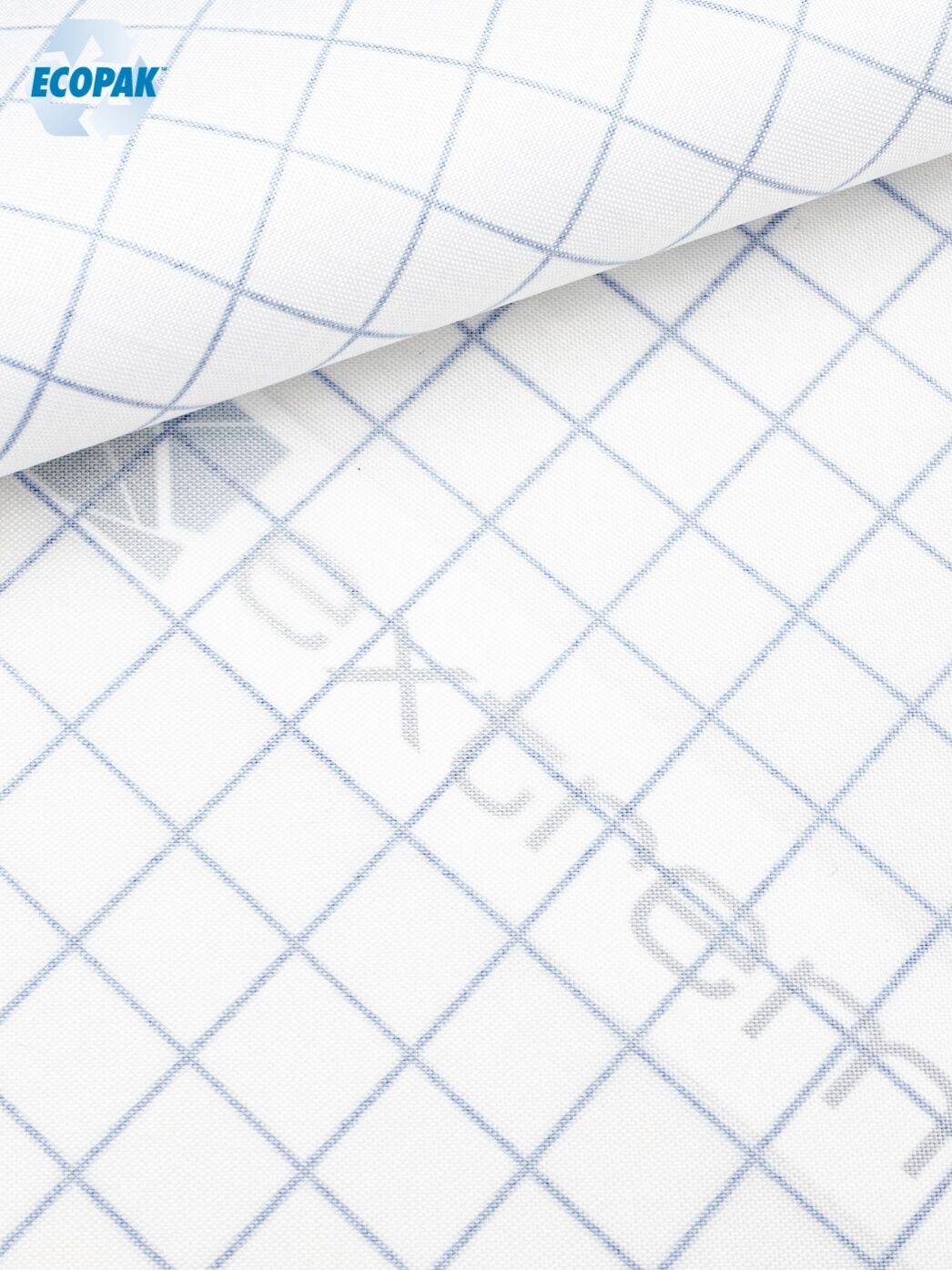

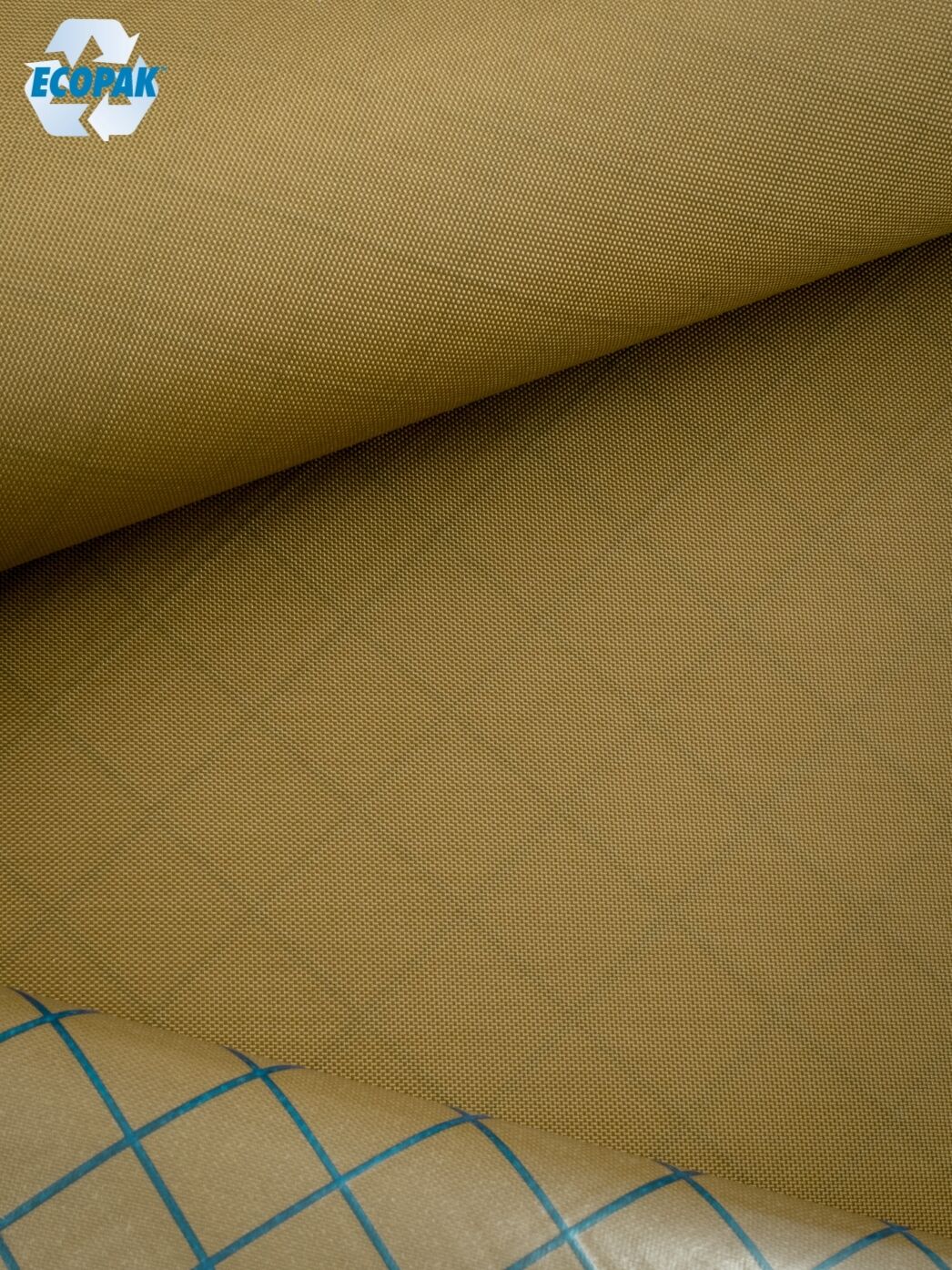

Colour: Outer as options, back is matt-transparent with visible, blue CrossPly-threads
Country of origin: US

Technical specifications

Coating: membran, 0,5mil UV-resistant recycling PET film
Fabric Construction: laminate, taffeta
Weight (g/qm): 146g/qm
Material: Polyester (PES), 200den polyester outer fabric, CrossPly-threads made of polyester, distance app. 17mm
Roll Width (mm): 1420mm
Water Column (mm): 140.000mm
Weight: 145,8g/qm bzw. 4,3oz/sqyd
Tear Strength Warp/Fill (ASTM D2261): 21,2lb / 17,2lb
Hydrostatic head (psi/bar): 200+ / 13,8+
Abrasion (ASTM 3884): 500 cycles
0 Array ( [0] => Array ( [name] => Weight: [value] => 145,8g/qm bzw. 4,3oz/sqyd ) [1] => Array ( [name] => Tear Strength Warp/Fill (ASTM D2261): [value] => 21,2lb / 17,2lb ) [2] => Array ( [name] => Hydrostatic head (psi/bar): [value] => 200+ / 13,8+ ) [3] => Array ( [name] => Abrasion (ASTM 3884): [value] => 500 cycles ) ) 1
Weight: 145,8g/qm bzw. 4,3oz/sqyd
Tear Strength Warp/Fill (ASTM D2261): 21,2lb / 17,2lb
Hydrostatic head (psi/bar): 200+ / 13,8+
Abrasion (ASTM 3884): 500 cycles
