Cordura, 160den, TPU-coated, HF-weldable, 205g/sqm
Article No.: 70415.SW
€26.90/meter
incl. 19 % VAT plus
Please select your variant:
In stock. Deliverable between 2-4 days
Meter
Product information

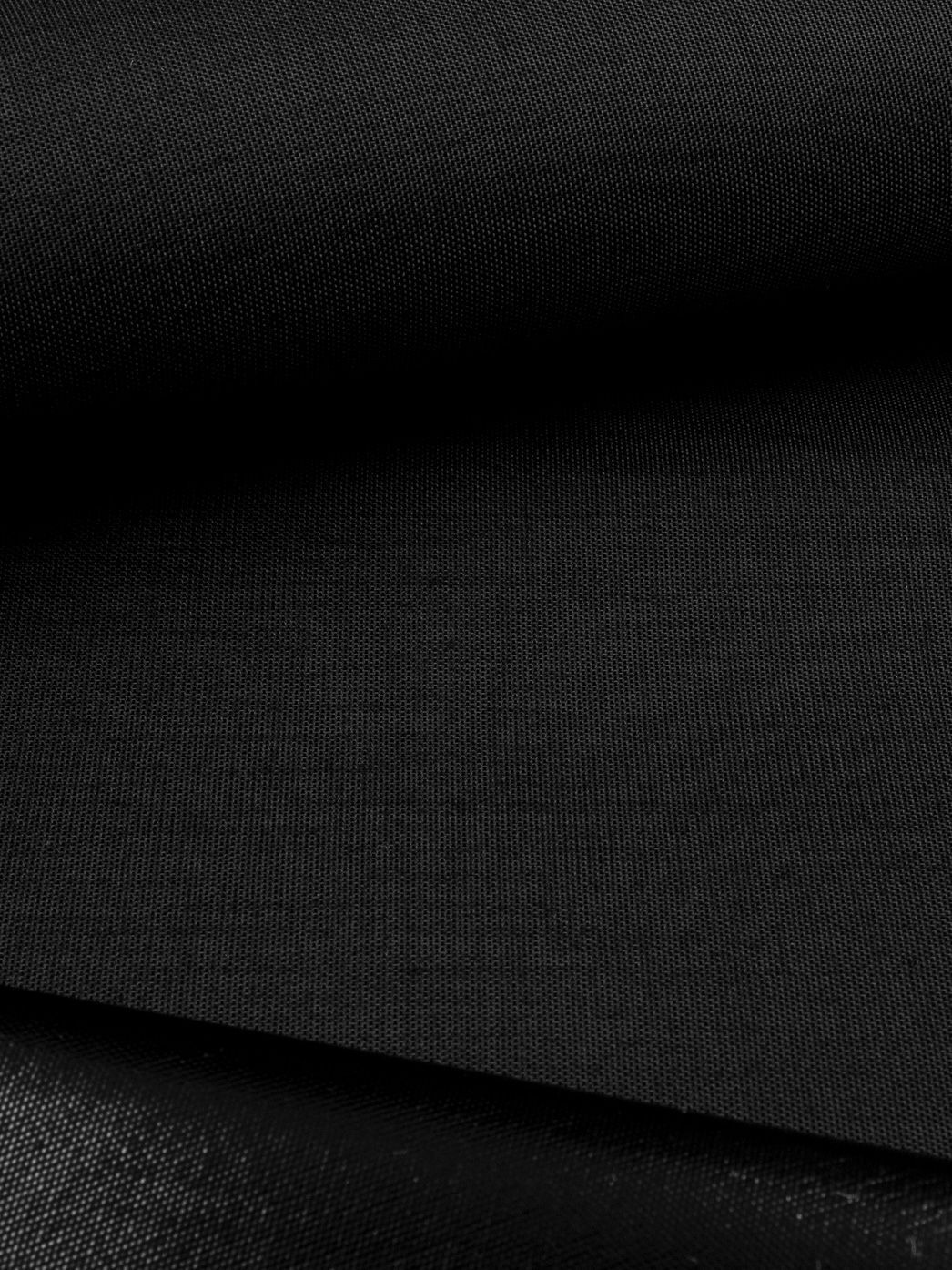

Cordura, 160den, TPU-coated, HF-weldable, 205g/sqm
Extra lightweight version in 160den Cordura with a one sided thin TPU film. Lightweight Cordura is also a perfect choice for light, waterproof applications on bags, packing bags etc. - that's why we now have this thin and fine 160den Cordura with TPU coating in our range. Thanks to the TPU coating, the Cordura is long and reliably water and airtight. Since only a thin film is used, it remains pleasantly flexible. In addition, the TPU coating is UV-resistant, very abrasion-resistant and can be joined by heat (ironing or high-frequency welding). This makes it relatively easy to produce air and watertight seams with very high holding power. With its slightly roughened, textured and therefore pleasant to the touch surface, Cordura is super suitable for bags, backpacks, waterproof storage bags etc.
Short info
Range of Application
Backpack/Bag, Tarp/Cover, Bike Trailer
Properties
Waterproof (over 5000mm), Windproof, Quick Drying, Highly Abrasion-Resistant, Inelastic, FC-Free Impregnation, C0-impregnation (only waterrepellant)
Stock Options
Standard Article, Whole Rolls available from Stock
Country of Origin
Germany
TPU info
TPU - short for "thermoplastic polyurethane" - can be formed and bonded by heat. In textiles, TPU is laminated as a film onto the fabric. The film makes the fabric reliably waterproof and airtight and can be joined coating on coating with an iron or by high-frequency welding. Our Corduras manufactured in Germany use 2 films of different thickness, which can be joined very well.
Processing
More information about processing TPU-coated fabrics can be found in the Tips for processing.
High frequency welding
Due to the low film thickness only limited HF weldable
Technical Informations
Roll Width
1500mm
Weight (g/sqm)
205g/sqm
Yarn Count
160den
Material
Cordura, Nylon, TPU, texturized Polyamide 6.6 Cordura
Coating
TPU, tin, clear TPU coating
Fabric Construction
Taffeta
Certificate
Oekotex, Oeko-Tex 100 class II
Yarn
160den/180dtex
TPU-film-thickness
35µ
Tensile strength in N, warp/weft (DIN EN ISO 1421/1)
≥1450 / ≥900
Tear strength in N, warp/weft (DIN EN ISO 4674/B)
≥30 / ≥25
Elongation in % warp/weft (DIN EN ISO 1421/1)
≥37 / ≥31
Light fastness (DIN EN ISO 105-B02)
≥5
Roll Width
1500mm
Weight (g/sqm)
205g/sqm
Yarn Count
160den
Material
Cordura, Nylon, TPU, texturized Polyamide 6.6 Cordura
Coating
TPU, tin, clear TPU coating
Fabric Construction
Taffeta
Certificate
Oekotex, Oeko-Tex 100 class II
Yarn
160den/180dtex
TPU-film-thickness
35µ
Tensile strength in N, warp/weft (DIN EN ISO 1421/1)
≥1450 / ≥900
Tear strength in N, warp/weft (DIN EN ISO 4674/B)
≥30 / ≥25
Elongation in % warp/weft (DIN EN ISO 1421/1)
≥37 / ≥31
Light fastness (DIN EN ISO 105-B02)
≥5
